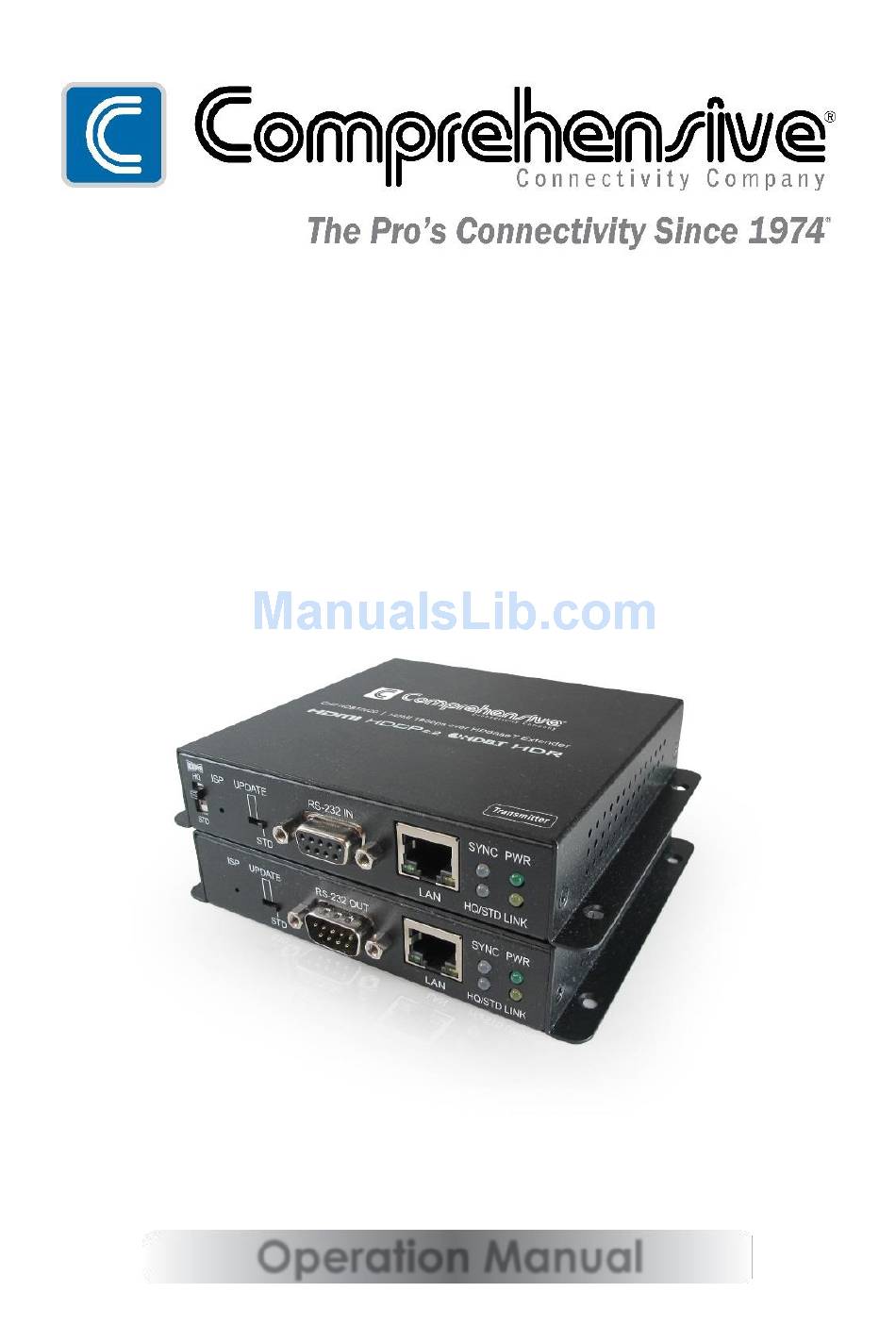

- Page 1 CHE-HDBT2020 Pro AV/IT 4K 18G HDBaseT™ Extender TX/RX Kit up to 330ft Operation Manual...
- Page 2 Comprehensive Connectivity assumes no responsibility for any inaccuracies that may be contained in this document. Comprehensive also makes no commitment to update or to keep current the information contained in this document. Comprehensive reserves the right to make improvements to this document and/or product at any time and without notice.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........2 5. Features............2 6. Operation Controls and Functions ....3 6.1 Transmitter's Front Panel ...... 3 6.2 Transmitter's Rear Panel ....... 4 6.3 Receiver's Front Panel ...... -
Page 5: Introduction
1. INTRODUCTION This transmitter and receiver set is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • The use of “Premium High Speed HDMI” cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel STD/HQ: This switch allows user to select which compression mode to use when AVLC is active. HQ (High Quality) mode uses the least amount of compression and provides the highest possible visual quality (perceptually identical to the original). -
Page 8: Transmitter's Rear Panel
6.2 Transmitter's Rear Panel DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. IR1 BLASTER: Connect to the provided IR Blaster to transmit IR signals to devices within direct line-of-sight of the IR Blaster. IR2 EXTENDER: Connect to the provided IR Extender to extend the IR control range of remotely located devices. -
Page 9: Receiver's Rear Panel
HQ/STD LED: This LED will illuminate whenever the AVLC function is active. A green LED indicates that AVLC is in HQ (High Quality) mode. A red LED indicates that AVLC is in STD (Standard) mode. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 10: Ir Pin Assignment
6.5 IR Pin Assignment IR Extender Infrared Power Ground IR Blaster Power Infrared 6.6 RS-232 Protocol UNIT TERMINAL Pinout Pinout... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Digital Media Player HDMI Input Serial Equipped Wireless Computer Router AVLC UPDATE DC 48V BLASTER EXTENDER CAT5e/6/7 OUT HQ/STD HDMI IN LINK Power Supply Cat.5e/6/7 Cable UPDATE BLASTER EXTENDER CAT5e/6/7 IN HQ/STD HDMI OUT LINK HDMI Serial Controlled Device UHDTV... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI Output Ports 1×Cat.5e/6/7 Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] 1×LAN [RJ-45] IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate Up to 115200bps... -
Page 13: Receiver's Technical Specifications
8.2 Receiver's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×Cat.5e/6/7 Output Ports 1×HDMI Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] 1×LAN [RJ-45] IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate Up to 115200bps Power Supply... -
Page 14: Video Specifications
8.3 Video Specifications HDMI HDMI Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... - Page 15 HDMI HDMI Input Output Supported TV Resolutions (Hz) 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ...
-
Page 16: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length (meter) 8-bit 8-bit 12-bit Input Output Cat. Cable Length (meter) 1080p Cat.5e Cat.6 Cat.7 • Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Consumer Electronics Control Digital Visual Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Infrared Local Area Network LPCM...
