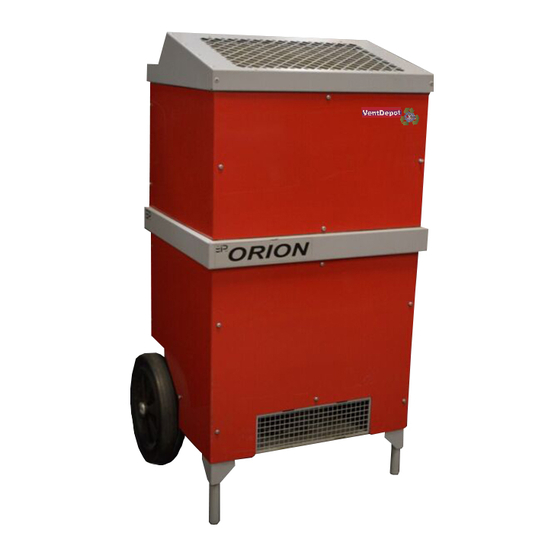

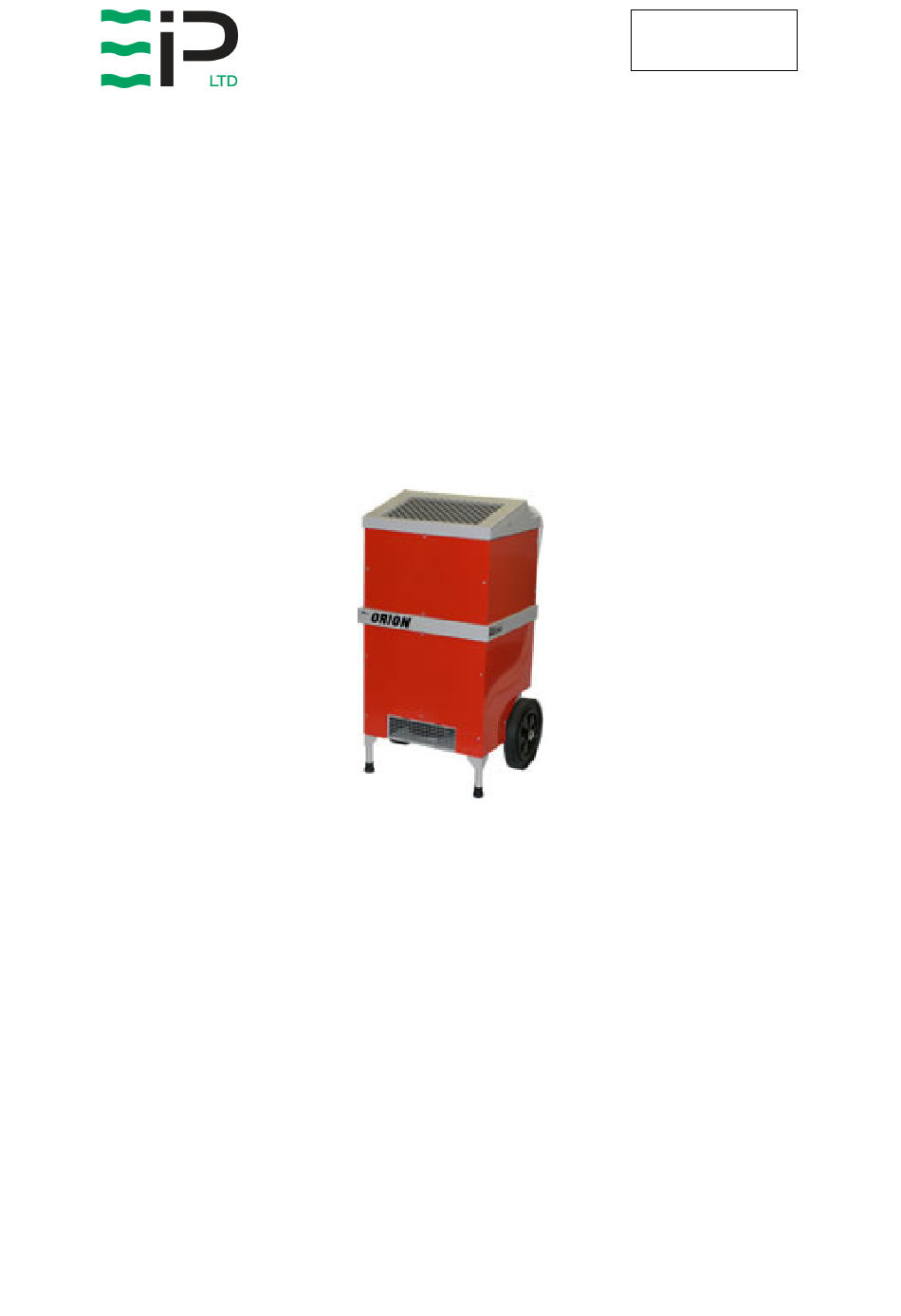

- Page 1 Drawing : - TPC381 Issue : - 1 Date : - 09/01/12 ORION INDUSTRIAL DEHUMIDIFIER USERS MANUAL www.eipl.co.uk Page 1 of 12...
- Page 2 INTRODUCTION This user manual tells you how to use the Orion dehumidifier. Please read it thoroughly before operating the dehumidifier. If you have any questions about the unit please contact our Customer Services Department at the address shown at the back of the section or phone 01388 664400.
-
Page 3: Operation
Continuous circulation of the room air through the dehumidifier unit gradually reduces the relative humidity in the room. The Orion dehumidifier is a robust, compact unit designed to control the humidity in the enclosed space in which it is placed. - Page 4 Drawing : - TPC381 Issue : - 1 Date : - 09/01/12 BASIC STEPS FOR DRYING Ensure that all External doors and windows are closed. Where no doors or windows are fitted, temporarily screen off the openings. POSITIONING For small areas position centrally in the area to be dried, for larger areas such as open plan buildings, offices or factories, a number of dryers may be required, in such cases they should be spaced evenly around the area.
-
Page 5: Switching Off
Drawing : - TPC381 Issue : - 1 Date : - 09/01/12 SWITCHING ON Plug the unit into the power supply and switch on. Set the illuminated Rocker switch to the ON position (On dual voltage units turn the rotary switch to the cored supply voltage). -
Page 6: Special Features
DUAL VOLTAGE MODELS The Orion dehumidifier unit is fitted with a transformer which will allow the unit to operate on either 110 volts or 230 volts 1 ph 50Hz power supply. All electrical components within the dehumidifier are rated for 110 volts, for safety reasons. -
Page 7: Disposal Of Unit
Ebac service manual. SPARES Full spares parts listings and Ebac Service Manuals are available upon request by contacting one of the Ebac Service Centres listed in this manual. OZONE FRIENDLY The gas which is inside the hermetically sealed refrigeration circuit is R22, which is an HCFC. -
Page 8: Specifications
Normal: Rated Extraction at 54ºF 70% RH Condition "This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The refrigeration system is hermetically sealed. The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac Industrial Products Ltd is as follows R134a – 1300 R407c –... - Page 9 Date : - 09/01/12 CONTACTING EBAC CUSTOMER SERVICES If you have nay further queries please contact the Ebac Customer Services Department on 01388 664400 and have the following information at hand:- • Part Number and Serial Number of the machine (located on the rating plate and the front of the machine).
-
Page 10: Limited Warranty
This warranty will cover all parts and labour required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 11 Drawing : - TPC381 Issue : - 1 Date : - 09/01/12 Page 11 of 12...
- Page 12 : - 1 Date : - 09/01/12 UK Head Office American Sales Office German Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc Ebac Industrial Products Ltd St Helens Trading Estate 700 Thimble Shoals Blvd. Miraustra 64 – 66...
