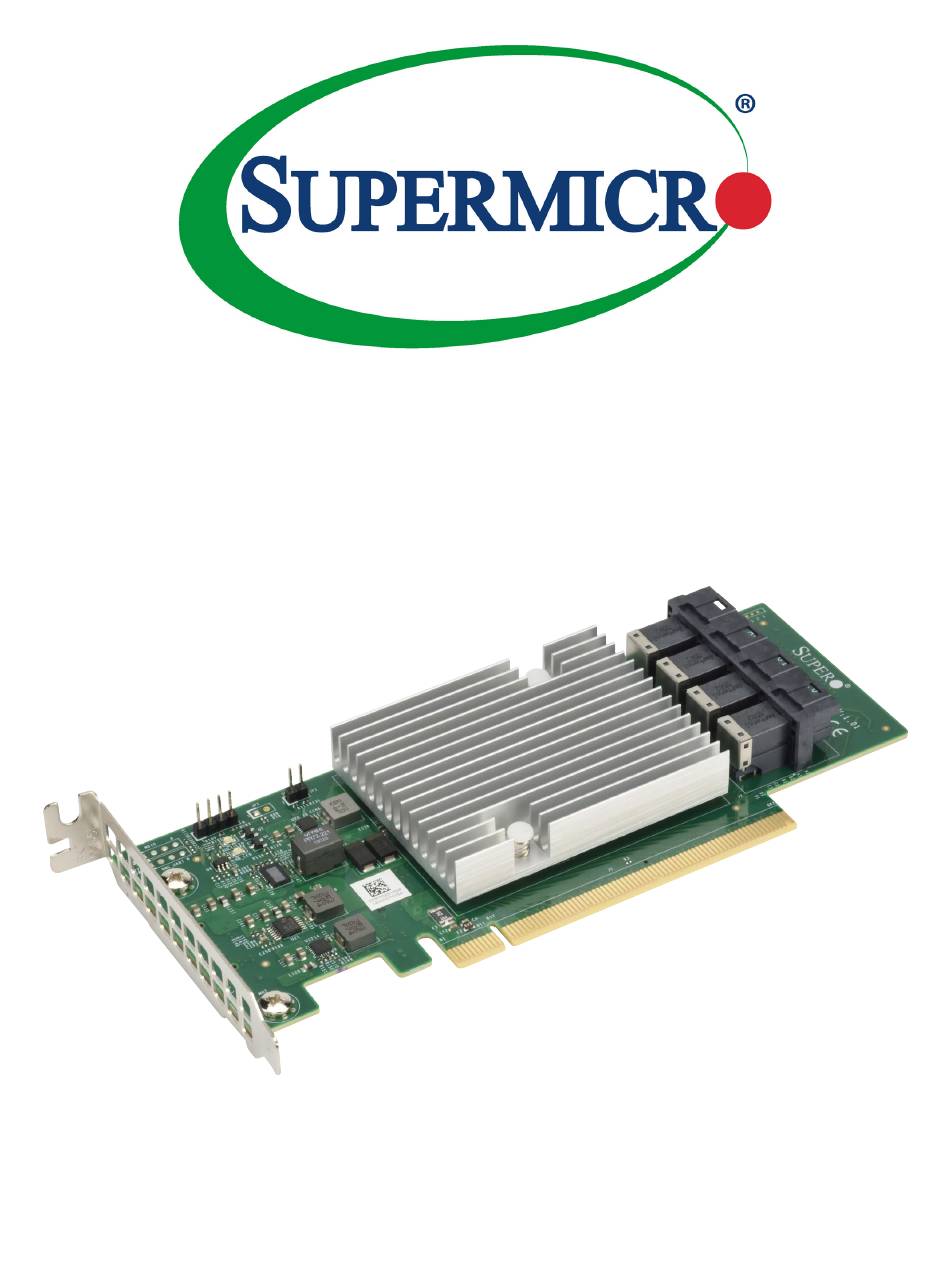

  • Page 1 SAS Controller Card AOC-S3616L-L16 USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 The card you have received may or may not look exactly the same as the graphics shown in this user's guide. This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

  • Page 4: Table Of Contents

    SuperWorkstation AOC-S3616L-L16iT User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................6 1.2 Unpacking the System ......................6 1.3 System Features ........................6 1.4 Connectors and Indicators ....................7 Chapter 2 Installation 2.1 Static-Sensitive Devices .......................8 Precautions .........................8 Unpacking ...........................8 2.2 Installing the Controller Card ....................9...
  • Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Chapter 1 Introduction

    SAS3 ports with four internal min-SAS HD connectors. It utilizes a Broadcom SAS3616 SAS3 controller chip and features a 1.2 GHz processor. The AOC-S3616L-L16iT can provide support for JBOD systems of up to 1024 devices. It is streamlined to meet the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms.

  • Page 7: Connectors And Indicators

    Chapter 1 Introduction 1.4 Connectors and Indicators 1 2 3 Figure 1-1. Layout Components Item Feature Description SAS Connector SAS 0 – 3 SAS Connector SAS 4 – 7 SAS Connector SAS 8 – 11 SAS Connector SAS 12 – 15 MDIO (J7) Header (manufacturer use only) UART0 (J5)

  • Page 8: Chapter 2 Installation

    Controller Card AOC-S3616L-L16iT User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your controller card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 9: Installing The Controller Card

    Chapter 2 Installation 2.2 Installing the Controller Card Depending upon which system configuration is used, a riser card may or may not be required . Installing the Controller Card 1. Power down the system, remove the power cords from the rear of the power supply and remove the system cover.

  • Page 10: Installing The Drivers In Windows

    Controller Card AOC-S3616L-L16iT User's Manual 2.4 Installing the Drivers in Windows Refer to the instructions that came with your controller card and follow the manufacturer's recommended steps for installing the operating system driver. Download the latest drivers from the Supermicro project board at https://www.supermicro.com/wftp/driver/SAS/LSI/3616.
