  • Page 1 AUDIO ANALOGUE Fortissimo CD - DAC CD PLAYER - DA CONVERTER OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev 1.0...
  • Page 3 Amplifier, the Fortissimo CD-DAC perfectly exemplifies our philosophy to design products which can interface different audio systems at the best audio quality. In fact the Fortissimo CD-DAC is not only a CD player but is also provided with all the features making it a high performance digital to analog converter.
  • Page 4 Diretta, Automatica e Custom rispondenti ciascuno alle tre diverse filosofie di scelta della frequenza di campionamento di uscita. Sezione DAC: il Fortissimo CD-DAC usa il DAC PCM1795 della Texas Instruments, un DAC a 32 bit che può arrivare fino a 200KHz di frequenza di campionamento.
  • Page 5 INTRODUCTION AF Group srl, AUDIO ANALOGUE distributor, does not take any responsibilities in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected. Whenever damages to the equipment occur because of fixing and modifications made form non-authorized staff or because of normal deterioration of the system.
  • Page 6 PREMESSA AF Group srl, distributore AUDIO ANALOGUE, non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.

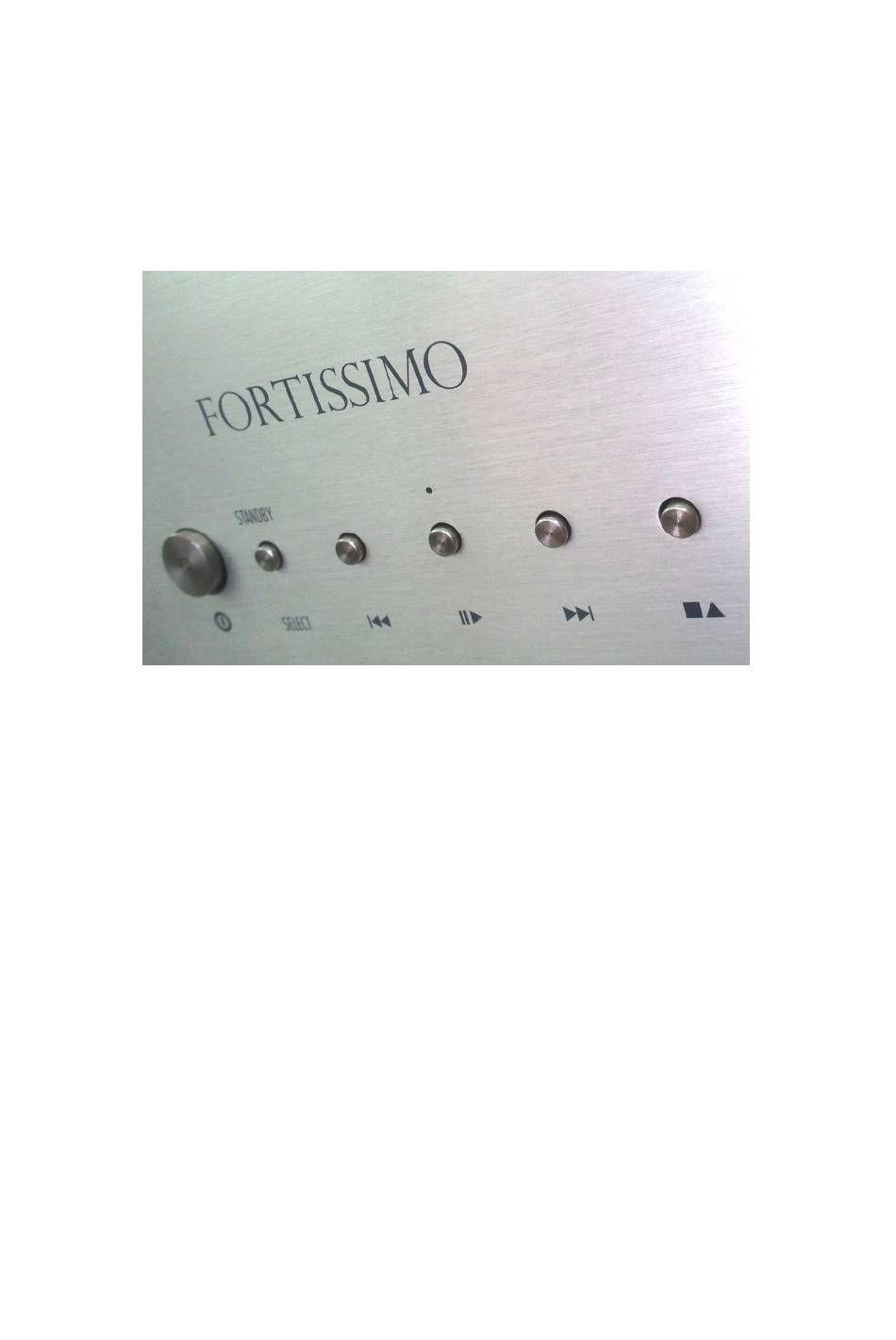

  • Page 7 Front panel Power Switch. When in Off position the main voltage is disconnected from the unit. Select/StandBy: when the unit is in StandBy mode pressing and releasing this switch causes the unit to exit the standby mode and entering normal function mode. When the unit is in normal operation mode pushing and releasing this switch cyclically selects the different audio sources: CD, Coaxial SPDIF input, Optical SPDIF input, USB input.
  • Page 8 Back Panel Unbalanced analog outputs. Balanced right analog output Balanced Left analog output SPDIF optical digital input. SPDIF coaxial digital input. SPDIF coaxial digital output. USB connector Control Trigger Out connector 10) IEC standard power inlet. Connect here the provided power cord. 11) Fuses.
  • Page 9 Remote CD-DAC functions To use the remote with the CD Player - DAC you have to select the CD mode on the remote. For such purpose simply push the switch on the remote. To check the remote mode just shake the remote and see if the CD switch at the top left of the remote lights on.
  • Page 10 Funzioni CD-DAC Per utilizzare il telecomando con il CD-DAC è necessario selezionare sul telecomando la modalità CD. A tal fine premere semplicemente il tasto: . Per verificare che il telecomando sia in modalità CD basta scuotere il telecomando e controllare che il tasto CD in alto a sinistra si illumini. •...
  • Page 11 OFF and then plug it also to the wall outlet. ATTENTION: when connecting or disconnecting the signal cables from the Fortissimo CD-DAC inputs always turn off all the equipment that the audio system is comprised of to avoid ESD damage.
  • Page 12 Connection examples Esempi di connessioni Connection via Trigger and Unbalanced connection. Fortissimo CD-DAC Fortissimo Integrated Amplifier Collegamento con Trigger e Connessione in Fortissimo CD-DAC Fortissimo Intergrated Amplifier Sbilanciato. Right Channel Left Channel settanta settanta Back View Visuale Posteriore Connection via Trigger connection and Balanced...
  • Page 13 Powering up the Fortissimo CD-DAC When you plug the Fortissimo CD-DAC into the power outlet and turn on the power switch on frontal panel the blue led on the front panel turns on showing the unit is connected to the main voltage. Then the unit is in standby mode. To exit the Standby mode and entering the normal operation mode push the Select/Standby switch on the front panel or the StandBy CD switch on the remote.
  • Page 14 Dark Mode (no led lighted) Notes on the RPT (repeat) function The RPT command is accessible by the remote when the Fortissimo CD-DAC is in CD mode. The switch on the remote has different functions according to the functioning state of the CD player: When the CD player is stopped it is possible to choose to repeat a track or the entire disc by pressing the key once or twice.
  • Page 15 Notes on Digital Optical input The Fortissimo CD-DAC digital optical input accepts SPDIF digital signals with 16-24 bit and with a sample frequency until 192KHz. If the digital audio signal is correctly working the Blue led indicating the unlock condition is turned off. Instead if there is a unlock problem with the digital signal or there is no signal at all, the blue front led will be blinking.
  • Page 16 Notes on the USB connection The USB connection permits you to connect the Hi-Fi system to the PC or MAC. In this way the PC/MAC sees the Fortissimo CD-DAC as its audio board and everything which is played on the PC/MAC is reproduced by the Fortissimo CD-DAC. This opens up a wide spread of possibilities which we think will be soon appreciated by every, also “old style”, audiophile:...
  • Page 17 Note sulla connessione USB La connessione USB permette di collegare l’impianto Hi-Fi al PC o al MAC. In questo modo il PC/MAC vede il Fortissimo CD-DAC come la sua scheda audio. Pertanto, qualunque segnale audio sul PC/MAC, verrà riprodotto dal Fortissimo CD-DAC. Questo approccio apre nuove e innumerevoli possibilità, che saranno sicuramente apprezzate anche dagli audiofili “vecchio stile”.
  • Page 18 Nota: Per suggerimenti sull’utilizzo del Fortissimo CD-DAC per informazioni circa le risorse disponibili per scaricare musica gratuitamente e legalmente e per avere informazioni sull’uso di software gratuiti per la riproduzione di musica su PC si prega di consultare il sito Audio Analogue: www.audioanalogue.com...
  • Page 19 Nota sulle modalità di funzionamento dell'USB Il Fortissimo Cd-DAC può riprodurre lo streaming audio ricevuto dall'USB in due modalità differenti: adattiva e asincrona. Queste due modalità differiscono per il modo nel quale viene ricavato il clock. Per riprodurre i dati audio che vengono trasmessi dal PC/MAC è necessario estrarre i dati dallo streaming e fornirli al convertitore digitale analogico insieme ad un opportuno clock.
  • Page 20 Therefore we have implemented three different operation mode for the Fortissimo CD - DAC by which the customer can decide which criterion to follow. In fact the Fortissimo CD-DAC can work in "DIRECT" mode, "AUTO" mode and "Custom" mode.

  • Page 21: Working Modes

    Working modes The Fortissimo CD-DAC is not just a Cd Player but is also a DAC (Digital to analog converter). Therefore the unit can work in two different modes: CD MODE and DAC MODE. When the Fortissimo CD-DAC is working in CD Mode it performs the typical CD Player functions while when in DAC mode the unit becomes a DAC with three different digital inputs: a coaxial SPDIF input, an optical digital input and a USB input.
  • Page 22 Nota: In DAC MODE nel riquadro principale del display viene visualizzato il messaggio “READY” quando il segnale digitale è corretto. Viene invece visualizzato il messaggio “NOT READY” se il segnale digitale è corrotto da qualche errore (come nel caso in cui il segnale digitale non sia SPDIF o nel caso si verifichi una condizione di unlock oppure se il segnale digitale è...
  • Page 23 It permits to exit the Menu Setup and to return the normal operation mode of the unit. Permette di uscire dal Menu Setup e di ritornare alle condizioni di normale funzionamento. Frequency Mode Sub Menu / Sotto Menu Frequency Mode Entering this submenu you can choose the sample output frequency selection criterion for the input selected at the time you entered the setup.
  • Page 24 Pressing “OK” exits the submenu and comes back to the main menu setup without memorizing any value. Premendo “OK” si esce dal sottomenu e si ritorna al menu di setup principale senza memorizzare alcun settaggio. SELECT OUTPUT Sub Menu / Sotto Menu SELECT OUTPUT Entering this submenu you can choose which outputs enable.
  • Page 25 normale funzionamento dell'apparecchio. ▲ ▼ ◄ Premere sul telecomando per ritornare al livello precedente del menu e usare i tasti cursore telecomando per scorrere le varie opzioni. Pressing “OK” exits the submenu and comes back to the main menu setup without memorizing any values. Premendo “OK”...
  • Page 26 Pressing “OK” exits the submenu and comes back to the main menu setup without memorizing any value. Premendo “OK” si esce dal sottomenu e si ritorna al menu di setup principale senza memorizzare alcun parametro. DEFAULT SET Sub Menu / Sotto Menu DEFAULT SET Entering this submenu you can load the default unit settings.
  • Page 27 Analog Balanced Stereo, Analog Outputs Unbalanced stereo, Headphones output, SPDIF COAXIAL OUTPUT Trigger Out 12V DC Control Control connection ASC100 Audio Analogue multiproduct Remote remote Display Brightness Mode: High, Low, dark-mode Analog Balanced (XLR) output voltage Differential signal, 0dBFS 4.5Vrms...

  • Page 28: Troubleshooting

    The unit is on but there is no Contact your Audio Analogue retailer for fuse check sound and substitution If the suggested remedies should not work or the problem is not shown in the list above, please contact your local Audio Analogue retailer. RICERCA GUASTI Sintomo Causa Rimedio Togliere l’apparecchio dallo stato di stand-by...
  • Page 29 WARNING! All of our CD players may not be able to read some specific CD’s manufactured with a unique protection system against copying. If in doubt, please try to read the CD using a PC CD-ROM drive. When the CD-ROM drive is incapable of accessing the tracks on the CD, please do not play the CD in question with the our CD players.
  • Page 30 If this product is used for business purposes and you want to discard it: Attenzione: il dispositivo è contrassegnato da questo Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and simbolo,...
  • Page 32 Audio Analogue Distributed by: AF GROUP srl www.audioanalogue.com info@afgroupsrl.com...
