Goodman MBR Manual

Product Features
• Direct drive, multi-speed PSC blower motor
• Cooling or heat pump applications:
upflow, downflow, and horizontal
• Blower section usable as an electric furnace
• Control board includes a fan delay in the cooling
mode and is isolated from the air stream
• Intended for use with CAPF/
CHPF cased evaporator coils
• CAPF/CHPF coils are equipped
with a check flowrater
• AHRI certified; ETL listed
SS-GMBR
• Painted, galvanized steel cabinet
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Foil-faced insulation is glued in place and covers
the entire blower case to reduce operating
sound and cabinet condensation
• Galvanized, leather grain-embossed finish
• 3 kW - 21 kW electric heat kits available
• Cabinet air leakage less than 2% at 1.0 inch H₂0 when
tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂0
when tested in accordance with ASHRE standard 193
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty, online
registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
www.goodmanmfg.com

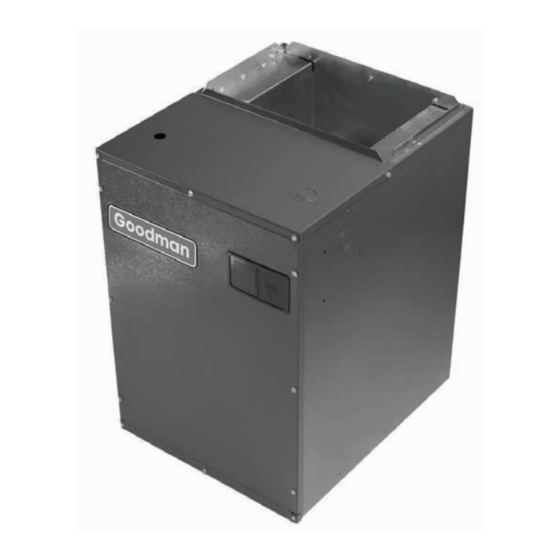

Multi-Position, Multi-Speed
Modular Blower
With PSC Motor
Contents
Air Handler Nomenclature .................... 2
Heater Kit Nomenclature ...................... 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Data ........................................... 5
Heat Kit Data .......................................... 6
Wiring Diagram ...................................... 7
MBR
11/15
Supersedes 9/15
