Pneumercator MODBUS RTU RS-485 Instruction Manual page 4

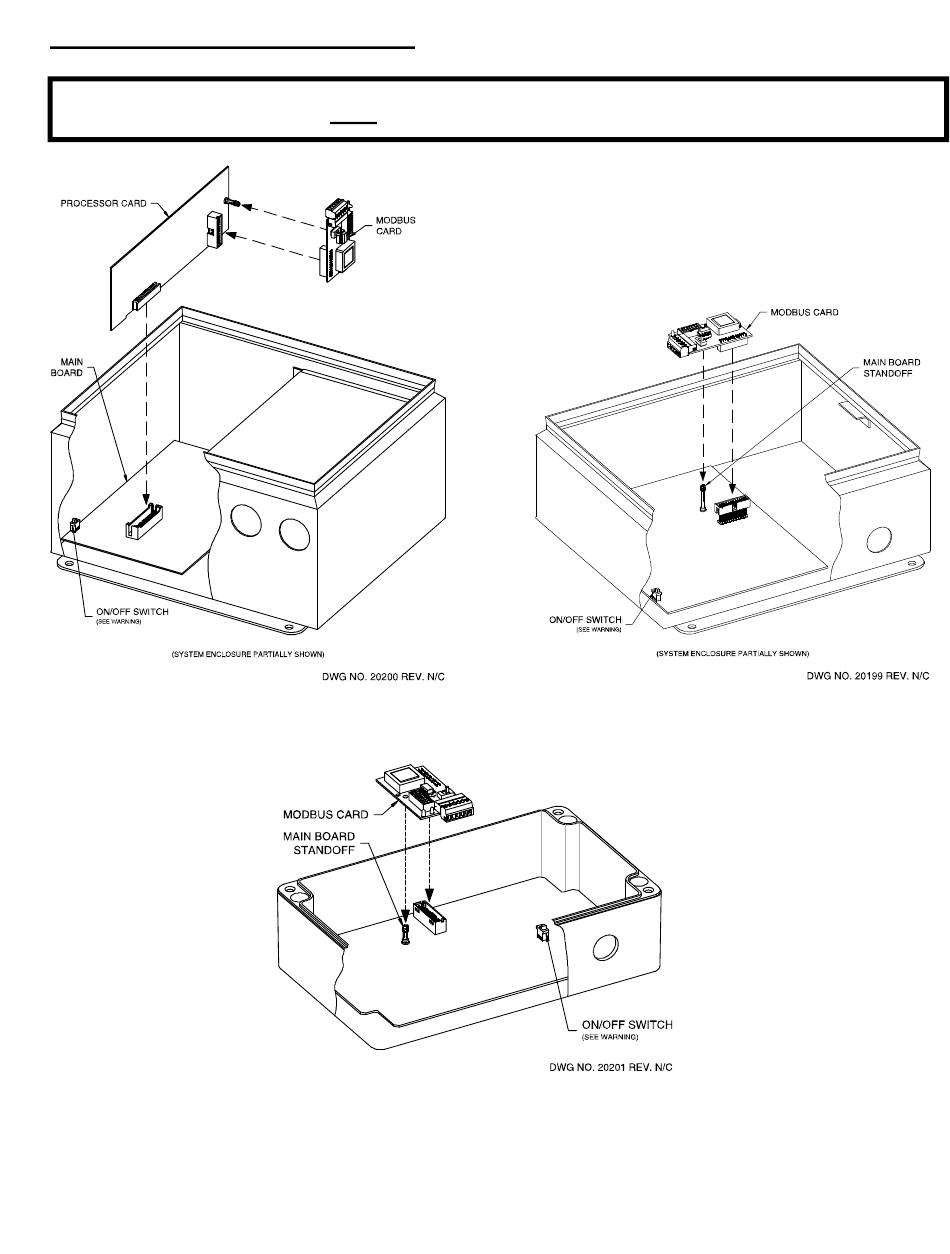

1.2 Installation of MODBUS Card
WARNING! Turn power OFF before installing or removing any circuit cards.
PROCESSOR CARD
MAIN
BOARD
ON/OFF SWITCH
(SEE WARNING)
(SYSTEM ENCLOSURE PARTIALLY SHOWN)
TMS3000/TMS4000
MODBUS RTU Instruction Manual - 2017-11-02.docx
MODBUS
CARD
DWG NO. 20200 REV. N/C
MODBUS CARD
MAIN BOARD
STANDOFF
TMS1000
Page 4 of 14
ON/OFF SWITCH
(SEE WARNING)
(SYSTEM ENCLOSURE PARTIALLY SHOWN)
TMS2000(W)/LC2000
ON/OFF SWITCH
(SEE WARNING)
DWG NO. 20201 REV. N/C
MODBUS CARD
MAIN BOARD
STANDOFF
DWG NO. 20199 REV. N/C
November 2, 2017
