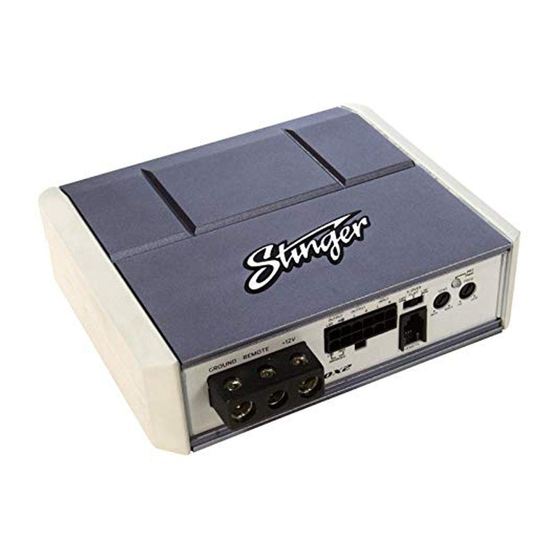

Stinger SPX350X2 Owner's Manual
Hide thumbs Also See for SPX350X2:

Advertisement

Features
• RCA or High Level Signal Input
• Weather Resistant for Marine and Power Sports
• Ultra Compact Chassis
• High and Low Pass Crossovers
• Direct Insert Power Terminals
• Remote Volume Control with Mute Included
• Efficient Class D Topology
SPX350X2 / SPX700X4
Manual de Amplificador
Características
• Difusión directa con Bluetooth y/o Señal de Entrada RCA
• Resistencia climática para la marina y deportes de poder
• Ultra compacto y Topología eficiente tipo D
• Terminales de poder de inserción directa
• Control remoto de volumen y silenciado incluido
• Certificado de Nacimiento de puerto de alimentación
© 2017 Stinger • www.stingerelectronics.com
Amplifier Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX350X2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stinger SPX350X2

  • Page 1 • High and Low Pass Crossovers • Control remoto de volumen y silenciado incluido • Direct Insert Power Terminals • Certificado de Nacimiento de puerto de alimentación • Remote Volume Control with Mute Included • Efficient Class D Topology © 2017 Stinger • www.stingerelectronics.com...
  • Page 2: Specifications

    Amplifier Owner’s Manual Specifications SPX350X2 2 CHANNEL SPECIFICATIONS Frequency Response: ± 1dB from 20Hz to 20kHz RMS Power 14.4Vdc ≤1% THD 125 x 2 @ 4 ohm Stereo Signal to Noise Ratio: >110dB 175 x 2 @ 2 ohm Stereo...
  • Page 3: Channel Power Amplifier

    Y-connectors to drive 4 channels with only 2 channels of signal available. input auto on feature. This must be connected to the negative terminal of the car’s battery or bolted to a clean, unpainted part of the chassis of the vehicle. © 2018 Stinger • www.stingerelectronics.com...
  • Page 4: System Tuning

    To activate the mute function, press the volume control knob headunits / media devices this will be inward until it clicks. approximately 7/8 of maximum volume). Use a very clear and dynamic recording. To return to previous output level; press the control knob again. © 2018 Stinger • www.stingerelectronics.com...
  • Page 5: Troubleshooting

    WARRANTY: LIMITED WARRANTY ON AMPLIFIERS Stinger warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Stinger dealer in the United States of America only.
  • Page 6 Dual 4 Ohm Subwoofers BRIDGED All voice coils are wired in parallel and wired to each channel for a 2 Ohm load on each channel Single 4 Ohm Subwoofer SPX350X2 Single 4 Ohm Subwoofer SPX700X4 © 2018 Stinger • www.stingerelectronics.com...
  • Page 7 Amplifier Owner’s Manual Stinger is a Power Brand of AAMP Global 15500 Clearwater, Florida 33760 P: 888-228-5560 support@stingerelectronics.com www.stingerelectronics.com Copyright © 2018 Designed and Engineered in the USA © 2018 Stinger • www.stingerelectronics.com...

This manual is also suitable for:

Spx700x4
