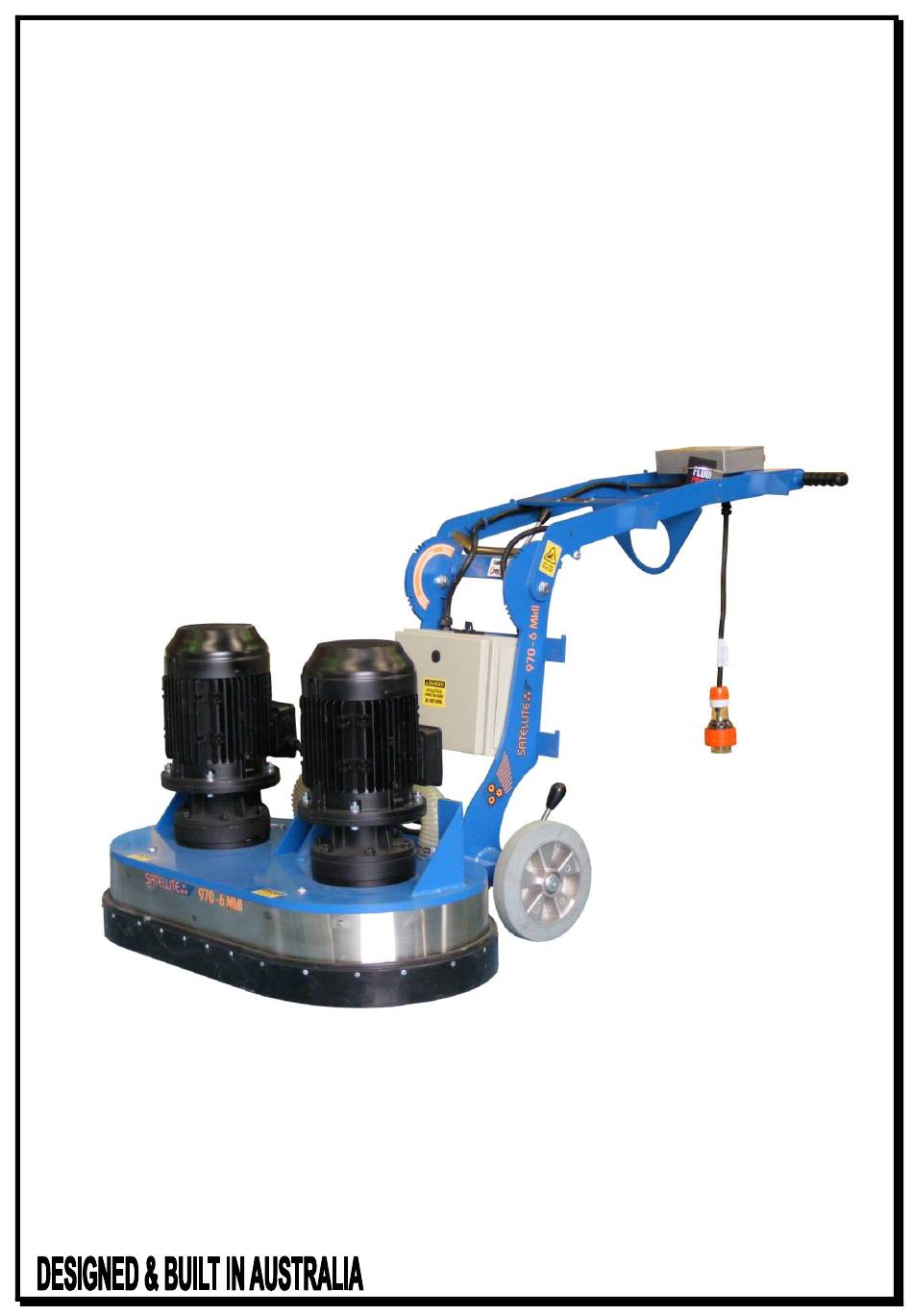

SATELLITE 970-6 MkII
SAFETY & OPERATORS MANUAL AND
PARTS LISTING
22-03-11
Machine Weight Is 360kg including 2 X 15kg weights and 6 disks
FLOOREX PRODUCTS
1800 FLOOREX
1800 356 673

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATELLITE 970-6 MkII and is the answer not in the manual?

Questions and answers

Summary of Contents for floorex SATELLITE 970-6 MkII

  • Page 1 SATELLITE 970-6 MkII SAFETY & OPERATORS MANUAL AND PARTS LISTING 22-03-11 Machine Weight Is 360kg including 2 X 15kg weights and 6 disks FLOOREX PRODUCTS 1800 FLOOREX 1800 356 673...
  • Page 2: Table Of Contents

    SATELLITE 970-6 MkII TABLE OF CONTENTS PAGE 1. TABLE OF CONTENTS PAGE 2. SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS CONT… PAGE 3. PAGE 4. OPERATING INSTRUCTIONS PAGE 5. AXLE HEIGHT ADJUSTMENT PAGE 6. OPERATING INSTRUCTIONS CONT... PAGE 7. OPERATING INSTRUCTIONS CONT... PAGE 8.
  • Page 3: Safety Instructions

    SATELLITE 970-6 MkII SAFETY INSTRUCTIONS Read and understand the instructions on the machine and in this manual and engine manual (if applicable). Different models may have different parts and controls. Equipment should only be operated by trained personnel, in good physical condition and mental health (not fatigued).
  • Page 4: Safety Instructions Cont

    SATELLITE 970-6 MkII SAFETY INSTRUCTIONS Do not modify machine in any way. Only use genuine SATELLITE parts and accessories. Repairs should be performed by qualified persons only. Ensure parts have stopped moving and disconnect power or spark plug when servicing or changing blades or accessories.
  • Page 5: Operating Instructions

    SATELLITE 970-6 MkII OPERATING INSTRUCTIONS Wear clothes suitable for the job and for the work place including, safety shoes, hard hat, hearing protection, non-fogging vented safety goggles, and dust respirator suitable for dust. WARNING! POISONOUS EXHAUST GASES. Do not operate petrol powered equipment without adequate ventilation.
  • Page 6: Axle Height Adjustment

    SATELLITE 970-6 MkII AXLE HEIGHT ADJUSTMENT… 1. Axle Height should be set so that the level eye on the grinder is centered when the machine is on a flat floor (not on a slope) 1800 FLOOREX 1800 356 673 PAGE...
  • Page 7: Operating Instructions Cont

    Alternatively use 4mm² cable for up to 30 meters. Connect a suitable dust extractor to the machine via a 75mm flexible hose. The machine is also designed to take the standard FLOOREX 50mm hose ends to make connection of dust extractors easy and hassle free.
  • Page 8: Operating Instructions Cont

    After a few minutes of grinding check the wear of the diamond tooling. This will pay handsomely if the diamonds are wearing out fast due to soft concrete / abrasive concrete. FLOOREX has a wide range of diamonds to suit every need. See page for a guide.
  • Page 9: Tooling Removal

    SATELLITE 970-6 MkII TOOLING REMOVAL To remove tooling from the magnetic plugs, Tilt the machine as per instructions in the operating instructions and grasp hold of the diamond disk and give it a sharp pull away from the main black disk.
  • Page 10: Weights

    SATELLITE 970-6 MkII WEIGHTS 1. Weights are there to increase or decrease the pressure of the diamonds on the surface and they can be used to ease the pressure needed to tilt the machine over onto its back 2. The general rule is start with the weights on the bottom rung near the wheels 3.
  • Page 11: Electrical Safety

    SATELLITE 970-6 MkII ELECTRICAL SAFETY All electrical maintenance and repairs to be carried out by qualified persons only. CAUTION - Line terminals may be alive when main switch is in the off position. Disconnect all power at source before performing any maintenance or repairs.
  • Page 12: Electrical Safety Cont

    SATELLITE 970-6 MkII ELECTRICAL SAFETY CONT… When connecting the power to the machine, check the condition of all power leads and cables on or used in conjunction with the machine. DO NOT USE it if there are any fault(s) cuts; wear marks, Bare wires out of plugs or sockets, etc…Get qualified persons to...
  • Page 13: Problem Solving

    SATELLITE 970-6 MkII PROBLEM SOLVING Diamond Grinding has many variables. When you understand some of these, you can solve a lot of problems without a lot of bother and expense. PROBLEM CAUSE REMEDY WHAT IT IS DOING? Machine will not...
  • Page 14: Diamond Tooling Selection Guide

    SATELLITE 970-6 MkII DIAMOND TOOLING SELECTION GUIDE DIAMOND PLUGS CONTRACTOR RANGE 2PDB 30/40 Soft Bond – Hard Concrete Only YELLOW 4PDB 30/40 Hard Bond –Soft/Medium Concrete, for production grinding GREEN 4PDB 16 Hard Bond – Med Concrete – Coarse Grade, fast grinding, epoxies etc.
  • Page 15 SATELLITE 970-6 MkII DIAMOND TOOLING SELECTION GUIDE 5” DIAMOND CUP WHEEL 5” CONTRACTOR RANGE BCG 420 DTY 5” Diamond Wheel – 9 Segment – Hard Concrete, coating removal YELLOW BCG 425 DTS 5” Diamond Wheel – 9 Segment – Coarse Grade 25#...
  • Page 16: Wiring Digram

    SATELLITE 970-6 MkII WIRING DIGRAM 1800 FLOOREX 1800 356 673 PAGE...
  • Page 17: Parts Listing

    SATELLITE 970-6 MkII PARTS LISTING ADD PREFIX SAT-9706 TO ALL PART NUMBERS Part No. DESCRIPTION Motor 4.0kw 3~ Transmission 6:1 Base Main Chassis Grease Nipple Stainless Shroud Bolt Shroud S/S 190mm Poly urethane shroud Handle Main Handle Grip Electrical Box...
