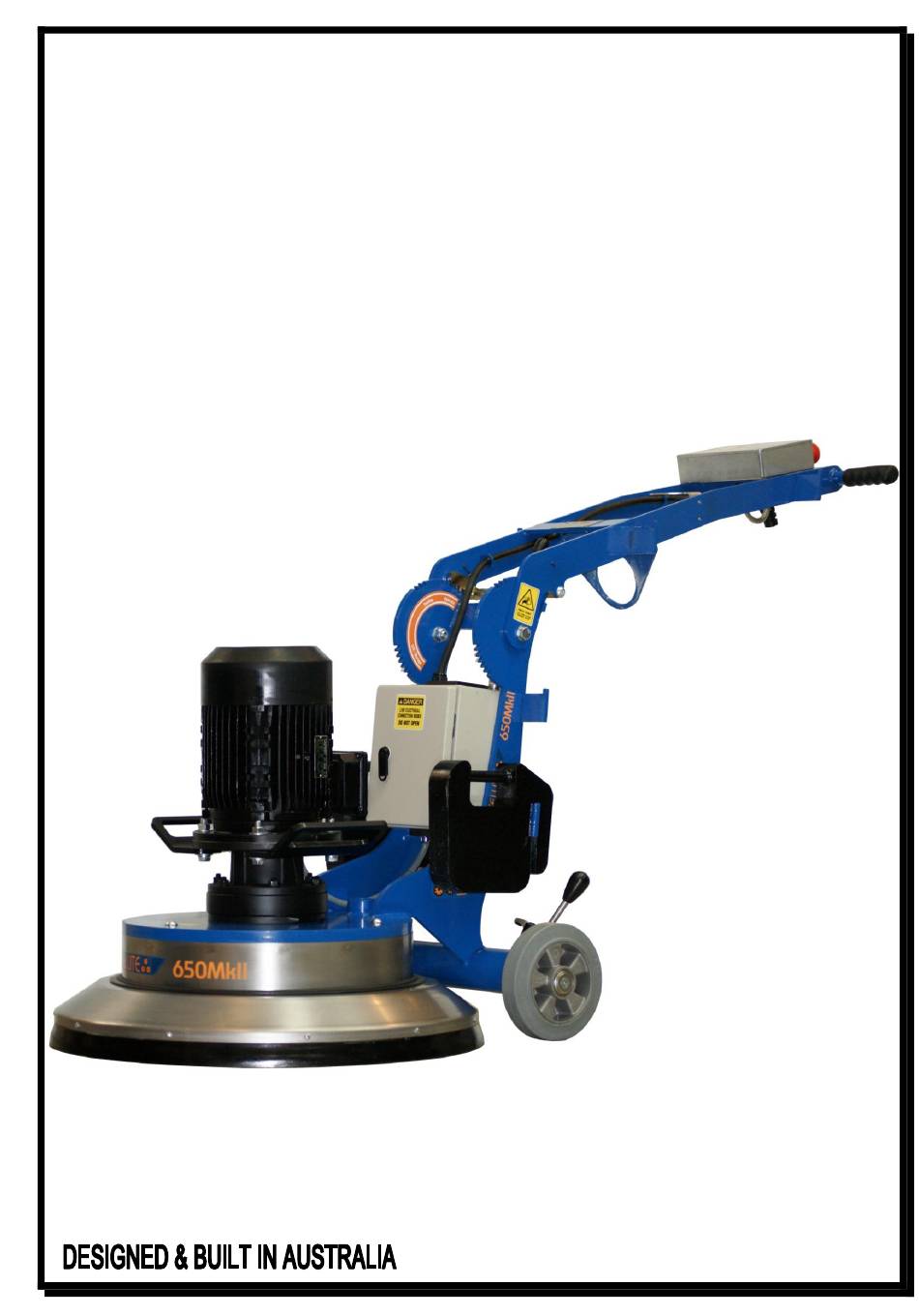

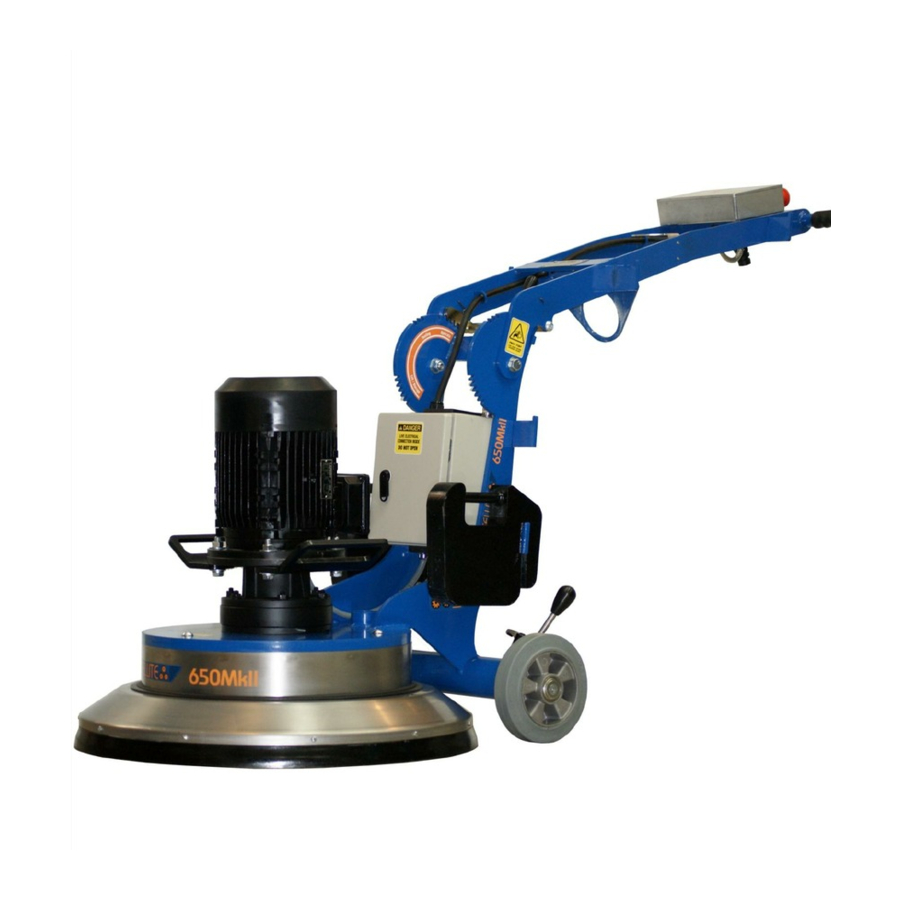

- Page 1 SATELLITE 650 MkII SAFETY & OPERATORS MANUAL & PARTS LISTING 20-11-09...
-
Page 2: Table Of Contents
SATELLITE 650 MkII Table of contents PAGE 1. Table of contents PAGE 2. Safety instructions PAGE 3. Operating instructions PAGE 4. Operating instructions cont... PAGE 5. Tooling Removal & Magnetic Plugs PAGE 6. Axle height adjustment PAGE 7. Electrical safety PAGE 8. -
Page 3: Safety Instructions
The SATELLITE 650 MkII has different positions in which the handle can be locked into. These are described in this manual as ‘OPERATE’, ‘TOOLING REMOVAL’ and LIFT/STORAGE’. See the at the end of this manual for diagrams of these positions. -
Page 4: Operating Instructions
The SATELLITE 650 MkII has axle height adjustment to make it easy to adjust the machine so it doesn’t cause fatigue on the operator. To set axle height, adjust the axle height leaver to the vertical position, or midpoint. This is a good starting point. -
Page 5: Operating Instructions Cont
Operating Instructions cont… Hold the handles firmly and switch the SATELLITE 650 MkII on by pushing the green button. The controls on the SAT650 MkII include an over load device. It is there to protect the controls and motor from irreparable damage. -
Page 6: Tooling Removal & Magnetic Plugs
SATELLITE 650 MkII Tooling Removal & Magnetic Plugs To remove tooling from the magnetic plugs, Tilt the machine as per instructions in the operating instructions and grasp hold of the diamond disk and give it a sharp pull away from the main black disk. -
Page 7: Axle Height Adjustment
SATELLITE 650 MkII Axle height adjustment This machine is designed to operate with the wheels in contact with the floor at all times. Do not operate with wheels off the floor. The axle lever must be set as far back (toward operator) as possible without creating excess force on the operator during operation. -
Page 8: Electrical Safety
SATELLITE 650 MkII Electrical safety All electrical maintenance and repairs are to be carried out by qualified persons only. CAUTION - Line terminals may be alive when main switch is in the off position. Disconnect the machine completely before performing any maintenance or repairs. -
Page 9: Problem Solving
SATELLITE 650 MkII Problem solving Diamond Grinding has many variables. When you understand some of these, you can solve a lot of problems without a lot of bother and expense. PROBLEM CAUSE REMEDY EXPLAINATION No power is present at Check the power is present Using another tool confirms power is cable end. -
Page 10: Diamond Plugs
SATELLITE 650 MkII Diamond plugs PART No. DESCRIPTION GRIT COLOUR CONTRACTOR RANGE 2PDB 30/40 Soft Bond – Hard Concrete Only 30/40 50mm YELLOW 4PDB 30/40 Hard Bond – Soft/Medium Concrete, for production grinding 30/40 50mm GREEN 4PDB 16 Hard Bond – Med Concrete – Coarse Grade, fast grinding, epoxies etc. -
Page 11: Satellite Disks
SATELLITE 650 MkII 10” Satellite disks PART No. DESCRIPTION GRIT COLOUR 10” PREMIUM RANGE – LONG LASTING CG 10BLT-99 10" Super Premium - Extra Long Life, soft/med concrete BLUE CG 10BRT-60 10" Super Premium - Extra Soft matrix for very hard concrete... -
Page 12: Satellite Disks
SATELLITE 650 MkII 5” Satellite disks PART No. DESCRIPTION GRIT COLOUR 5” CONTRACTOR RANGE BCG 420 DTY 5” Diamond Wheel – 9 Segment – Hard Concrete, coating removal 30/60 YELLOW BCG 425 DTS 5” Diamond Wheel – 9 Segment – Coarse Grade 25#... -
Page 13: Main Parts Breakdown
SATELLITE 650 MkII Main parts breakdown 1800 FLOOREX Page 12 1800 356 673... -
Page 14: Handle Breakdown
SATELLITE 650 MkII Handle breakdown 1800 FLOOREX Page 13 1800 356 673... -
Page 15: Disk Breakdown
SATELLITE 650 MkII Disk breakdown 1800 FLOOREX Page 14 1800 356 673... -
Page 16: Parts Listing
SATELLITE 650 MkII Parts Listing Item QTY Part No. Description SAT-650201 Motor 4kw SAT-650202 Transmission 11:1 SAT-650203 Main Chassis SAT-650204 Handle SAT-650205 Shroud upper SAT-650206 Axle removable SAT-650207 Shroud seal SAT-650208 Shroud floating SAT-650209 Shroud screw SAT-650210 Shroud polyurethane SAT-650211... -
Page 17: Parts Listing
SATELLITE 650 MkII Parts Listing Item QTY Part No. Description SAT-650227 Motor terminal box SAT-650228 Drive Hub SAT-650229 Coupling Rubber SAT-650230 Torque rubber SAT-650231 Coupling rubber bolt SAT-650232 Taper insert retaining ring SAT-650233 Taper insert incl. No. 32 SAT-650234 Magnetic plug MkII incl. No.35... -
Page 18: Wiring Diagram
SATELLITE 650 MkII Wiring Diagram 1800 FLOOREX Page 17 1800 356 673...
