Summary of Contents for Samsung SCH-LC11R
- Page 1 User manual SCH-LC11R...
-

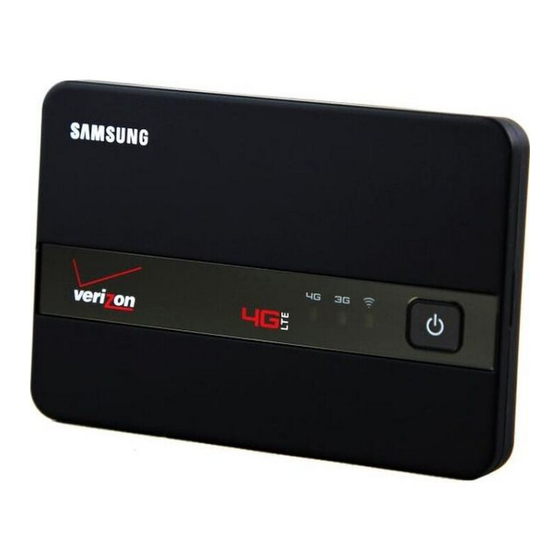

Page 2: Device Layout
User manual The items supplied with your device may vary depending on the software and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Samsung dealer. Device layout The front of your device includes the following keys and features:... -
Page 3: Led Indicators
LED indicators Your device’s LED indicators consist of four LEDs: LED Display LED 1 LTE Network Status (including the signal strength) LED 2 1x / EVDO Network Status (including the signal strength) LED 3 WiFi & Internet Status LED 4 Power &... - Page 4 Power & Charging Status Indication LED 1 LED 2 LED 3 LED 4 Comments Scenario Power Off / No ㅡ No light [X] [X] [X] [X] Battery ㅡ LED4 : Blue - Solid ...
- Page 5 LTE Network Service Indication LED 1 LED 2 LED 3 LED 4 Scenario Comments ㅡ LED1 : Blue - Solid LTE_Strong / Modest RF ㅡ Strong RF signals, meaning to [B] [B] [X] [X]...
- Page 6 1x / EVDO Network Service Indication LED 1 LED 2 LED 3 LED 4 Scenario Comments ㅡ LED2 : Blue - Solid 1x / EVDO_Strong / ㅡ Strong RF signals, meaning to [B] [X] [B]...
- Page 7 WiFi & Internet Status Indication LED 1 LED 2 LED 3 LED 4 Scenario Comments WiFi Standby ㅡ LED3 : Green - Solid [B] (No WLAN connection & No [X] [X] [G] WiFi connected) WiFi Connected ...
- Page 8 Combined Indication LED 1 LED 2 LED 3 LED 4 Scenario Comments ㅡ LED1, LED2, LED3 : Blue - OTADM Downloading and [B] Updating Blinking Sequentially → → → → - Blinking Blinking Blinking -...
-
Page 9: Install The Sim Card And Battery
assembling and preparing your mobile device Get started by assembling and setting up your mobile device for its first use. Install the SIM card and battery When you subscribe to a cellular service, you will receive a Subscriber Identity Module, or SIM card, with subscription details, such as your personal identification number (PIN) and optional services. -
Page 10: Connecting Your Device
6. Close the cover to the multifunction jack. About the low battery indicator When your battery is low, the device will change its LED color from green to yellowr. If the battery level becomes too low, it will show red colors and the device will automatically power off. Recharge your battery to continue using your device. Connecting your device Getting Connected With your new mobile hotspot and your computer, a wireless Internet connection can always be at your fingertips. -
Page 11: Health And Safety Information
Health and safety information Operating Environment Exposure to Radio Frequency (RF) Signals requires wireless devices to comply with a safety limit For typical operations, this model device has been of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure tested and meets the FCC exposure guidelines. limit incorporates a substantial margin of safety to give Remember to follow any special regulations in force in additional protection to the public and to account for... -
Page 12: Fcc Notice And Cautions
Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division. Cautions Changes or modifications made in the radio device, not expressly approved by Samsung, will void the user’s authority to operate the equipment. The use of any unauthorized accessories may be dangerous and void the device warranty if said accessories cause damage or a defect to the device.
