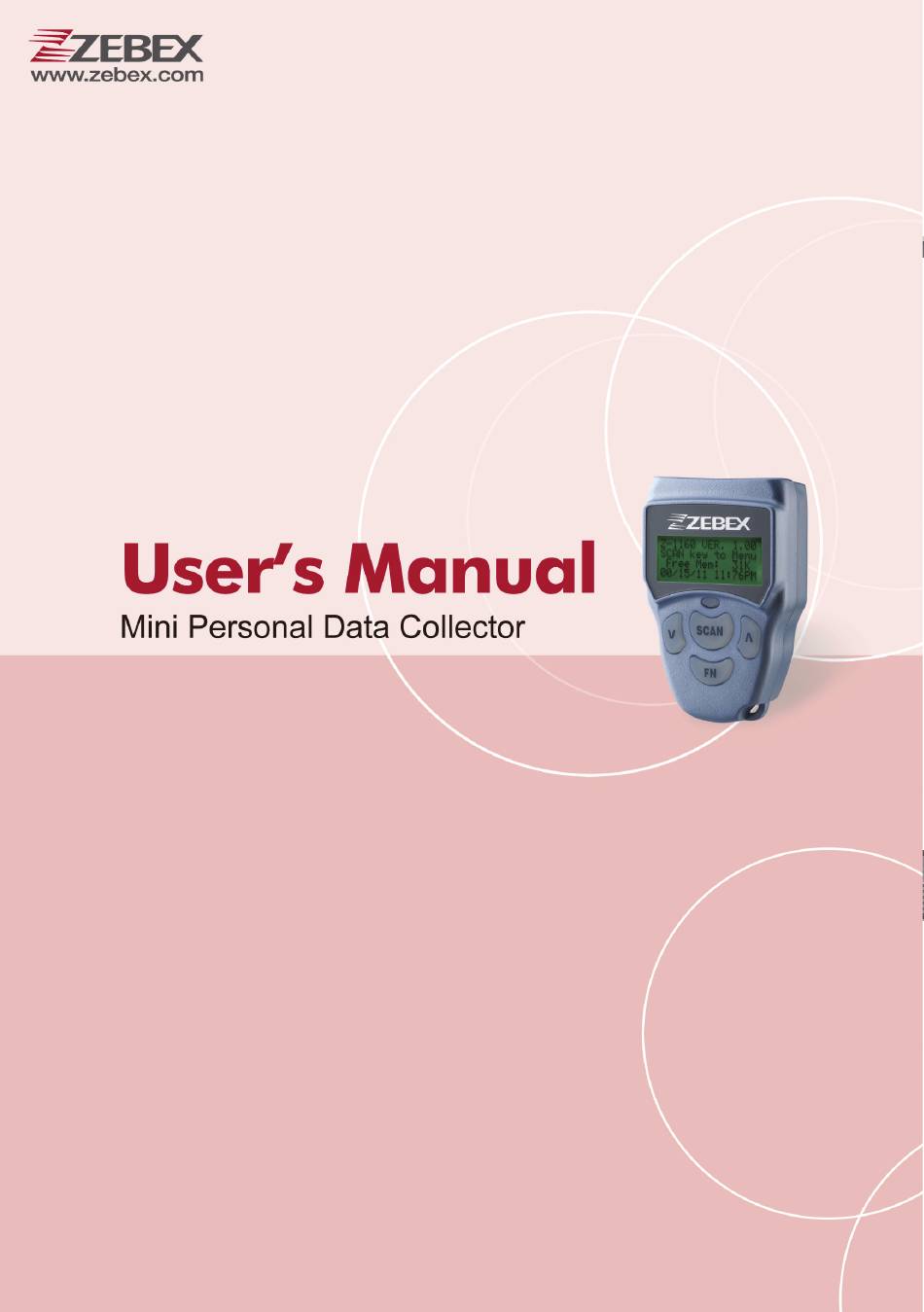

- Page 1 Mini Pocket Sized Data Collector Z-1160 ( Version 1.00 ) User’s Manual ZEBEX INDUSTRIES INC. WWW.ZEBEX.COM...
- Page 2 ZEBEX INDUSTRIES INC. Revision History Changes to the original manual are listed below: Version Date Description of Version November. 01, 2012 Initial release March 2, 2018 Added battery information Data Collector Series User’s Manual Version 1.0 11/01/2012...
-
Page 3: Battery Information
All trademarks mentioned herein, registered or otherwise, are the properties of their various respective owners. Battery Information Use only a ZEBEX approved batteries. Using any other type of battery and charging equipment may damage the device and invalidate the warranty. -
Page 4: Battery Safety
If contact has been made, wash the affected area with large amounts of water and seek medical advice. Do not short the battery terminals. The battery could overheat. Do not attempt to split or peel the outer casing. Z-1160... -
Page 5: Battery Maintenance
The battery capacity is reduced at temperature extremes, high and low. Copyright © 2012. All rights reserved. Guidance for Printing This manual is in A5 size. Please double check your printer setting before printing it. Z-1160... -
Page 6: Table Of Contents
Scanning the Barcode Data ..................7 ......................8 ANAGEMENT Data Entry........................8 Data Storage ........................9 Uploading Data ......................9 Deleting Data.......................9 Resetting Device......................9 ........................10 EVICE ETUP LCD Contrast......................10 Beep Volume.......................10 System Clock ......................10 Barcode Setup ......................10 Communication ......................10 Auto Power Off ......................11 Set Password ......................11 SPECIFICATIONS......................12 Z-1160... -
Page 7: Introduction
Disk Space Requirements: 280 MB (x86), 610 MB (x64). Package Contents Items contain in the package may vary depending on the model of the data collector. RS-232 Cable (Optional; Data Collector USB Cable Neck Strap required for firmware update) Z-1160... -
Page 8: Overview
Connect to charge the power or communicate with Communication Port Lights up when charging or when a barcode is LED Lamp scanned Up Key Navigation key for menu selection or entering data Strap Hole For attaching the neck strap Z-1160... -
Page 9: Getting Started
Loop the thick cord of the strap through the thin loop. Pull the strap tight. Charging the Device The Z-1160 runs on a build-in rechargeable battery and can scan more than 6,000 barcodes between charges and data downloads to a host device. Connect the USB cable to device. -
Page 10: Connecting To Pc
Select the options from the dropdown menu. When you define communication protocols, you must set the same value with the device. COM options: Select the COM port the device is connected to. (Look for the Virtual COM port connection in the Device Manager on your PC) Z-1160... -
Page 11: Setting The Device On Pc
Get Device Time: Obtain device now date and time. Set Device Time: Set up device date and time. Note: For other settings or usage please see the WinTaskGen User’s Manual for more details. Z-1160... -
Page 12: Using The Data Collector
Menu Operation Press the v and ^ keys together to turn on the power. Press the FN key to bring up the boot screen. Z-1160 VER. 1.00 SCAN key to Menu Free Mem: 64K 11/05/03 05:04PM Boot screen Press the SCAN key to open the Main Menu. -
Page 13: Menu Tree List
Press the v and ^ keys together to turn on the power. At the Free Task screen, press the SCAN key and sweep the red light vertically across the barcode. You will hear a short beep on a successful scan and LED will flash green. correct incorrect Z-1160... -
Page 14: Data Management
Press the v and ^ keys to adjust the number. ^ will increase the number by 1 and v key will decrease the number by 1. Press the Scan key to confirm the inputted data or press the FN key to go to mode one to edit the data. Z-1160... -
Page 15: Data Storage
(no) to delete data. Press the Scan key to confirm. Resetting Device Press and hold the Scan key for 2 seconds when the device is off. As soon as the green LED lit-up, press the FN key. Press the Scan key to confirm reset at the reset screen. Z-1160... -
Page 16: Device Setup
Use the v and ^ keys to select Enable or “Disable” at Online Send Record and Yes or No at Protocol Setting and press the Scan key to confirm. USB HID Mode acts the same as USB keyboard and can easily adapt to any host computer like a standard keyboard. Z-1160... -
Page 17: Auto Power Off
Use the v and ^ keys to enter a numeric password. Press the Scan key to confirm. The system prompts you to enter the password again. Enter the password again at the Re-Confirm screen and press the Scan key to confirm. Z-1160... -
Page 18: Specifications
43.5 g (including battery) ENVIRONMENTAL Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature -10°C ~ 60°C (14°F ~ 140°F) Operating Humidity 10% ~ 70% RH, non-condensing Storage Humidity 5% ~ 70% RH, non-condensing REGULATORY CE & FCC Part 15B Z-1160...
