Micropack FDS300 Installation Manual

FDS300
Ref - 2401.6003 Rev - 2.0

Mechanical Installation Guide

Listed below are installation guidelines for trouble
free operation of optical systems.
1.
The detector should be attached to
comparatively rigid, vibration free mountings.
Glands should be torqued between 15 to 20 N•m
(11 to 15 lbf•ft).
2.
The detector orientation shall be as detailed in
figure 1 below to ensure:
a. The IP rating of the detector is not affected.
b. The 120° horizontal field of view is
maintained.

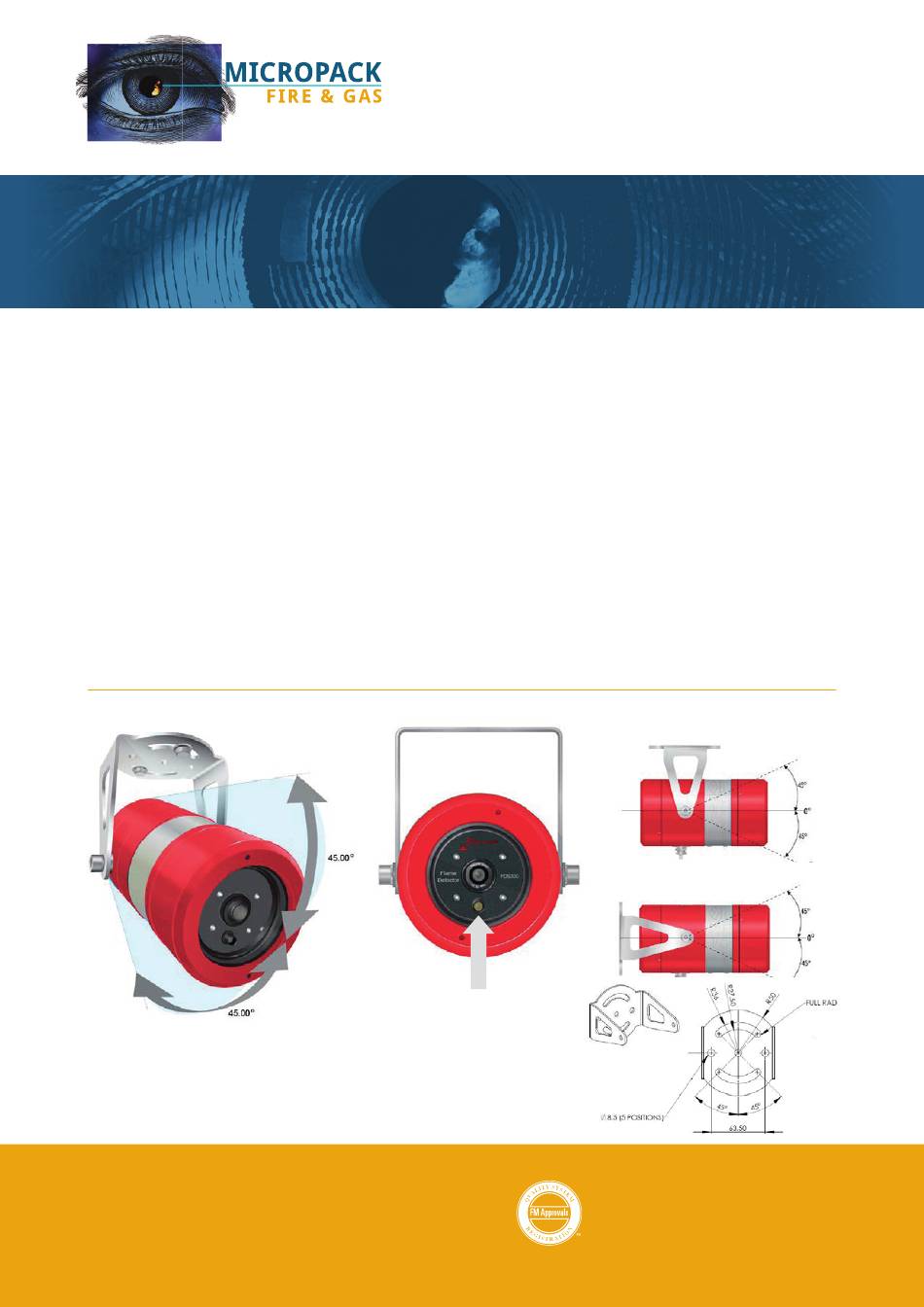

Figure 1: FDS300 Orientation
In the UK & Europe
MICROPACK (Engineering) Ltd
Fire Training Centre, Schoolhill,
Portlethen, Aberdeen AB12 4RR
Tel: +44 (0)1224 784055
Fax: +44 (0)1224 784056
Email: sales@micropack.co.uk
micropack.co.uk
MICROPACK (Engineering) Ltd
Fire Training Centre, Schoolhill, Portlethen, Aberdeen AB12 4RR
T:
VISUAL FLAME
DETECTOR
Status led must be directly
below the lens.
In the Americas
MICROPACK Detection (Americas) Inc
1227 Lakecrest Court, Fort Collins,
Colorado, 80526
Tel: +1 970 377 2230
Fax: +1 970 377 2273
Email: info@micropackamericas.com
micropackamericas.com
+44 (0)1224 784055 E: info@micropack.co.uk
3.
The front and rear enclosure covers shall be fully
screwed onto the enclosure body and the
grub screws tightened to ensure the hazardous
area certification is maintained.
4.
In the case of an offshore vessel or platform, the
detector should ideally be placed facing inwards
towards the plant and with minimal view of the
horizon.
ISO9001:2008
Certified Subject to modifications. © 2015 Micropack (Engineering) Ltd.
micropack.co.uk
Ceiling Mount
Wall Mount
