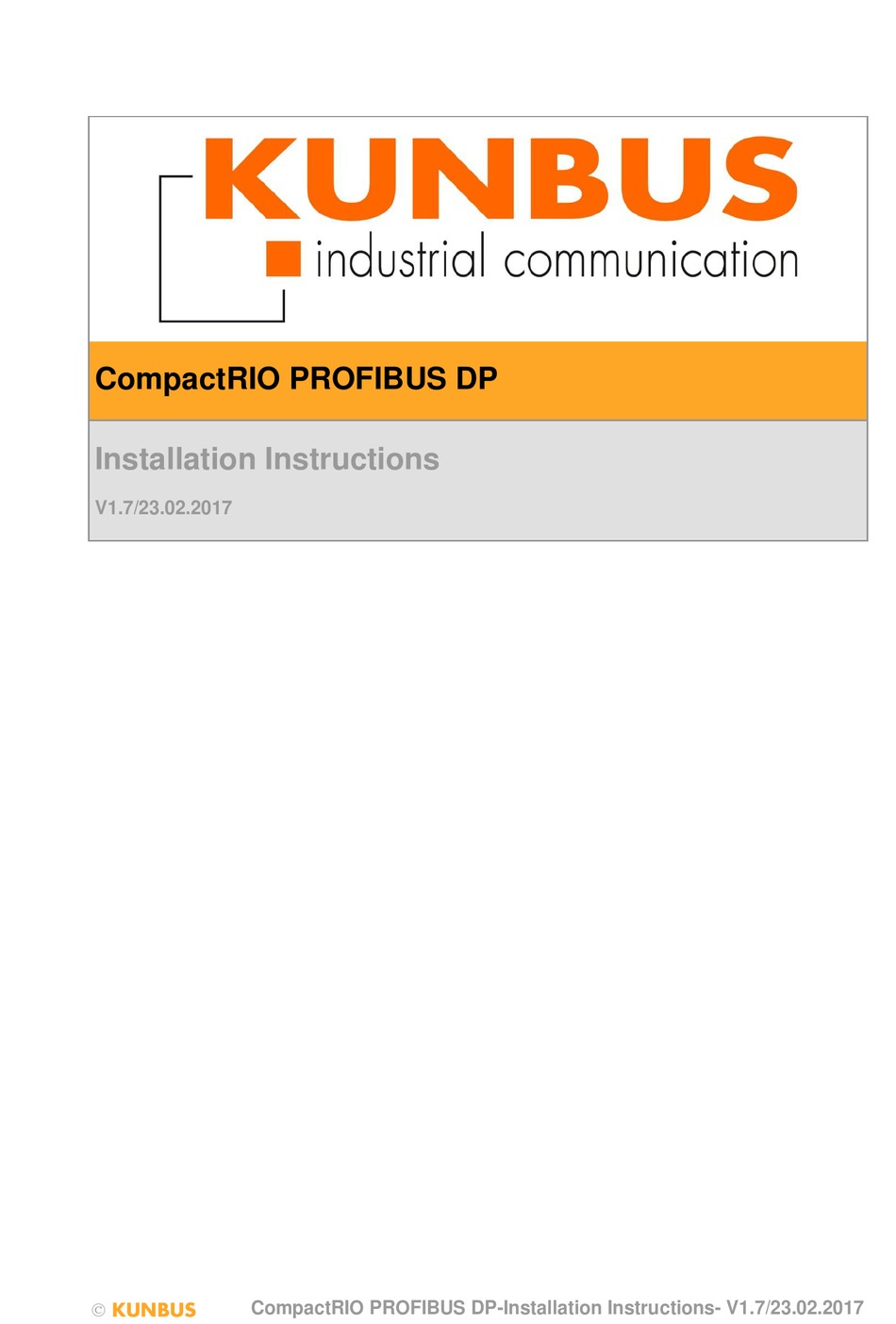

- Page 1 CompactRIO PROFIBUS DP Installation Instructions V1.7/23.02.2017 CompactRIO PROFIBUS DP-Installation Instructions- V1.7/23.02.2017...
- Page 2 1.7\crio_pb_e.doc Revision History Version Date Description Resp. V1.7 23.02.2017 KUNBUS branding JK, AME V1.6 03.03.2010 Minor Fixes V1.5 16.02.2010 National Instruments specific changes SF, JK V1.4 23.09.2009 Technical data table updated V1.3 07.05.2009 Technical data table updated V1.2 28.04.2009 Technical data table updated V1.1...
-
Page 3: Table Of Contents
Installation Instructions Contents Contents Installation of the Module ....................1 LEDs and Connectors ....................2 Position of LEDs and Connectors ................ 2 LED's ........................3 Power connector ....................4 9 pin SUB D connector ..................4 Technical Data ......................5 Use in hazardous locations .................. - Page 4 Contents Installation Instructions List of Figures Figure 1: cRIO PB module ..................... 1 Figure 2: LEDs and connectors ....................2 Figure 3: Profibus-Terminator (cable type B is no longer used) ..........4 List of Tables Table 1: Meaning of the LEDs ....................3 Table 2: Power requirements ....................
-
Page 5: Installation Of The Module
Installation of the Module 1 Installation of the Module The cRIO PB module is a PROFIBUS DP Master/Slave module for National Instruments CompactRIO, Single-Board RIO systems. The configuration entirely takes place by means of the delivered software. Thus, no jumpers or DIP-switch adjustments are necessary. -
Page 6: Leds And Connectors
LEDs and Connectors Installation Instructions 2 LEDs and Connectors 2.1 Position of LEDs and Connectors RUN - PROFIBUS Activity LED PWR - Power indication LED BF - PROFIBUS Bus Fail LED SPI - Activity LED Power – Power supply connector (plug within scope of delivery) DP –... -
Page 7: Led's
Installation Instructions LEDs and Connectors 2.2 LED's Colour State Function Green No power supply connected Power supply connected Green SPI bus not active SPI bus active Green Operation as DP-Master Scanning not activated Scanning activated Operation as DP-Slave DP Slave not active DP Slave initialized Flash DP Slave (AutoSlaveMode) -
Page 8: Power Connector
LEDs and Connectors Installation Instructions 2.3 Power connector Parameter Value Nominal value 24 Volts DC 11 – 30 Volts DC Input range Power consumption 2.5 W in Active mode (Receiving and Transmitting) Table 2: Power requirements 2.4 9 pin SUB D connector Pin Number Signal Function... -
Page 9: Technical Data
Installation Instructions Technical Data 3 Technical Data Processor ARM 9 at 150 MHz Profibus Controller ASPC2 at 48 MHz Memory 32 Mbyte SRAM 4 Mbyte Flash Type Memory SPI Interface SPI Slave up to 4 Mbit/s Profibus Interface 1 Port (Sub-D 9 pins) Interface Physics RS485 (isolated) 9600 Bit/s –... -
Page 10: Ce- Conformity Declaration
CE- Conformity Declaration Installation Instructions 4 CE- Conformity Declaration We herewith declare that the CompactRIO Module cRIO PB corresponds to the requirements stated in the EU standards 2004/108/EG. The device corresponds to the following standards: DIN EN 55024, issue 2003-10... - Page 11 Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at ni.com/patents.
