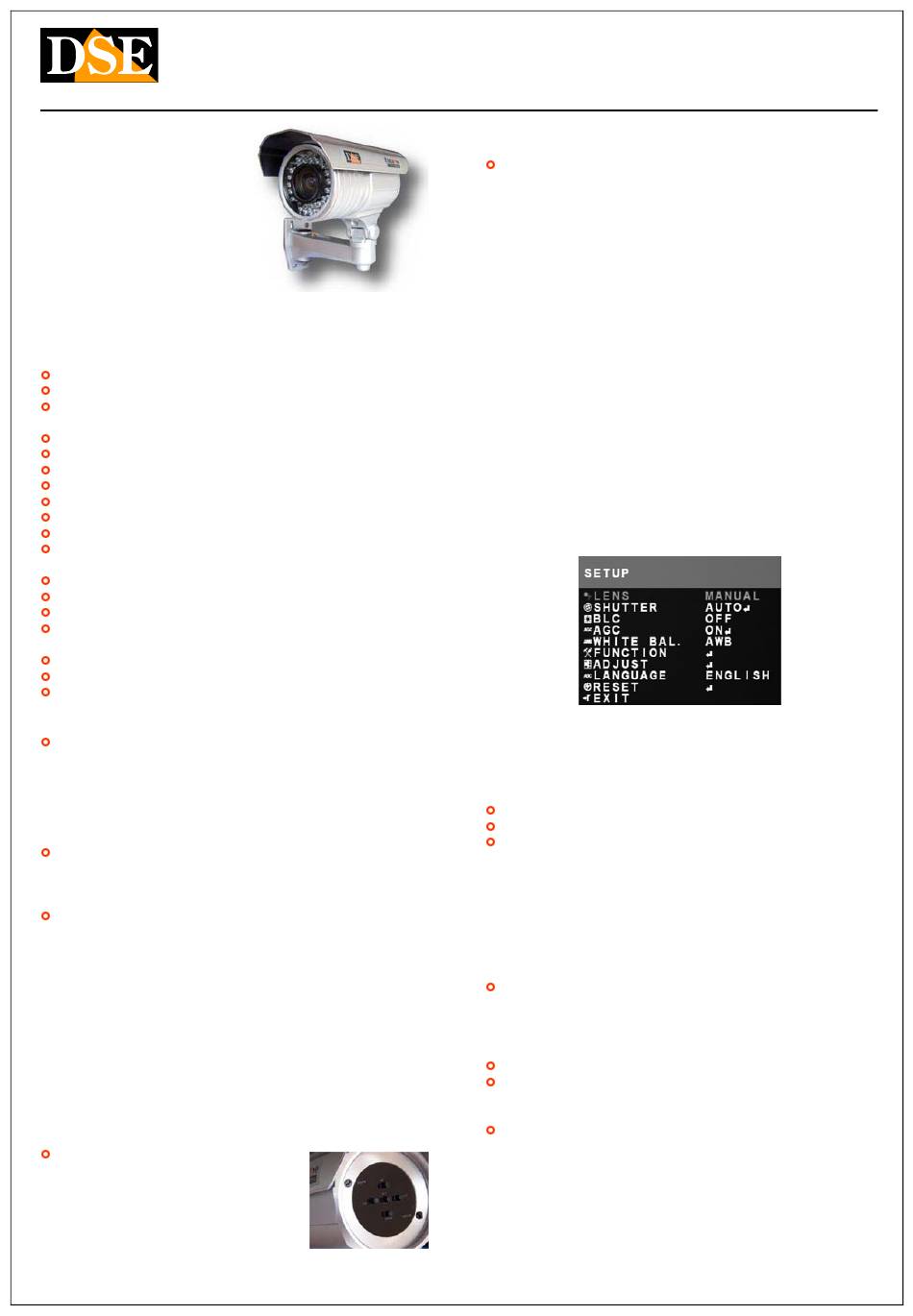

DSE RE-BCC5M Owner's Manual

OWNER'S MANUAL

Product description

RE-BCC5M is a high performance camera for
applications
CCTV
require the highest quality video and a suitable
sealed container both inside and outside.
The camera is equipped with infrared illuminator
for viewing in the dark of the reach of
30 m. and integrated optics with variable focal length from 4 to 9
mm. adjustable from the outside.

Main features

SONY Super HAD CCD high resolution 520 TVL varifocal lens 4 to 9 mm.
Focal adjustable dall'esterne fire without opening the container
Infrared Illuminator 30 m. (36 LEDs 850 nm) Day / Night function for night vision in
B / N Enclosure IP66
Sunshield inner side with an opaque anti-reflective wall bracket integrated with internal
cable routing Lens double anti-reflective glass Power 12VDC
OSD (On Screen Display), via programming screen MENU controllable with rear buttons.
Auto Iris / Manual
BLC backlight compensation area with selectable AGC Automatic dl adjustable gain
adjustment AWB white balance ATW, AWB, Fixed, Manual
Camera name superimposed MIRROR function for image inversion zone
programmable privacy

Connections and controls

fixing - The camera is provided with a bracket fixing - The camera is provided with a bracket
integrated for wall mounting, specially designed to allow the passage of cables inside it and
protect them from tampering. The camera is mounted generally in the output cables so as not to
leave exposed wires. From camera out the BNC video connector and power connector.
BNC video output -At bayonet BNC connector BNC video output -At bayonet BNC connector
female connecting the video cable which then leads to monitor or management devices typically
via RG59 type coaxial cable and a BNC connector.
pin DC12V - We must connect a 12VDC power supply stabilized by at least 500 mA, as the pin DC12V - We must connect a 12VDC power supply stabilized by at least 500 mA, as the pin DC12V - We must connect a 12VDC power supply stabilized by at least 500 mA, as the pin DC12V - We must connect a 12VDC power supply stabilized by at least 500 mA, as the
RE-AL4S model. The requested plug is the standard 5.5 mm. The direct current power supply
allows you to install the cameras without additional protection (request if the power supply is
220V), as well as to power the camera with a battery in case of blackouts. Attention to use
STABILIZED feeders that provide 12V in any load condition. The use of a different supply voltage
from 12VDC can generate video disorders and in the worst cases damage the camera. Attention
to extension cables power too long or small section, which could introduce an excessive fall of
species voltage at power IR illuminator.
Adjusting Focus Zoom - The Adjusting Focus Zoom - The
of the camera rear endcap you can be unscrewed to access the
rear controls. To unscrew the cap act with counterclockwise
force. They are first of all present
2 screws
that
that
Document: RE-0D8 BCC5M Document: RE-0D8 BCC5M
Update: April 2008 Update: April 2008
RE-BCC5M waterproof camera with IR
allow you to adjust the lens focal length and the focus without having to open the casing of the
camera.
OSD control buttons - 5 rear buttons allow you to activate and control the setup menu OSD control buttons - 5 rear buttons allow you to activate and control the setup menu
that appears on the screen by pressing the center SET button

IR Illuminator

The RE-BCC5M cameras incorporate within them an illuminator to 36 LEDs at 850 nm that
emanates illumination invisible to the human eye, but visible to the camera. The illuminator turns
on by itself at nightfall
darkness. The ignition
allows the vision in B / N in absolute darkness up to about 30 m away.

Camera Configuration

Pressing the back SET button to access the setup menu that consists of several items that can
to be selected
UP / DOWN / LEFT / RIGHT with the middle button that acts within the menu as ENTER. The first
thing to set to English thing to set to English
going down to the line 8 and pressing the RIGHT button repeatedly.
We are described below one by one all the programming entries.

Lens

In this section there are the options for controlling the lens iris. The type of lens operation will
directly affect the reactivity of the camera to variations in brightness. E 'can set:
MANUAL - Fixed iris VIDEO - Video Auto Iris
DC drive - Auto iris DC drive
CAUTION. By using the automatic iris diaphragm (VIDEO or DC) it will not be possible to set the
automatic electronic iris (see following parameter)

Shutter - Electronic Iris

In this section there are the options relating to the camera electronic iris control. E 'can set:
AUTO - Automatic electronic shutter. The camera will compensate for variations in
luminance electronically in an automatic way. E 'can set the
image brightness. The automatic shutter can only be used with type Manual LENS option.
FLK - Fixed electronic shutter to 1/120 (PAL) FIXED - Selectable Fixed iris. E 'can set 1/50,
1/120, 1/250, 1/500, 1/2000, 1/5000, 1/10000, 1/100000.
MANUAL - Aperture set as desired. Use the Left / Right buttons to set the value

BLC - Backlight Compensation

In this section you set the parameters related to the backlight compensation (BLC) function useful
in case of recovery of dark subjects on background is very bright, as it might be, for example, a
customer who enters
Page: 1 Page: 1
illuminator
with keys
the
level of
