OWNER'S MANUAL

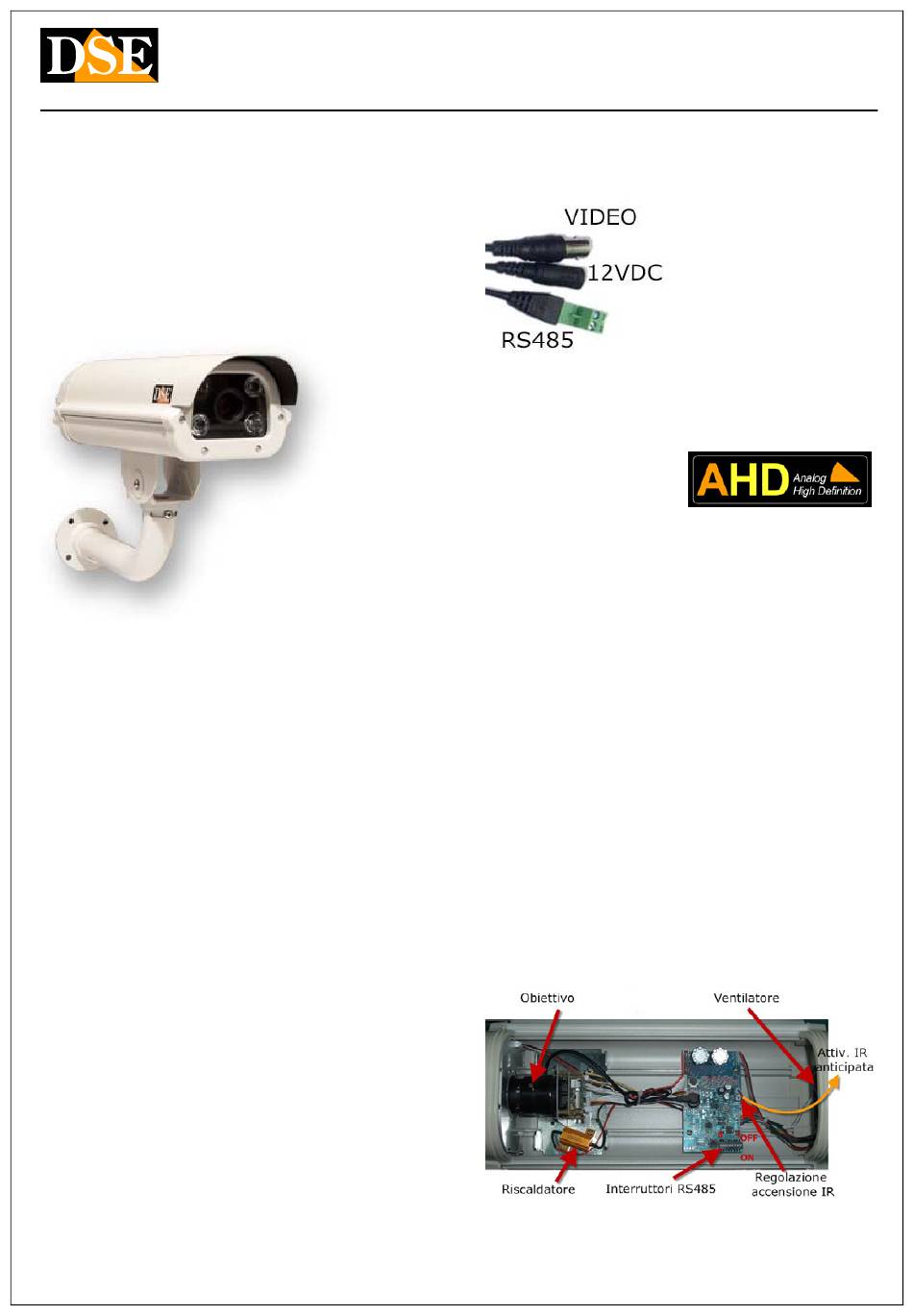

RE-BCC8HD

PRODUCT DESCRIPTION

This camera is made to allow the resumption of license plates of vehicles in slow or fast motion. It
can operate in any light condition thanks to
infrared illuminators
System of High-Light Suppression is not affected by the headlights of the vehicle is that dipped
beam.

ASSEMBLY

The cameras are equipped with a mounting bracket for wall built to allow the passage of cables
within it.
The bracket is mounted generally in
matching output cables. The basis of
It has 4 holes for fixing to the wall with dowels. The housing is waterproof and can be installed
outdoors without any protection.
The housing is air-conditioned and is equipped with a fan which is activated at above 45 ° and a
heater that is activated at below -5 ° C.

POSITIONING

The positioning of the camera it is very important for a good yield of the license plate reading.
The optimal recovery of the plate is carried out at a maximum distance of 30 m. depending on the
adjustment of the lens. The first thing to check is therefore that the distance as the crow flies (not
walkable on the ground) between the camera and the point where you will find the means, does
not exceed this distance otherwise the infrared lighting will not be effective.
The second thing to consider is to position the camera so that the light of the
directly oriented towards the camera, while maintaining at least an angle of 30 ° vertically with
respect to lighting of the headlights. The camera will then be placed in detected position with
respect to the road surface so as to avoid that the
dot headlights directly against
camera.
Satisfied 2 previous points in orienting the camera needs to be done so that the plate remains as
long as possible in the field of vision of the camera.
incorporated. Thanks to a
fixing
headlights is not
DSE srl - Digital Surveillance Equipment - WWW.DSE.EU
Document: RE-BCC8HD 1A5 Document: RE-BCC8HD 1A5 Document: RE-BCC8HD 1A5
RE-BCC8HD camera license plate

CONNECTIONS

The connections on the output cable from the camera are the following:
BNC video output - At the BNC female bayonet connecting the video cable that leads then to BNC video output - At the BNC female bayonet connecting the video cable that leads then to
monitor or management devices typically using RG59 coaxial cable and BNC connector. The
RE-BCC8HD cameras are cameras that can work with both conventional analog DVR or DVR
AHD last generation with which allow you to reach the HD720P 1280x720 resolution (1.3 MP).
The switching between the two systems TRADITIONAL CVBS and AHD is carried out by
commands from the RS485 as we shall see later.
A AHD DVR can receive the camera is in the normal analog CVBS mode that AHD, but will agree
to use the equipment that provides greater resolution. A previous generation analog DVR D1 or
960H will instead see only in CVBS mode camera.
Jack DC12V - We must connect a 12VDC power supply stabilized by at least 2,000 mA, such as Jack DC12V - We must connect a 12VDC power supply stabilized by at least 2,000 mA, such as Jack DC12V - We must connect a 12VDC power supply stabilized by at least 2,000 mA, such as
RE-AL5 model (not included).
The requested plug is the standard 5.5 mm. Attention to use STABILIZED feeders that provide
12V in any load condition. The use of a different supply voltage from 12VDC can generate video
disorders and in the worst cases damage the camera. Beware extension power cables are too
long or
small section,
excessive fall
IR illuminator ignition.
RS485 input - This connection allows you to connect an RS485 BUS to be able to remotely adjust RS485 input - This connection allows you to connect an RS485 BUS to be able to remotely adjust
the IR illumination power and configure the OSD menu
Page: 1 Page: 1
that could to introduce
species voltage at the time
