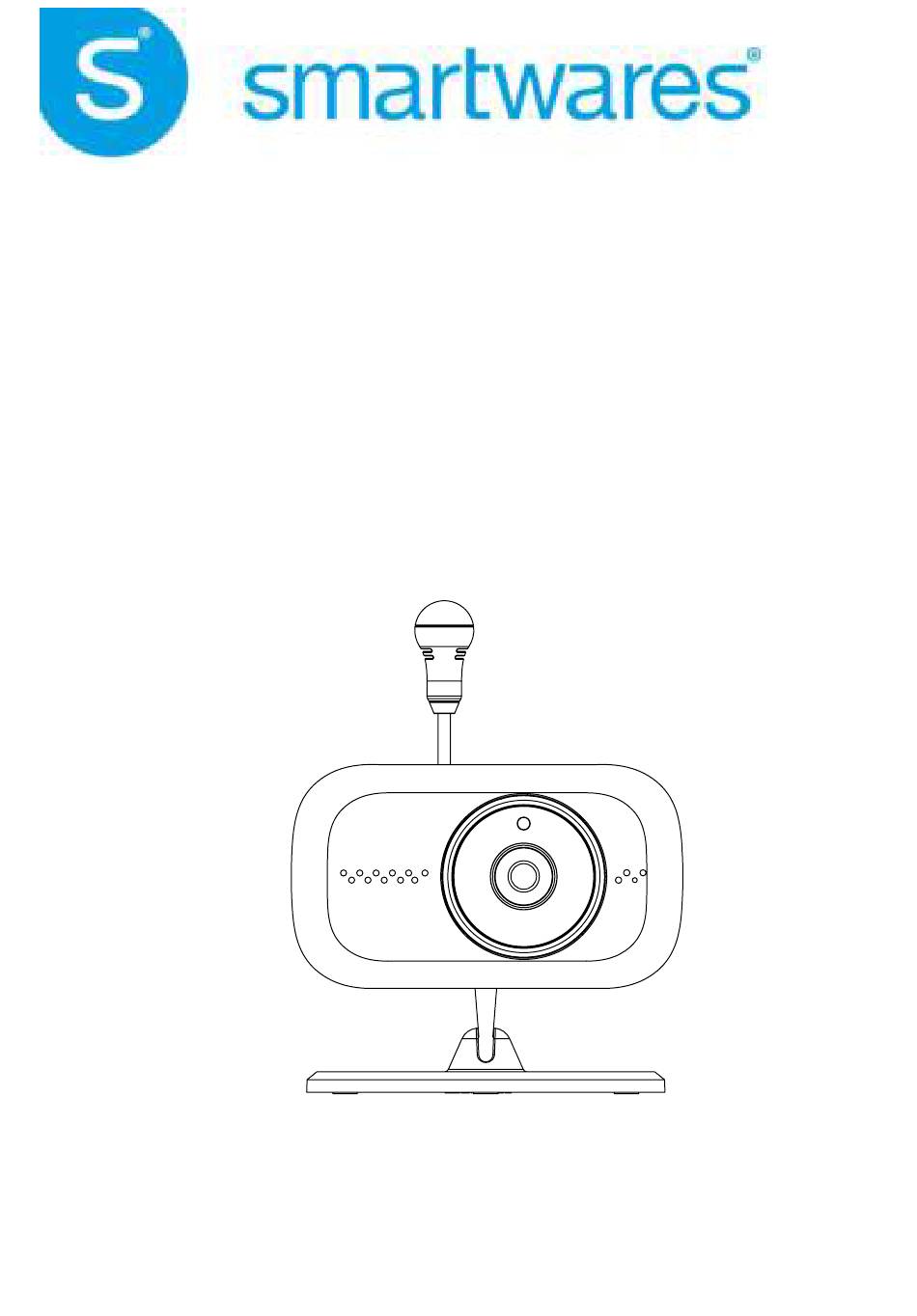

- Page 1 C730IP | 10.028.16 Baby IP Camera HD Installation and Operating Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 Important Note The state of the art Baby IP Camera HD is capable of delivering high quality Digital High Definition (HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) may display black-screen or temporary disconnect to the camera.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ....................2 IMPORTANT SAFETY PRECAUTIONS ..............2 KIT CONTENT ....................4 NIGHT VISION ......................5 CAMERA INSTALLATION ..................5 CAMERA OVERVIEW ..................6 SETUP THE CAMERA ..................7 MAIN SCREEN OVERVIEW ................9 VIEW SNAPSHOT ..................11 VIEWING YOUR SNAPSHOTS ..............11 PLAYBACK RECORDED VIDEOS .............. -
Page 4: Introduction
INTRODUCTION PLEASE READ BEFORE YOU START Always use discretion when installing monitoring system, especially when local regulation(s) may have certain policy concerning the surveillance, video recording and/or listen-in function(s) the device have to offer. Please check with your local authority for more detail. Third party consent may also be required. - Page 5 FCC Compliance Statement: This Products with CE Marking comply device complies with Part 15 of the w i t h E M C D i r e c t i v e ( 2 0 0 4 / 1 0 8 / FCC rules.
-
Page 6: Kit Content
KIT CONTENT Power Adapter (including stand & wall- Camera bracket) Tools Required: Quick Start Guide ‧Electric drill ‧5mm masonry drill bit ‧15mm masonry drill bit ‧No. 2 Philips screwdriver For best system performance: - iOS: iPhone5 / iPad2 / Mini iPad or above. - Android: 1.5G dual core processor dual core procesor with 1G Ram or above. -
Page 7: Night Vision
NIGHT VISION The camera has built-in infrared LEDs to allow you to view at night for 24-hour surveillance. The LEDs will automatically activate at low light environment and the picture viewed will turn to black and white. The night viewing range is up to 5 meters. CAMERA INSTALLATION 1. -
Page 8: Camera Overview
CAMERA OVERVIEW Comfort Light Temperture/ Humidity Sensor Light Sensor Microphone Speaker Status LED Infrared LEDs Camera Stand Micro SD Power Reset... -
Page 9: Setup The Camera
SETUP THE CAMERA 1. APP Download Download the APP from APP Store/Google Play. APP Name: BabyAdore 2. Power up the camera (1) Provide power to the camera by using the supplied camera power adaptor. (2) 60 seconds later the GREEN LED will flash, go on to step 3. 3. - Page 10 4. MAKING CONNECTION (camera - Wi-Fi router) This is the last part of the camera setup. After this your camera will be ready to go (1) Tap the "Camera Edit" icon (Camera Edit Icon) select "Camera Info" icon (Camera Info Icon), select "Advanced"...
-
Page 11: Main Screen Overview
MAIN SCREEN OVERVIEW After launch the app the app will display live-view. By default, all the control icons are hidden until the user tapping anywhere on screen. User can quickly switch channels by using the <CH/CH> icons when multiple cameras are registered to the app. User can also perform other control functions by tapping on the following control icons. - Page 12 The controls and the layout design has been maximumized to meet the operating system requirments of the mobile devices. The main page will display in landscape mode by default. Note: Once the recording is started by motion detection or manually, the APP will continue the recording for 1 minute.
-
Page 13: View Snapshot
VIEW SNAPSHOTS Tap on once to take a snapshot of the screen. For iOS Snapshot images are saved in the Camera Roll section of the mobile device. The file name of the snapshots will be the time of when the images captured (YYYY/MM/DD/HH/MM). For Android Snapshot images are saved in the Photo Gallery/Snapshot folder in the mobile device. -
Page 14: Playback Recorded Videos
PLAYBACK RECORDED VIDEOS The recorded video file(s) on your camera is automatically saved to the memory card inserted in your camera. You can remotely access the file(s) for playback via OMG Care app. 1.Tap in the main screen (Live-vew) to bring up camera setting section. 2. - Page 15 User can Pause the video or Mute audio at anytime. Tap Go Back to return to Event List section. User can allocate the recorded video files to PC for playback via memory card transfer. For best playback performance user can use "Free Video Converter". The software can be downloaded from: http://www.freemake.com/free_video_converter/ http://www.videolap.org/...
- Page 16 For iOS: to bring up the Event Filter. ‧To View HD Event Video User can view HD format event videos. Due to the data size user must download the file first before playback. it is strongly suggested to download the file(s) at your home Wi-Fi network (WLAN), where the mobile device is connecting to the same Wi-Fi router as the camera.
- Page 17 Note: During the download system will stop both Live-view and Recording functions, and the app will also inform any user accessing the camera that the system is busy and connection is not available. Once the HD Video Event File downloaded, use following apps for playback: A.
-
Page 18: Manual Record
MANUAL RECORD While at the Live-View section, tap once and camera will begin recording for 60 seconds. The 60 seconds video clip will be saved at the memory card inserted in the camera. To view the video clip, please refer to “PLAYBACK RECORDED VIDEOS” section for more detail. PUSH-TO-TALK While at the Live-View section, hold down the to speak. -
Page 19: Image Adjust
IMAGE ADJUST While at the Live-View section, tap to bring up the Image Adjust page. Resolution: Select VGA or HD video display. Select HD video display only when you have sufficient internet bandwidth. Backlight Gain: Activate the backlight gain when the camera is facing bright light source, such as window or lamp. -
Page 20: Notify (Push Notification)
About: You will find app and camera firmware version information here. Advance Setting: In this section you have access to detail camera settings, such as Time, Wi-Fi Network, Email Alert, etc. You will require to have specific password to enter the advance setting section. Please refer to P19 for more details. NOTIFY (PUSH NOTIFICATION) The camera offers motion detection function therefore upon detection motion event the camera will send out push notification to user's mobile device. -
Page 21: Advanced Setting
ADVANCED SETTING This chapter explains the advanced settings for administrator. Administrator is the one who owns the administration password and has the full control to the camera, including having access to all camera functions and settings, while general users can receive the surveillance images for live- view/screen capture/video recording and may not manage the camera settings. - Page 22 ADMIN PASSWORD The Admin Password is a specific security code for administrator to change the advanced settings. The default admin password is 123456. Please use this function to change the default admin password into your personal admin password. For the protection of your system configuration, every time you change the advanced settings, you need to enter the admin password.
- Page 23 VIDEO SETTINGS This section allows you to configure the video quality and environment mode. Video Quality By selecting better video image will allow you to view high resolution image. By selecting better streaming will allow the video to display more smoothly (quality depend on local internet environment).
-
Page 24: Trouble Shooting
TROUBLE SHOOTING SOLUTION The APP cannotfound the ‧ Make sure your network supports the DHCP protocol. ‧ Make sure the camera and your mobile device connect to the camera same Wi-Fi router for the first setting. ‧ Make sure the Wi-Fi router is activated. ‧... - Page 25 The APP cannot record ‧ Make sure the SD card has been correctly inserted any video clips ‧ Make sure the motion detection function has been enabled. (please refer to the Sensitivity Setting section). ‧ Please format the SD card when it is used for the first time (please refer to the SD Card Format section) ‧...
- Page 26 Wrong data and time are ‧ Wrong date and/or time will result in unexpected record schedule. Make sure you’ve selected the correct time zone (please refer to shown the Time Zone section). ‧ Confirm the system date/time of the mobile device to ensure correct operation.
-
Page 27: Product Specification
PRODUCTION SPECIFICATION Networking Parameter Wireless Technology IEEE 802.11 b/g/n Network Connection Wi-Fi Network Protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP Simultaneous Viewers 3 Concurrent Sessions WPA /WPA2/WPA2-PSK (TKIP, 128 bit AES) Security Camera Parameter Mega pixel CMOS Image Sensor 3dBi Dipole Antenna Environment Rating (Ingress) Indoor Use Only... -
Page 28: Storage Media Management
STORAGE MEDIA MANAGEMENT Micro SD Card Capacity Event Minutes (Class 10) 1,760 1,760... -
Page 29: Appendix: Compatible List
APPENDIX: COMPATIBLE LIST WiFi Compatible Router List Brand Product Name ASUS RT-N53 BUFFALO WIR-HP-C300NH2 BUFFALO WZR-HP-G450 Cisco ERT120 D-Link DIR-816L Huawei WSR20 INTELBRAS WRN300 Wndr3700v4 NETGEAR NETGEAR WGR614 Tenda FS395 TP-link TL-WR941N...
