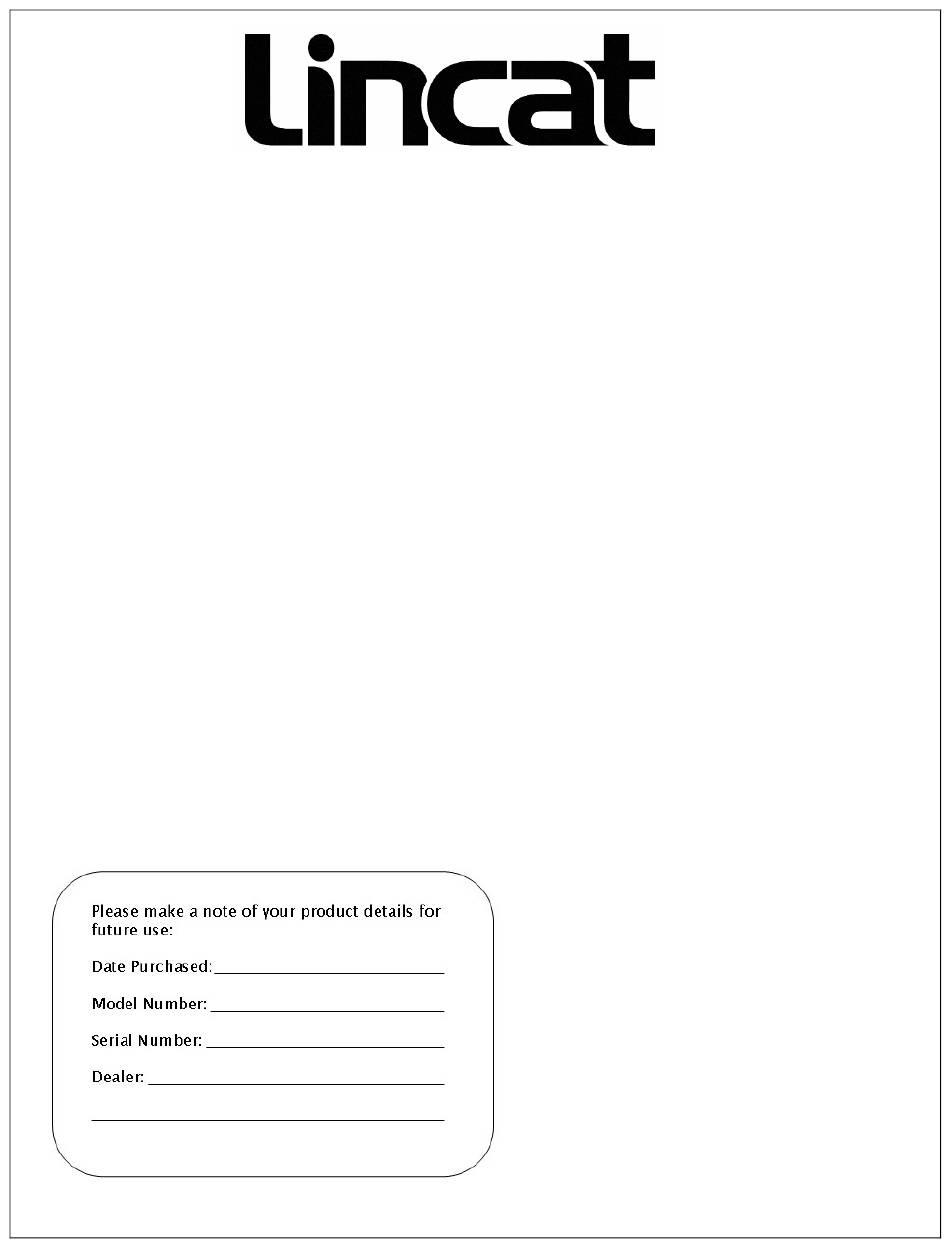

- Page 1 User and Installation Instructions Electric Fume Filtration Units L3 and L4 IS346 ECN3219...
-
Page 2: Table Of Contents
Lincat product will give years of trouble free use. We produce over 450 different items of catering equipment and our range is constantly being extended and improved. Find out more about Lincat products from your local distributor or direct from us. -
Page 3: Safety Information
Remove all plastic coatings and clean the unit before use. • Ensure that the electrical supply cable is not damaged. If it is, it must be replaced by Lincat Ltd or by qualified personnel. • Always disconnect the unit from the electricity supply before servicing. -
Page 4: Technical Specification
Using a no.4 masonry drill, drill holes in a suitable wall as shown in Fig 1. for the L4 and Fig 2. for the L3. Insert rawl plugs into holes. Hang the unit onto screws in the bottom row of holes and then secure in place by screwing through the fan covers into the top row of holes. - Page 5 Fig 1. 345.0 405.0 345.0 14.0 50.0 51.0 14.0 14.0 14.0 317.0 304.0 317.0 Fig 2. 715.0 65.0 15.0 304.0 317.0 14.0 IS346 ECN3219...
-
Page 6: Operation
CONNECTING TO THE ELECTRICITY SUPPLY The unit must be earthed Check that the voltage of your electricity supply corresponds to the voltage shown on the serial plate The product is supplied with a 10 amp plug. If replacing the plug, connect the terminals as follows: −... -
Page 7: Cleaning
Figure 4. CLEANING Important: Take care not to damage the thermostat capillary when cleaning. Clean the unit regularly to maintain efficient performance and hygiene. Disconnect the unit from the electricity supply and allow to cool before starting to clean Use a mild detergent in hot water and a soft cloth. Do not allow excess water to run into the unit. -
Page 8: Maintenance
MAINTENANCE The parts listed below can be replaced by the user. No other regular maintenance is required. Lamp Bulb • Ensure that the unit is turned off and unplugged from the mains. • Carefully prise glass cover off using a small flat bladed screwdriver. •... -
Page 9: Service Information
Type number • Serial number Lincat reserve the right to carry out any work under warranty during normal working hours, ie Monday to Friday, 08:30 a.m. – 17:00 p.m. GUARANTEE This unit carries a comprehensive UK twelve-month warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. - Page 10 IS346 ECN3219...
