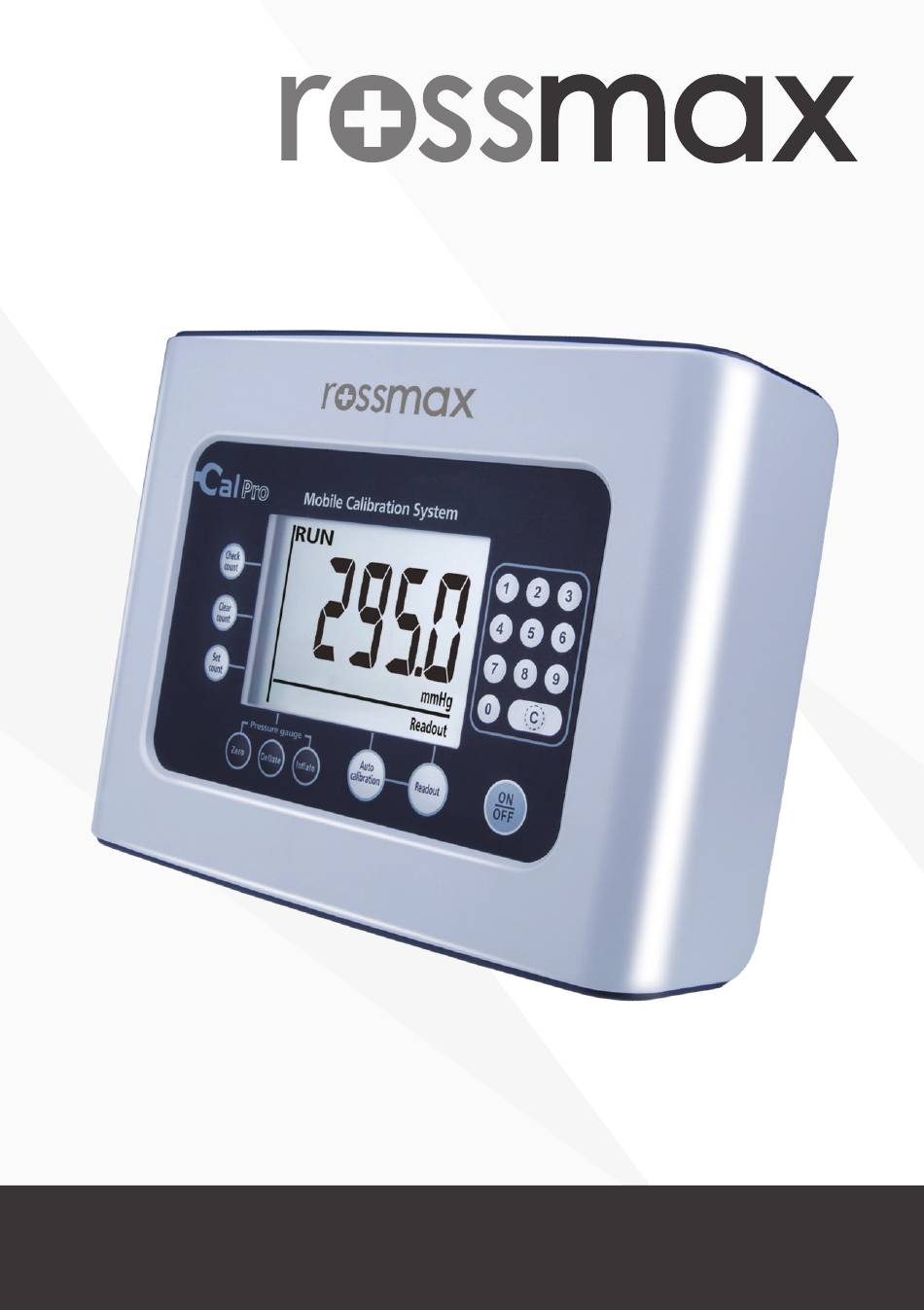

- Page 1 Mobile Calibration System for Blood Pressure Monitor CalPro Model: Instruction Manual...
-
Page 2: Table Of Contents
5. Dispose of device, batteries, components and accessories according to local regulations. 6. Data link can only be connected with Rossmax blood pressure monitor and calibrator. It cannot be used for any other purpose. 7. Clean the device carefully with a slightly damp, soft cloth. -
Page 3: Name/Function Of Each Part
Name/Function of Each Part Name/Function of Each Part LCD Display Air Tube and Connector Air Tube and Connector Number for Wrist Monitors for Upper Arm Monitors Entry key Check Count key Check Clear Count key count Clear count Clear key kPa mmHg count Set Count key... -
Page 4: Lcd Display Explanations
LCD Display Explanations Using the AC Adapter 1. Connect the AC adapter with the AC adapter jack in the back of the calibrator. 2. Plug the AC adapter into the socket. Use the compatible AC adapters. Check (AC adapters with required voltage and current indicated near the AC count adapter jack.) Clear... -
Page 5: Operation Procedures
Connection Methods Operation Procedures Wrist Blood Pressure Monitor: 1. Data link status operation 1. Loosen the screw that secures the cuff to the monitor. Before operation, make sure the air tube and the data link cable are 2. Remove the cuff from the monitor. securely connected to the calibrator and the blood pressure monitor. -
Page 6: Readout Mode
2. Readout Mode Blood Pressure Calibrator Screen Monitor Screen This feature checks monitor pressure, if you would like to ignore pressure checking , skip to "Auto Calibration Mode"(page 18) directly. Press “Readout” to start. “RUN” will appear on LCD and pressure is checked at 0/295/270/240 mmHg points. - Page 7 To check the second pressure levels. “RUN” will appear on LCD and Blood Pressure Calibrator Screen pressure is checked at 0/210/180/150 mmHg points. If the pressure Monitor Screen difference at 0/210/180/150 mmHg is within ± 3mmHg, the calibrator will rapid exhaust to 0 mmHg, then go on checking 3rd points. if "FAIL" appears, the faulty pressure points will be shown (both the default pressure check point and the actual pressure measured will appear alternatively.).
- Page 8 To check the third pressure levels. “RUN” will appear on LCD and Blood Pressure Calibrator Screen pressures is checked at 0/120/90/60 mmHg points. If the pressure Monitor Screen difference at 0/120/90/60 mmHg is within ± 3mmHg, the calibrator will rapid exhaust to 0 mmHg, then go on checking 3rd points. If "FAIL" appears, the faulty pressure points will be shown (both the default pressure check point and the actual pressure measured will appear alternatively.).
- Page 9 The forth step of checking leves. “RUN” will appear on LCD and pressures are checked at 0/30 mmHg. If the pressure difference at 0/30 Blood Pressure mmHg is within ± 3mmHg, the calibrator shows "PASS". If "FAIL" Calibrator Screen Monitor Screen appears, the faulty pressure points will be shown (both the default pressure check point and the actual pressure measured will appear alternatively.).
-
Page 10: Auto Calibration Mode
3. Auto Calibration Mode Blood Pressure Calibrator Screen If "Readout Mode" result is FAIL, Press “Auto calibration” key to Monitor Screen start. “RUN” appears on LCD, and pressure values are programmed at 0/300/200/100 mmHg. If the programming is successful, “PASS” will appear. -
Page 11: Measurement Count Display Mode
4. Measurement Count Display Mode 5. Measurement Count Clearance Mode Press “Check count” to start. “RUN” appears on LCD, and the Press “Clear count” to start. “RUN” appears on LCD, and the measurement cycles (count, number of uses) of the monitor will be measurement cycles (count, number of uses) of the monitor will calculated. -
Page 12: Calibration Reminder Setting Mode
7. Pressure Gauge Mode Enter your desired count (number of uses) for the monitor so the CA (the This feature is for static pressure checking of Rossmax digital recalibration reminder) will appear on the display every time you turn on manometer. - Page 13 Deflate: If you don't press the deflate key, the pressure will decrease 1 mmHg accordingly. Connect the Calibrator and Connect the Calibrator and Upper Arm Blood Pressure Monitor Wrist Blood Pressure Monitor Press “Inflate” to increase the pressure, “Deflate” to decrease the pressure, and “Zero”...
-
Page 14: Change "Mmhg" To "Kpa
Change "mmHg" to "kPa" Error Messages When the calibrator is off, press and hold "Auto calibration" key, Error Root Cause Correction then press the "ON/OFF" key to turn on the calibrator, "mmHg" will Messages changed to "kPa" (release "Auto calibration" key), the calibrator will FAIL Connection Error Turn off the Blood Pressure... -
Page 15: Specifications
: 251(L) x 187(W) x 67(H) mm Safety Certifications Pressure indication Range : 0 – 327 mmHg Rossmax’s products comply with the standard of LVD and EMC Power Source : Input:100-240V, 50/60Hz 400mA Directire and affix the CE marking, could be placed in the market or Output:12V, 600mA put into service within the internal market of the European Union (EU). - Page 16 Accessories are not included. Opening or altering the instrument invalidates the guarantee. The guarantee does not cover damage, accidents or non-compliance with the instruction manual. Please contact your local seller/dealer or www.rossmax.com. Customer Name: ____________________________________________ Address: ____________________________________________________...
- Page 17 Manufacturer: Rossmax Swiss GmbH, Tramstrasse 16, CH-9442 Berneck, Switzerland www.rossmax.com...
