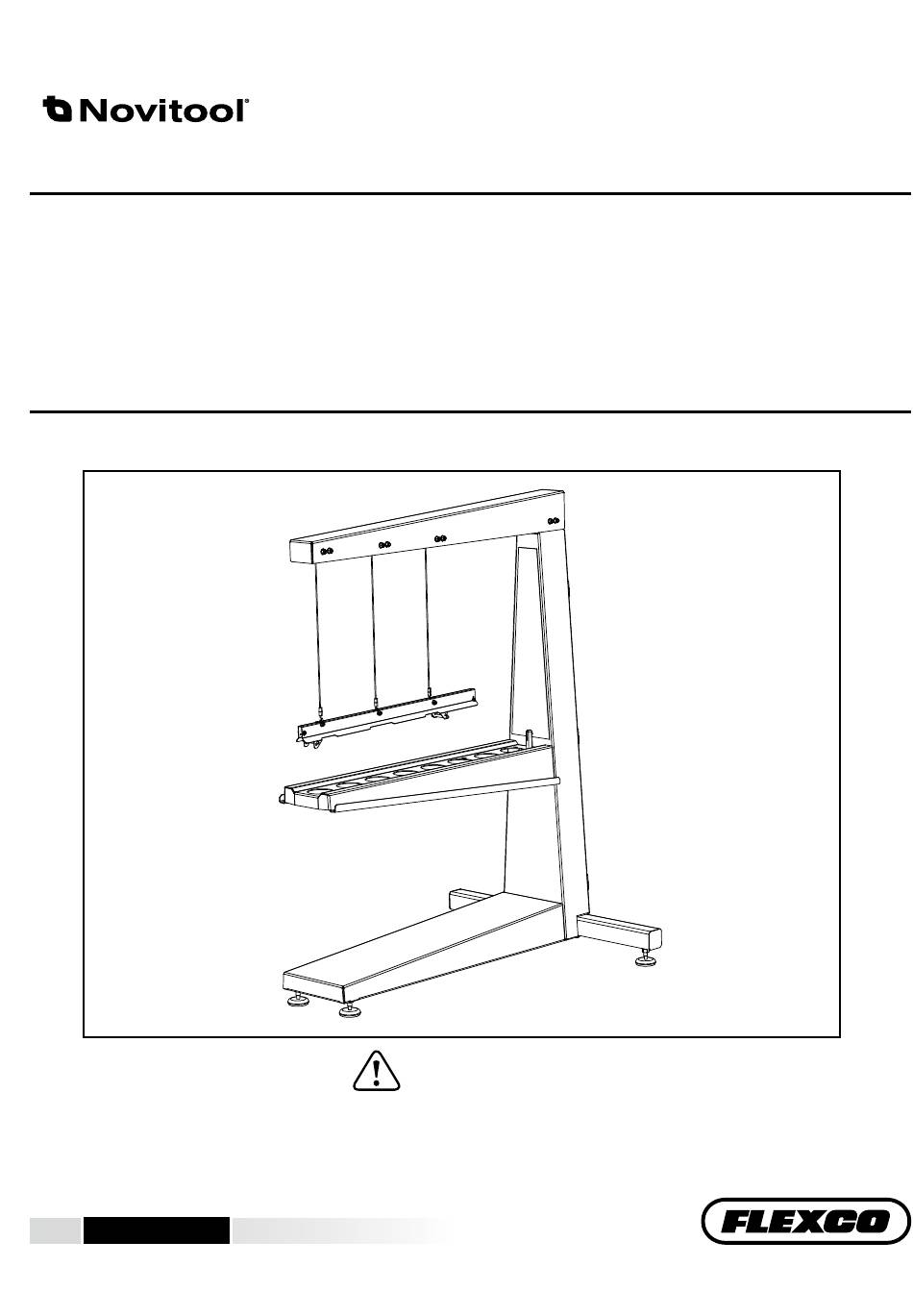

Aero
Press Stand
®
Safety and Operation Manual
Splicing Press Efficiency in the Fabrication Workshop
WARNING
IMPROPER OR UNSAFE use of this tool can result in serious bodily injury! This manual contains important information
about product function and safety. Please read and understand this manual BEFORE operating the tool. Please keep this
manual available for other users and owners before they use the tool. This manual should be stored in a safe place.
www.flexco.com
www.flexco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Novitool Aero 08080
Summary of Contents for Novitool Aero 08080
- Page 1 Aero Press Stand ® Safety and Operation Manual Splicing Press Efficiency in the Fabrication Workshop WARNING IMPROPER OR UNSAFE use of this tool can result in serious bodily injury! This manual contains important information about product function and safety. Please read and understand this manual BEFORE operating the tool. Please keep this manual available for other users and owners before they use the tool.
-
Page 2: Table Of Contents
Table of Contents Main Components Aero® Press Stand ............3 Description ..................... 4 Specifications....................4 General Safety Rules ..................5 Aero Stand™ Assembly .................. 7 Installing Aero® Press into Aero Press Stand ...........15 Operation of the Aero® Press Stand ............17 Removing the Aero®... -
Page 3: Main Components Aero® Press Stand
Main Components Aero Press Stand ® 7.13 7.11 7.10 7.12 Item No. Description Item No. Description 08309 AERO STAND COLUMN ASSEMBLY G1726 HEX NUT M12 × 1.75 ZN 08307 AERO STAND TOP BEAM ASSEMBLY G2027 HFBOLT M12 × 100 ZN 08313 AERO STAND BASE G2037... -
Page 4: Description
With the Aero® Press Stand, you are in possession of a quickly and conveniently. The lower beam of the quality Novitool® product from Flexco. The carefully Aero is fixed into the stationary cradle of the press developed and built machine gives you the option of stand. -
Page 5: General Safety Rules
General Safety Rules –Save These Instructions– 1. WORk AReA Signal words: CAUTION “DANGER” indicates an imminently hazardous situation which, if not avoided, will Keep your work area clean and well lit. result in death or serious injury. This signal Cluttered benches and dark areas invite word is limited to the most extreme situations. - Page 6 General Safety Rules -Save These Instructions- 4. SeRvICe AND MAINTeNANCe 5. AeRO STAND SAFeTY DANGER CAUTION When servicing a tool, use only original Read and understand the Aero Press operations replacement parts. Use of unauthorized parts or manual before using the press in the Aero Stand. failure to follow Maintenance Instructions, may create a risk of injury.
-
Page 7: Aero Stand Assembly
Aero Stand Assembly With column assembly laying on the floor, open door and remove packing material. Install pins in weight mechanism to Aero 1500 location. Slide all three weights to the top and fasten into place with the toggle clamp. Ensure that latch is secured to the weights. - Page 8 Aero Stand Assembly Ensure jam nuts are positioned onto the threaded shafts of the leveling feet (as shown) before installation. Install two leveling feet (item # 7.1) into Aero Stand base (item # 3). Ensure leveling feet are fully engaged through mounts. Ensure jam nuts are positioned onto the threaded shafts of the leveling feet (as shown) before installation.
- Page 9 Aero Stand Assembly Using two M12 × 100 mm bolts (item # 7.6) and two M12 nuts (item # 7.5) assemble cross support assembly (item # 6) into column assembly (item # 1). With the weight latch engaged, manually support the weights (position A), remove the pins and lower the weights, taking care to avoid pinch points.
- Page 10 Aero Stand Assembly Using six M8 × 20 mm screws (item # 7.3) assemble cradle (item # 4) to column assembly (item # 1) Note: Install all screws intially loose, tightening after all are installed. Raise the Aero 900 weight and engage the weight latch. Raise the Aero 1200 and 1500 weights and secure them in the uppermost position with the pins.
- Page 11 Aero Stand Assembly Install locating post (item # 7.13) into cradle (item # 4) using one M10 × 20 mm screw (item # 7.12), inserted from below. Position A for Aero 1200 and 1500. Position B for the Aero 900. Post is keyed for proper orientation. Using four M8 ×...
- Page 12 Aero Stand Assembly Cut the plastic ties that are holding the three cables looped and hanging from the top beam assembly. Inside the column assembly, ensure that the weights are secured with the weight latch. Follow the cables from the pulley located in the top beam from the back side of the Aero Stand assembly for proper positioning.
- Page 13 Aero Stand Assembly With longer extension (A) towards the column assembly, install lifting interface (item #5) to the three cables hanging from the top beam assembly using three M8 × 35 mm screws (item # 7.8) and three M8 nuts (item # 7.11).
- Page 14 Aero Stand Assembly With the Aero Stand located for operation, rotate the leveling feet as necessary to be sure that the stand is level. Assure that the leveling feet shafts remains fully engaged through the frame. Tighten all leveling feet jam nuts to the frame.
-
Page 15: Installing Aero® Press Into Aero Press Stand
Installing the Aero Press into the Aero Press Stand Place the lower beam of the Aero Press in the support cradle, with the locating post extending up through press handle opposite the control end. Avoid pinch point where locating post interfaces with the press. Load the upper beam of the Aero Press onto the lower beam. - Page 16 Installing the Aero Press into the Aero Press Stand If using umbilical cable extension, secure the upper beam connectors to the top of the Aero Press with Velcro fastening strip. With an Aero 900 or 1200 loaded into the stand, ensure weight latch is engaged and support counterweights (position A) labeled AERO 1500 and 1200.
-
Page 17: Operation Of The Aero Press Stand
Operation of the Aero Press Stand With the Aero Press upper and lower beams disconnected from each other, manually raise and lower the upper beam as needed for your splicing process. —17—... -
Page 18: Removing The Aero Press From The Aero Stand
Removing the Aero Press from the Aero Stand • Turn off the electrical power supply to the Aero Press • Disconnect power and umbilical cables • Open the vertical column door and use the latch to lock the active weights in the uppermost position •... -
Page 19: Warranty
Warranty Warranty provided is limited to defects in materials and workmanship. The warranty has a maturity of one year from the date of delivery. In this period, the necessary parts will be made available free of charge. Any further warranty claims, damages, or consequential damages are excluded. - Page 20 Unit 7 Kingsmark Freeway • Oakenshaw • Bradford, BD12 7HW • United Kingdom Tel: +44-1274-600-942 • Fax: +44-1274-673-644 • Email: sales@flexco.co.uk Visit www.flexco.com for other Flexco locations and products. ©2012 Flexible Steel Lacing Company. 12-13. For reorder: X3154...
