Use this document for quick installation and setup. If you experience problems or need more
information, see the product manuals available at the Teledyne LeCroy web site or in the
Documents folder in the PCIe Protocol Suite installation DVD.
1

Introduction

Teledyne LeCroy's PCI Express Gen3 x4 Slot to M.2 Adapter with SMBus
Support cards provide developers with an extremely versatile tool to
speed development of M.2 designs and to trouble-shoot existing M.2
issues. There are two versions of the adapter: M-Key and B-Key, both
adapters support hybrid B/M devices.
PCI Express Gen3 x4 Slot to M.2 Adapter Card with SMBus Support
®
PCI Express
Adapter with SMBus Support
User Manual and Quick Start Guide
Gen3 x4 Slot to M.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express Gen3 x4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teledyne Lecroy Express Gen3 x4

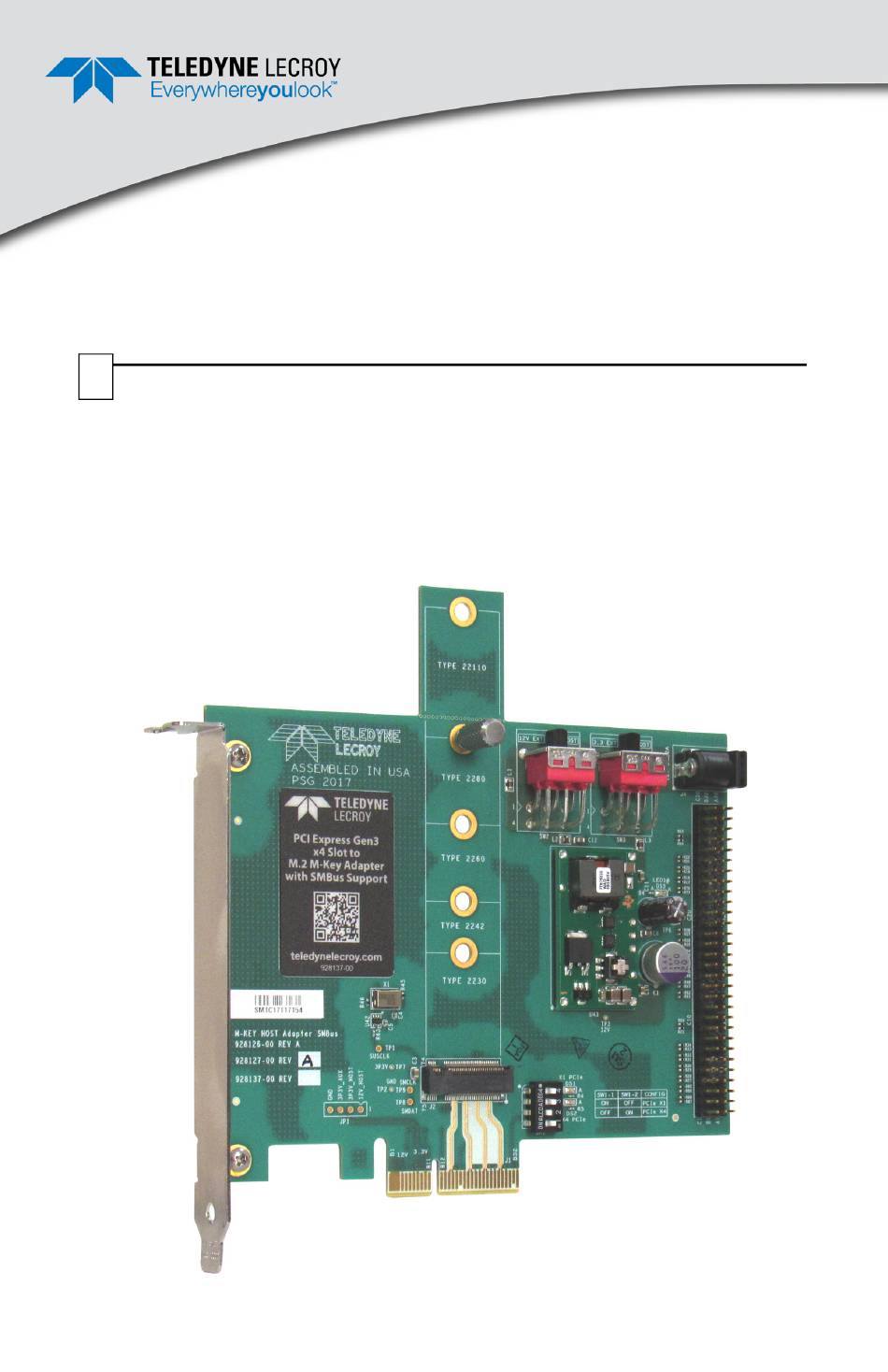

  • Page 1 User Manual and Quick Start Guide Use this document for quick installation and setup. If you experience problems or need more information, see the product manuals available at the Teledyne LeCroy web site or in the Documents folder in the PCIe Protocol Suite installation DVD.
  • Page 2 Summit™ product family of analyzers. Components The Teledyne LeCroy PCI Express Gen3 x4 Slot to M.2 Adapter with SMBus Support card kit has the following components: • PCI Express Gen3 x4 Slot to M.2 (M-Key or B-Key...
  • Page 3 Exploded View Installed Side Profile...
  • Page 4 Installed...
  • Page 5 Connections PCI Express Gen3 x4 Slot to M.2 M-Key Adapter with SMBus Support Interconnection Overview (DUT) Support Bracket Power Selection Switches SW2, SW3 The DUT support bracket allows mounting of M.2 devices of 30, 42, 60, 80 and 110 mm through use of a movable thumbscrew, standoff and locknut.
  • Page 6 Configuration Use the tables below to configure the adapter for specific test situations. SW1 Device Presence Table SW1.1 SW1.2 Presence Declared Reserved X1 Device X4 Device (Default) Reserved SW2 Power Selection Table SW2 Position 12V Power to Regulator 12V EXT From J4 DC Jack 12V HOST From PCIe Bus 12V (Default)
  • Page 7 J3 Header Table (pin out M-key adapter) Termination Signal Name Termination 1KPull down NC_PIN36 4.7KPull-up to 3.3V 1KPull down NC_PIN34 4.7KPull-up to 3.3V 1KPull down NC_PIN32 4.7KPull-up to 3.3V 1KPull down NC_PIN30 4.7KPull-up to 3.3V 1KPull down NC_PIN6 4.7KPull-up to 3.3V 1KPull down NC_PIN26 4.7KPull-up to 3.3V...
  • Page 8 Teledyne LeCroy. All other trademarks are property of their respective companies. Changes Product specifications are subject to change without notice. Teledyne LeCroy reserves the right to revise the information in this document without notice or penalty. Copyright © 2017 Teledyne LeCroy, Inc. All rights reserved.
