- Page 1 Operator's manual TKF 104 - 1 english...
- Page 3 (A). Working speed approx. 2.5 m/min Wear ear protection! Nominal power consumption 2900 W The hand-arm vibration is typically lower than Number of strokes under maximum load 400/min 2.5 m/s². Weight with handle 14.3 kg E254en1_02.doc TKF 104 - 1...
-
Page 4: Proper Use

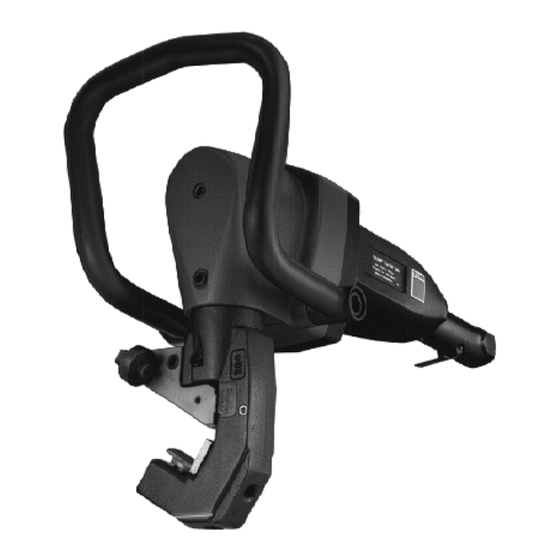

Proper use Danger of injury The TRUMPF TKF 104-1 bevelling machine a Hot chips are ejected from the chip ejector at pneumatic hand machine extremely high speeds. You should therefore use a swarf box to collect the ejected chips. •... -
Page 5: Before Initial Use
Check the bevel angle (length of bevel set). lever 1. Turning off the unit: Release lever 2 (the lever Set length of bevel angle springs back into initial position and the flow of compressed air is interrupted). E254en1_02.doc TKF 104 - 1... - Page 6 Supporting body • Tighten spindle (47) with clamping screw (54). Set screw (tightening) Clamping screw Wearing plate Set screw (supporting) Rest plate Spindle Reference edge Fig. 10980 Rest plate Supporting body Spindle Clamping screw Fig. 11408 TKF 104 - 1 E254en1_02.doc...
-
Page 7: Bevel Angle
Maintenance (mm) Grease the rectangular part of the cutting tool and the bore of the supporting body lightly with lubricating (mm) grease "S1" TRUMPF order no. 121486. ß (mm) See "F" in Fig. 10981 30° Ensure that the penetration depth is correct. - Page 8 Turn the eccentric shaft (21) until the cutting tool (9) reaches its lowest point (LT = lower dead centre). Cutting tool Eccentric shaft Clamping screw Support Supporting body Depth of penetration = approx. 1 mm Fig. 11042 TKF 104 - 1 E254en1_02.doc...
- Page 9 K = Marking on the upper end to distinguish between a standard cutting tool for mild steel and a cutting tool for high-tensile sheets 110399 Sharpening diagram for cutting tools for the TKF 104 bevelling machine Fig. 9666 E254en1_02.doc TKF 104 - 1...
-
Page 10: Maintenance
(15 mm under the filler neck when the center axle is horizontal) Note: If the oil level is too high, oil will spill out of the motor housing exhaust opening Fig. 11425 TKF 104 - 1 E254en1_02.doc... - Page 11 Please note the specifications on the output plate. Stripper will find list TRUMPF Wearing plate representatives at the back of this operating Supporting body manual. Grease nipple for lubrication of cutting tool guide with a grease gun (order no. 068624) Fig. 14194 E254en1_02.doc TKF 104 - 1...
-
Page 12: Original Accessories
Cutting tool for high-tensile materials 089335 Cutting tool for aluminium 005014 • When ordering spare parts or wearing parts, Special heavy-duty cutting tool please use the 6-digit TRUMPF stock number of for machining high-tensile materials 110399 the respective part. Stripper 30°/37.5°/45°(40)* 104313/314/315 •...
