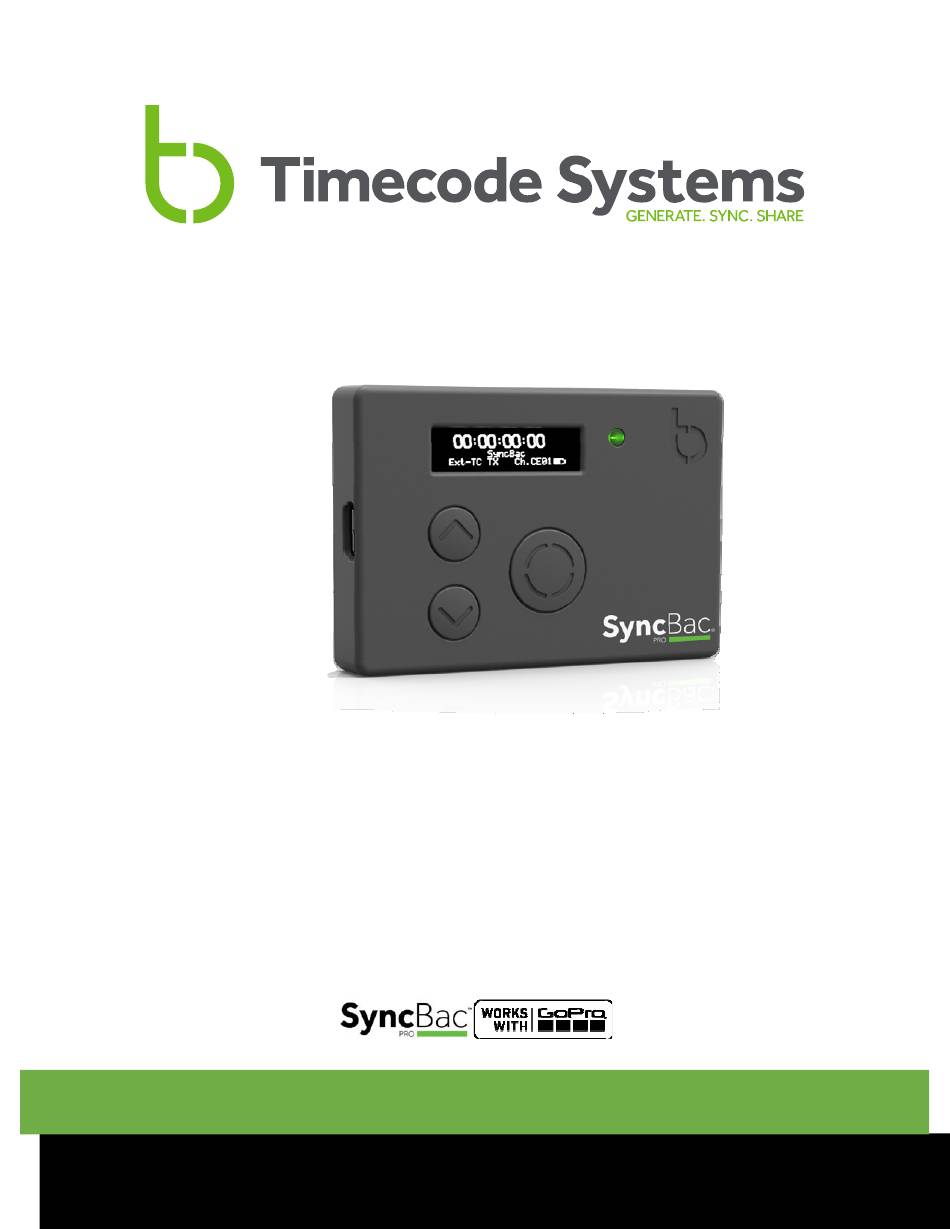

- Page 1 Clip and Go For the latest manual please visit: www.timecodesystems.com/support/product-manuals SyncBac PRO quick start guide...
- Page 2 All rights reserved. No part of this publication may be reproduced without the expressed written permission of Timecode Systems Ltd. Timecode Systems Ltd shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a...
- Page 3 It is a highly accurate timecode generator and multi-channel digital timecode transceiver. It can be used standalone with other SyncBac PRO units for accurate multicam sync between GoPro’s or along with the :pulse mini base station as a complete ‘on-set’ solution for syncing GoPros with other PRO cameras and PRO audio recorders.
-
Page 4: Mounting Solutions
Ports Mini USB 2.0 Socket, 5V power IN. Firmware Updates via the Timecode Systems PC and Mac USB Updater Applications. Also charges the HERO 4 camera (when attached) Please visit www.timecodesystems.com/support/firmware for instructions on how to update the firmware of your SyncBac PRO product. -
Page 5: Button Basics
Customise On-screen menus allow you to easily customise the settings of the Timecode Systems SyncBac PRO to meet the exact needs of your shoot. The default display shows (on time-out also): TC + Unit Name + MODE + BLINK ID + RF CHANNEL+ SIGNAL STRENGTH + BATTERY STATUS... - Page 6 More on menus Each menu allows further customisation of your Timecode Systems SyncBac PRO Timecode Mode. Choose from five settings: • GP Master TX. This is a mode where the unit is the 'master clock', transmitting T/C to all SyncBac PRO 'RF slave' devices.
- Page 7 This allows for complete monitoring and control of all connected “BLINK enabled” Timecode Systems’ devices and is built to allow for long-range remote control and status of any supported & connected third-party accessories, such as SyncBac PRO and HERO 4 silver and black cameras.
-
Page 8: Technical Specification
External power: Mini USB (5V DC). Internal power: Built in Li-Polymer (3.7V battery) T/C input: via a ‘GP Master’ SyncBac PRO or Timecode Systems: pulse bae station T/C outputs: HERoBus connector, embedded timecode metadata in mp4 camera media. -
Page 9: Quality Declarations
Quality declarations Use of External Antenna(s): This device has been approved by Industry Canada & FCC to operate with the antenna types listed below with the maximum permissible gain of 5.4 dBi and required antenna impedance of 50 Ohms for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - Page 10 Industry Canada Statements: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 11: Warranty And Technical Support
In the event of any defects determined to be covered by this warranty, TIMECODE SYSTEMS LIMITED will, at its sole option, repair or replace the defective instrument without charge. To obtain warranty service the defective instrument must be returned within one (1) year from purchase to:... - Page 12 For the latest manual please visit: www.timecodesystems.com/support/product-manuals Timecode Systems Unit 6, Elgar Business Centre, Hallow Worcester, WR2 6NJ, UK +44 (0) 1700 808 600 contact@timecodesystems.com http://www.timecodesystems.com...
