Operation Limits - mycom 4032**C Series Instruction Manual

2.3.2

Operation Limits

Items
Maximum discharge pressure
Minimum suction pressure
Maximum intermediate pressure
Minimum intermediate pressure
Oil supply pressure
･ Maximum journal lubrication pressure
･ Minimum journal lubrication pressure
･ Minimum oil injection lubrication pressure
Maximum Suction temperature
Minimum suction temperature
Maximum low-stage discharge temperature
Maximum high-stage discharge temperature
Maximum oil supply temperature
Minimum oil supply temperature
Maximum male rotor rotation speed
Minimum male rotor rotation speed
Note: Unless otherwise noted, the pressure unit MPa represents the gauge pressure in this manual.
 If operation at partial load, which is not greater than 30 % of the indicated load, is
continued for a long time except when starting up the machine, abnormal noises or
vibration may be generated. So avoid such operation.
 Repeated startup and stop in a short period is harmful not for the startup devices
and electric machinery but also for the compressor itself. For information on the
start/stop limitations, refer to each instruction manual. Wait at least 15 minutes
after stopping the compressor before restarting it.
Compound 2-stage Screw Compressor 4032**C
Chapter 2 Compressor Specifications and Structure

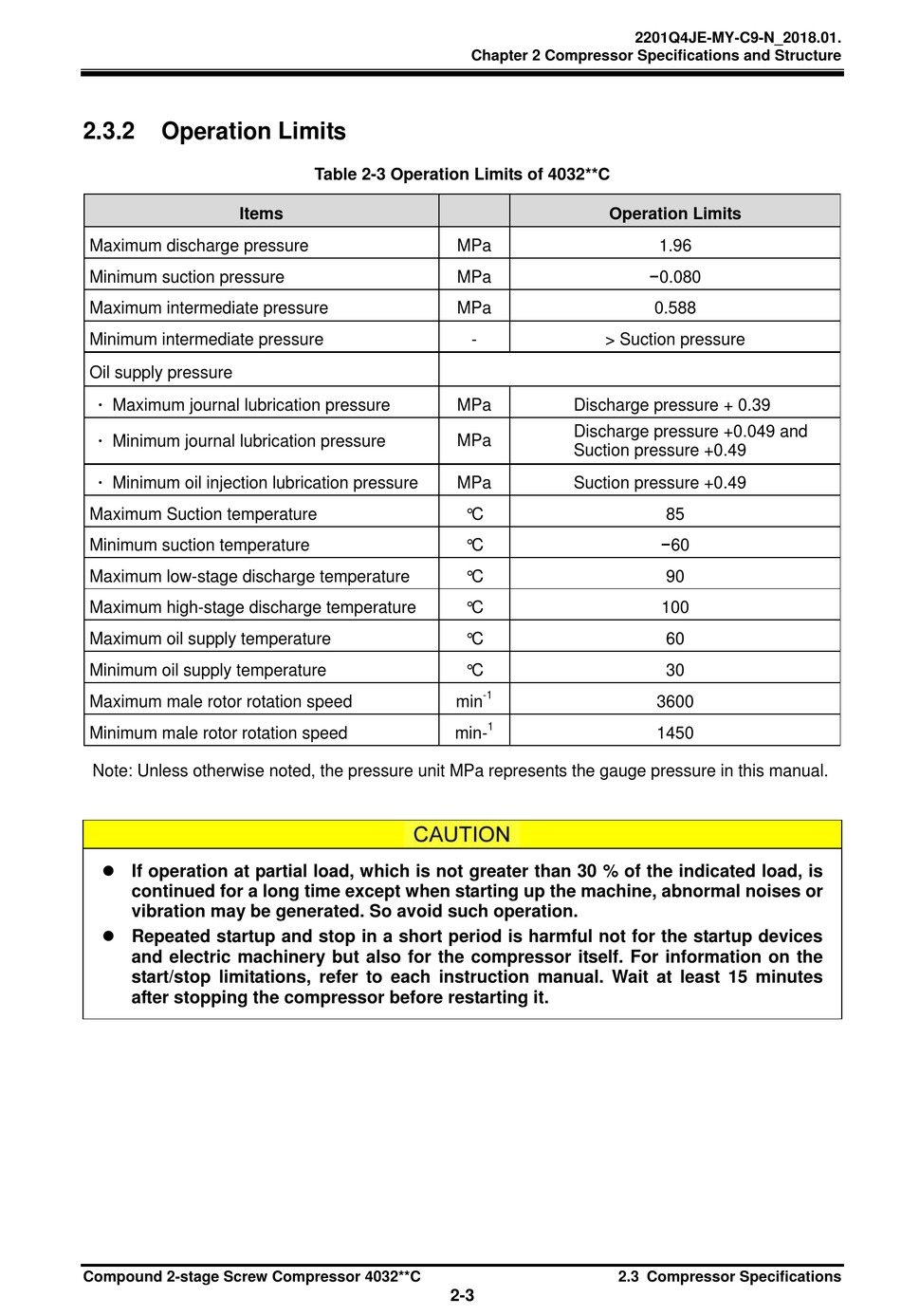

Table 2-3 Operation Limits of 4032**C
MPa
MPa
MPa
-
MPa
MPa
MPa
°C
°C
°C
°C
°C
°C
-1
min
min-
2-3
2201Q4JE-MY-C9-N_2018.01.
Operation Limits
−0.080
0.588
> Suction pressure
Discharge pressure + 0.39
Discharge pressure +0.049 and
Suction pressure +0.49
Suction pressure +0.49
3600
1
1450
2.3 Compressor Specifications
1.96
85
−60
90
100
60
30
