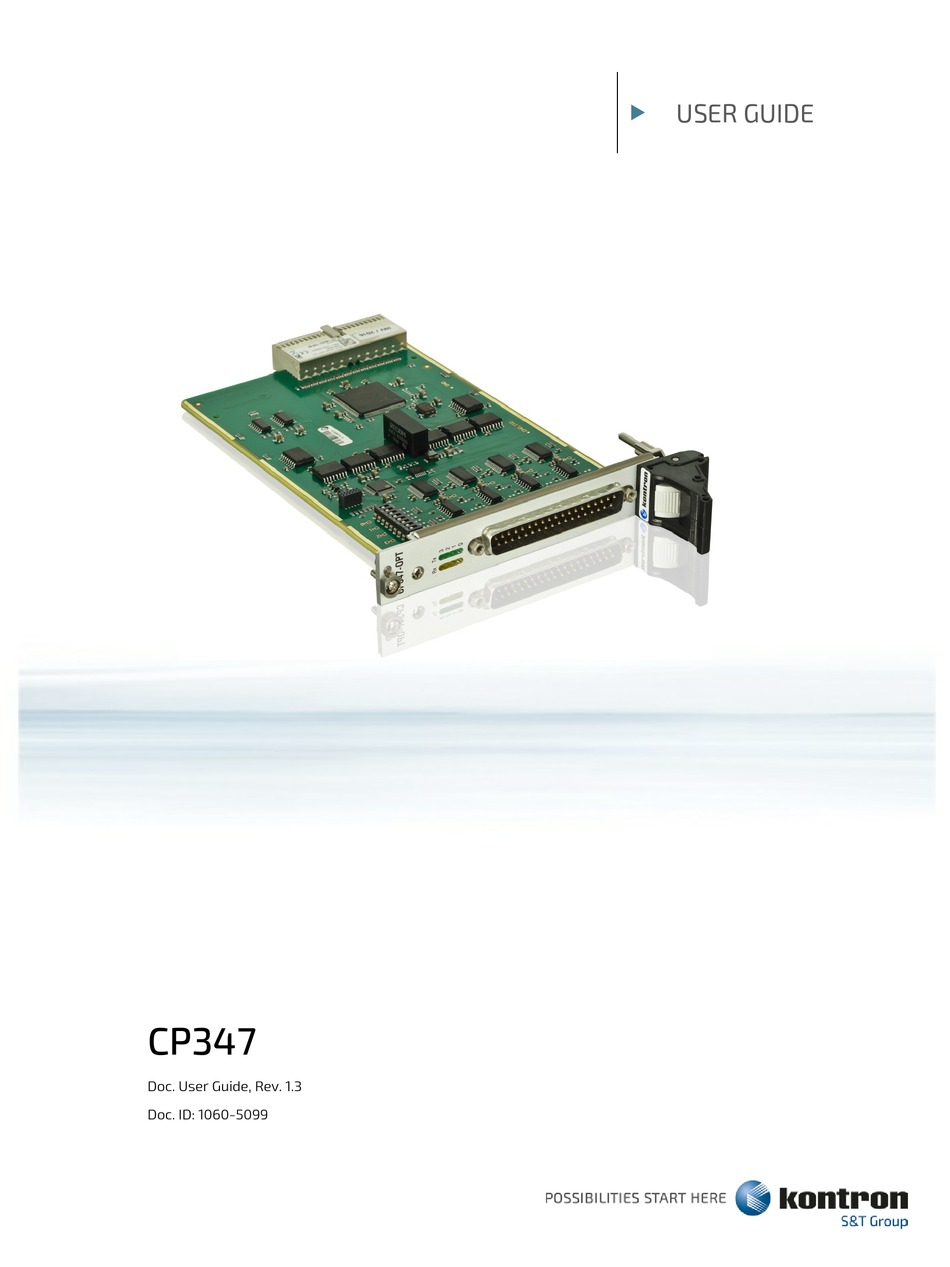

  • Page 1  USER GUIDE CP347 Doc. User Guide, Rev. 1.3 Doc. ID: 1060-5099...
  • Page 2 CP347 – User Guide, Rev. 1.3 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.

  • Page 5: Symbols

    CP347 – User Guide, Rev. 1.3 Symbols The following symbols may be used in this user guide. DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 6 Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
  • Page 7 General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 8: Table Of Contents

    CP347 – User Guide, Rev. 1.3 Table of Content Symbols ..........................................5 Table of Content ........................................ 8 List of Tables ........................................9 List of Figures ........................................9 Introduction ......................................10 1.1. Board Overview ......................................10 1.2. Board Diagrams ......................................11 1.2.1.

  • Page 9: List Of Tables

    Table 5: 37-Pin D-Sub Front Panel Connector Pin Assignment ....................... 20 Table 6: 9-Pin D-Sub Front Panel Connector Pin Assignment ......................21 Table 7: Serial Mode DIP Switch CP347 Configuration ........................22 Table 8: RS422/RS485 Termination Jumper Settings ........................22 Table 9: RS485 Transceiver Control (RTS# and DTS#) Resistor Configuration .................

  • Page 10: 1/ Introduction

    Additionally, four pairs of LEDs indicate the four serial I/O channels’ receive and transmit data transfer operations. The CP347 is galvanic isolated between the system side and the serial I/O front panel D-sub connector for all four channels.

  • Page 11: Board Diagrams

    CP347 – User Guide, Rev. 1.3 1.2. Board Diagrams Figure 1: CP347 Functional Block Diagram www.kontron.com // 11...

  • Page 12: Front Panel

    1.2.1.1. Front Panel Adapter A front panel adapter cable (CP-ADAP-CP346-CP347) can be connected to the 37-pin D-Sub front panel connector to provide discrete access to the separate serial I/O channels. This adapter cable terminates on the user side with four male 9-pin D-Sub connectors, one per serial I/O channel.

  • Page 13: Board Layout

    CP347 – User Guide, Rev. 1.3 1.2.2. Board Layout Figure 3: CP347 Board Layout (Top View) Connector and Component Description Item Connector Description Chapter Con2 37-pin D-Sub front panel connector 2.3.1 Con3 12-pin JTAG/ISP connector 2.3.3 Con1 CompactPCI connector J1 in the CompactPCI specification 2.3.4...
  • Page 14 CP347 – User Guide, Rev. 1.3 Item Configurable Description Chapter Components 2x 0 Ω resistors to configure CPLD RTS# or DTR# inputs for channel 1 R44, R45 3.1.3 (Listed from left to right) 2x 0 Ω resistors to configure CPLD RTS# or DTR# inputs for channel 0 R32, R33 3.1.3...

  • Page 15: Technical Specification

    CP347 – User Guide, Rev. 1.3 1.3. Technical Specification Table 1: CP347 Technical Specifications Form Factor Form Factor 3U/4HP CompactPCI board Dimensions and Weight 100 mm x 160 mm (3U card size) and 142 gram 3,94” x 6.3” single height and 0.31 pounds...

  • Page 16: Environmental Considerations

    CP347 – User Guide, Rev. 1.3 1.4. Environmental Considerations Table 2: Environmental Specification Environmental Specification Operating Temperature 0°C +70°C Standard range In a passive cooled system, the maximum ambient temperature is +48°C. Operating Temperature -40°C +85°C Extended range In a passive cooled system, the maximum ambient temperature is +63 °C.

  • Page 17: Standards

    CP347 – User Guide, Rev. 1.3 1.5. Standards Table 3: Applied Standards: Standard Type Description Emission EN 55022 Radiated emission Information technology equipment, radio disturbance characteristics- limits and methods of measurement EN 61000-6-3 EMC emmission Generic Emission standard, part 3...

  • Page 18: Power Requirements

    1.6. Power Requirements The CP347’s supply voltage is 5 V DC. An on-board 5 V/5 V, DC/DC voltage isolator, isolates the serial channels from the CompactPCI interface. The CP347 provides a universal CompactPCI interface and can work properly with 5 V and 3.3 V PCI V (I/O) signaling.

  • Page 19: 2/ Functional Description

    OSI levels. The main functions implemented on the CP347 board are the OSI Layer 2 data link control for RS232, RS422 and RS485 communication purposes, and the OSI Layer 1 physical signal level adaptation for the RS232, RS422 and RS485 interfaces.

  • Page 20: Front Panel Serial I/O Connector

    CP347 – User Guide, Rev. 1.3 one per serial I/O channel. This chapter includes pin assignment information for both the 37-pin D-Sub front panel connector and the four-channel front panel adapter cable’s 9-pin D-Sub connectors. 2.3.1. Front Panel Serial I/O Connector The front panel serial I/O, 37-pin D-Sub dual row, connector comprises of the signals for channels 0 to 3.

  • Page 21: Front Panel Adapter Cable 37-Pin To 4X 9-Pin

    2.3.4. CompactPCI Connector The CP347’s CompactPCI connector is known as Con1 within this user guide and is located at the rear of the CP347. The CompactPCI connector Con1 corresponds to the CompactPCI connector known as J1 within the CompactPCI specification. For information regarding the pin assignment of the CompactPCI connector, refer to the CompactPCI Specification.

  • Page 22: 3/ Configuration

    Serial Mode Configuration The CP347 offers the possibility to configure each channel’s operation mode with either a per default mounted eight- port DIP switch (SW1) or with eight 0 Ω resistors (R16- R23). Because the switches are implemented as GND switches, and the DIP switch and the resistor option are wired OR, it is possible to use both options.

  • Page 23: Handshake Control In Half Duplex Rs485 Mode

    RTS# or DTS# outputs signals to control the RS485 enable input. The CP347 RTS# or DTR # control signal to the CPLD are configurable through resistor assembly. For more information on the required resistor configuration, see table 9 below where ’Open’ means a resistor is not assembled and ‘Set’...

  • Page 24: 4/ Installation

    Before installing the CP347 in a CompactPCI backplane slot, read this installation chapter thoroughly for guidelines on positioning, installing and removing the board. The CP347’s front panel should be safely secured by screwing the front panel to the chassis to avoid loosening of the board through vibration and to ensure an adequate earth connection.

  • Page 25: Standard Board Installation Procedure

    To remove the CP347 from a CompactPCI system, proceed as follows: Observe the safety requirements indicated in Chapter 4.1 Hardware Installation. Incorrect removal of the CP347 can damage the CP347 or other board in the system. Read the following instructions carefully.

  • Page 26: Cabling

    To provide separate serial I/O channels, a four-channel front panel adapter cable (CP-ADAP-CP346-CP347) can be connected to the CP347’s 37-pin D-Sub front panel connector. The front panel adapter terminates on the user side with four male 9-pin D-Sub connectors that include the signals of channels 0 to 3.

  • Page 27: Software Installation

    4.5. Software Installation Drivers for Windows ®, Linux ®, and VxWorks® are available for the CP347. For more detailed driver installation information, refer to the relevant CP347 driver documentation. For more information, contact Kontron Support. Install all boards required for the application before installing the driver software.

  • Page 28: List Of Acronyms

    CP347 – User Guide, Rev. 1.3 List of Acronyms Application Programming Interface Peripheral Component Interface Base Management Controller PCIe PCI-Express Command-Line Interface PECI Platform Environment Control Interface CPLD Complex Programmable Logic Device PICMG® PCI Industrial Computer Manufacturers Group Clear to Send...
  • Page 29 CP347 – User Guide, Rev. 1.3 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications. With its standard products and tailor-made solutions based on highly reliable state-of-the-art embedded technologies, Kontron provides secure and innovative applications for a variety of industries.
