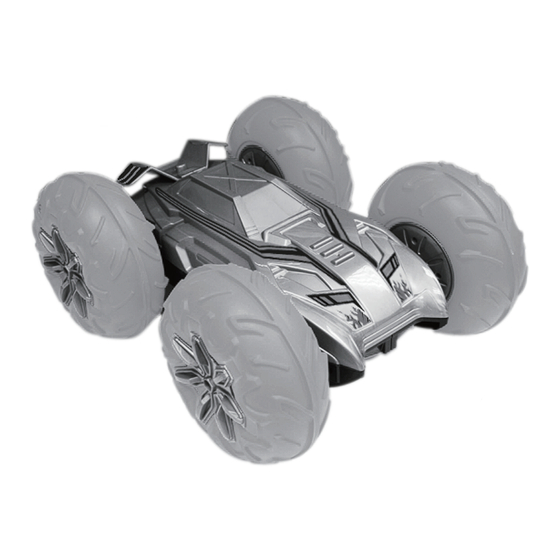

Fast Lane HyperDrive 3.0 User Manual

Battery Requirement
1. Vehicle: 1 x 11.1V Lithium-ion rechargeable battery pack
2. Transmitter: 1 x 9V Battery
Air Pump with needle
11.1V
Rechargeable
Battery Pack
11.1V
1500mAh
Charger
Docking
Tire Gauge
SAFETY PRECAUTIONS (Keep manual for future reference)
This vehicle is not recommended for children under the age of 8 years.
Please read all of the instructions before operating this vehicle.
Always follow general safety rules while operating vehicle: avoid hitting pets, furniture or people.
Do not pick up vehicle while it is in motion, keep hands,
hair and clothing away from this vehicle when
the power switch is turned to the "ON" position. Remove battery pack when vehicle is stored.
Avoid tire contact on painted or varnished surfaces.
The HyperDrive3.0 is built with an automatic shut-off function if the
vehicle reaches excessive temperature during operation.
If the vehicle stops after prolonged period of operation, turn off vehicle and controller,
remove battery from vehicle and cease operation for ten (10) minutes.
Reinsert battery and resume play.
2-SIDED BODY DESIGN
SIDE A
HARDENED STEEL
AXLES FOR
ADDED STRENGTH

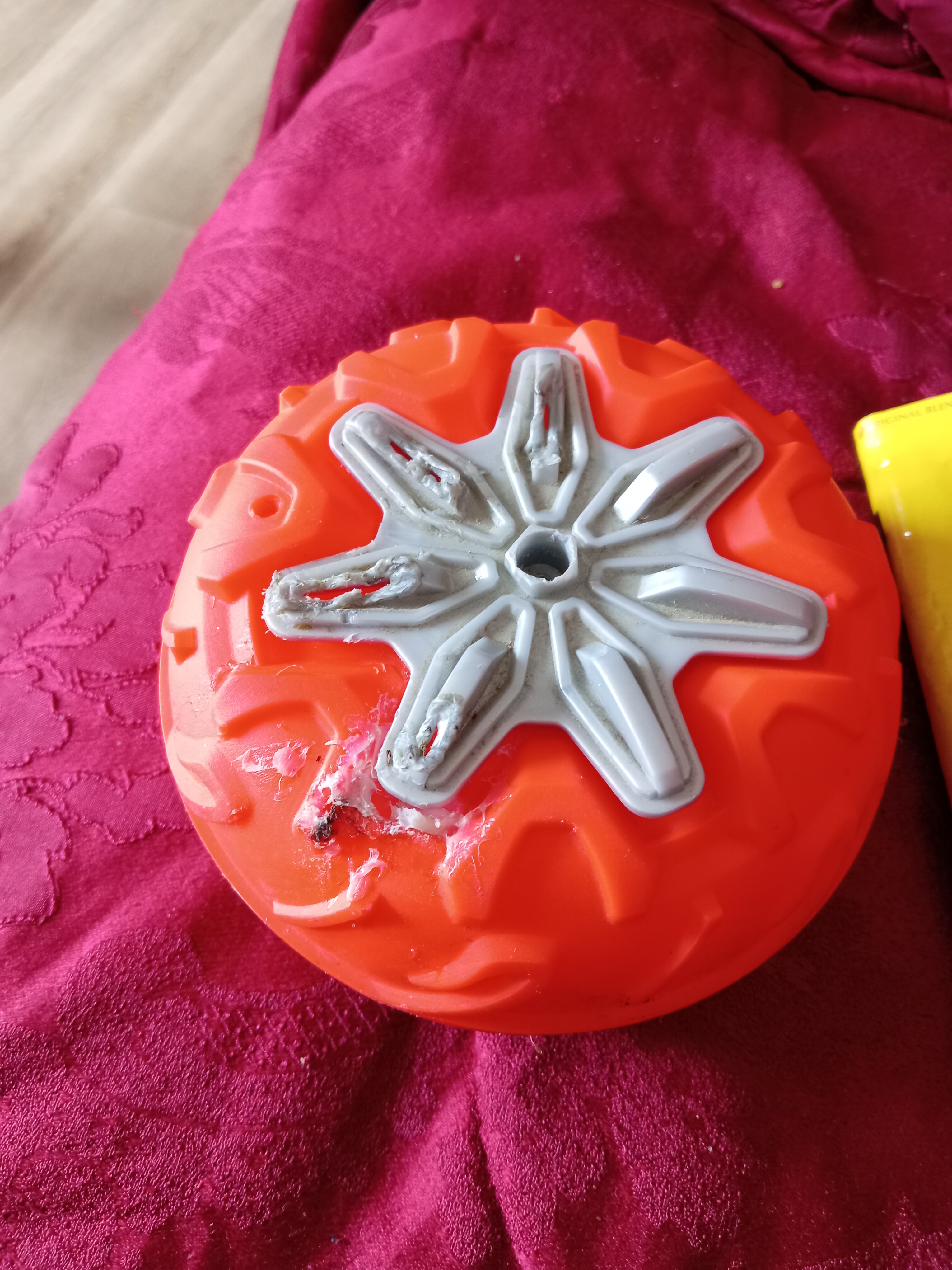

6.5-INCH INFLATABLE
TIRE FOR MASSIVE
HIDDEN INTERNAL
SUPERBOUNCE ACTION!
ANTENNA FOR
LONG RANGE
ACTION
SUPER-GRIP TIRE
TREAD FOR
BETTER
DUAL AND
OFF- ROAD
MEGATORQUE
TRACTION
ACTION
• FULL- THROTTLE, MAXIMUM-SPEED OPERATION
• SCALE SPEEDS OVER 225 MPH
• UP TO 60-FEET EFFECTIVE RANGE
5F6203C
8
I N PUT: 120V~60Hz 300mA OUTPUT: 1 2V=750mA
WARNING: Charger that is supplied with the toy should be
regularly examined for potential hazards, such as damage
to the plug, enclosure, or other parts. In the event of such
damage, the charger or toy must not be used until that damage
has been properly repaired. DO NOT use any other charger
other than one supplied.
The Included 11.1V rechargeable battery pack is NOT
charged prior to shipment and must be charged at
least 8 hours befotr the first use.
Charging the 11.1V Rechargeable Battery
Pack for the Vehicle:
1. Plug the Docking to the Charger.
2. Insert 11.1V rechargeable battery pack securely into
the charger (as shown).
Be sure the arrows are properly matched.
3. Allow battery to charge for a minimum of 8 hours on the
initial first charges. Susequent charges require only 4 hours.
4. Play time approximately 15 minutes depending on
terrain and driving style.
5. The Charger is intended to be correctly orientated in a
vertical or floor mount position.
6. When charging is completed. unplug the charger form
the AC socket.
7. Releases the 11.1V rechargeable battery pack form the
battery charger.
ATTENTION FOR PARENTS:
The Charger & 11.1V Battery Pack need to be periodically examined
for potential hazards. Any potentially hazardous parts need to be
repaired or replaced.
ACTION FEATURES
Fig.1
SIDE B
TYRE INFLATION INSTRUCTIONS
Fig.2
1. Locate and remove the inflation needle that is attached to the air pump.
2. Attach the inflation needle to the air pump. DO NOT USE PUMPS
WITH COMPRESSED AIR!
3. Make sure inflation needle is clean. Moisten it and slowly insert it straight
into the tire inflation hole. (Fig.2)
4. Continually check the tire size by placing the tire inside the gauge.
DO NOT OVERINFLATE. Once tire is the proper size (fits perfectly in gauge),
Inflation
you are ready to run your vehicle. Keep tire pattern for future use.
Hole
5. This is NOT a toy. This is a tool and should not be used by a child without
parent supervision.
IMPORTANT: TIRES MAY DEFLATE DURING
SHIPPING OR STORAGE
BATTERY REQUIREMENTS/INSTALLATION FOR VEHICLE
Recharging -
To operate your vehicle, you will need a 11.1V Battery Pack (included).
1. Insert the battery pack to the charger with docking.
PLEASE NOTE: The battery pack will become hot during use,
2. Plug the charger into an electrical outlet.
so care should be taken whenever you handle it.
3. Charge the battery for approximately 4 hours.
4. After charging is complete, detach the charger.
from the outlet and disconnect the battery
from the charger.
Insert the battery pack to the charger
Caution
• Do not charge battery pack immediately following
use - allow battery pack to cool down.
• Avoid short circuits - they can cause overheating,
burning and other damages to the battery and charger.
• The battery charger should only be used to recharge
the specified battery pack. Only charge one battery at a time.
• Do not use the charger as an outlet for other electrical appliances.
• Keep the battery pack and charger out of the hands of infants and
small children while in use.
• Do not charge near fire, hot temperatures, or wet damp areas.
• Charger may become warm while in use, allow sufficient space during this time.
• If the battery pack remains weak after proper charging techniques, dispose of
it correctly and replace with a new battery.
• Disconnect the supply before making/breaking the battery connection.
• Only use this battery charger for the included battery.
BATTERY REQUIREMENTS/INSTALLATION FOR TRANSMITTER
To operate your transmitter you will need a 9 Volt battery (included).
1. Remove battery cover as shown and install a new 9 Volt battery. Replace cover. Move power
button ON and the red LED light will come on. This will show you that the battery is good and
the transmitter is ready for operation.
PLEASE NOTE: Vehicle power switch must be in the ON position to receive commands from
the transmitter.
OFF OFF ON ON
2. Insert antenna into hole in the transmitter and screw it in clockwise.
I
3. Please change the battery to fresh one when LED is dim
+
Needle
1. Fully charge battery pack following
manufacturer's instructions. Rotate
battery cover latches on rear of vehicle
to the open position. Lift to remove cover.
2. Insert 11.1V battery pack.
3. Replace cover. Rotate latches to closed position.
4. Turn power switch to the ON position.
