alatech SC001BLE User Manual

User Guide for SC001BLE
Smart Speed and Cadence sensor
Bluetooth 4.0 bicycle speed and cadence
sensor operation guide
• This product is suitable to ALATECH app and
other apps that support Bluetooth Smart (BLE 4.0).
• Please go to Apple iTune to download the free
ALA COACH+ app.
Ex:
iPhone 4s
iPhone 5
iPod touch 5
users can
select suitable
devices.
Sensing zone for cadence
magnet
When assembling cadence magnet,
adjust the position of the magnet
such that its distance to SC001BLE is
within 1 cm, so that they would not
Cadence-sensing
collide with each other when stepping
magnet
on the pedals.

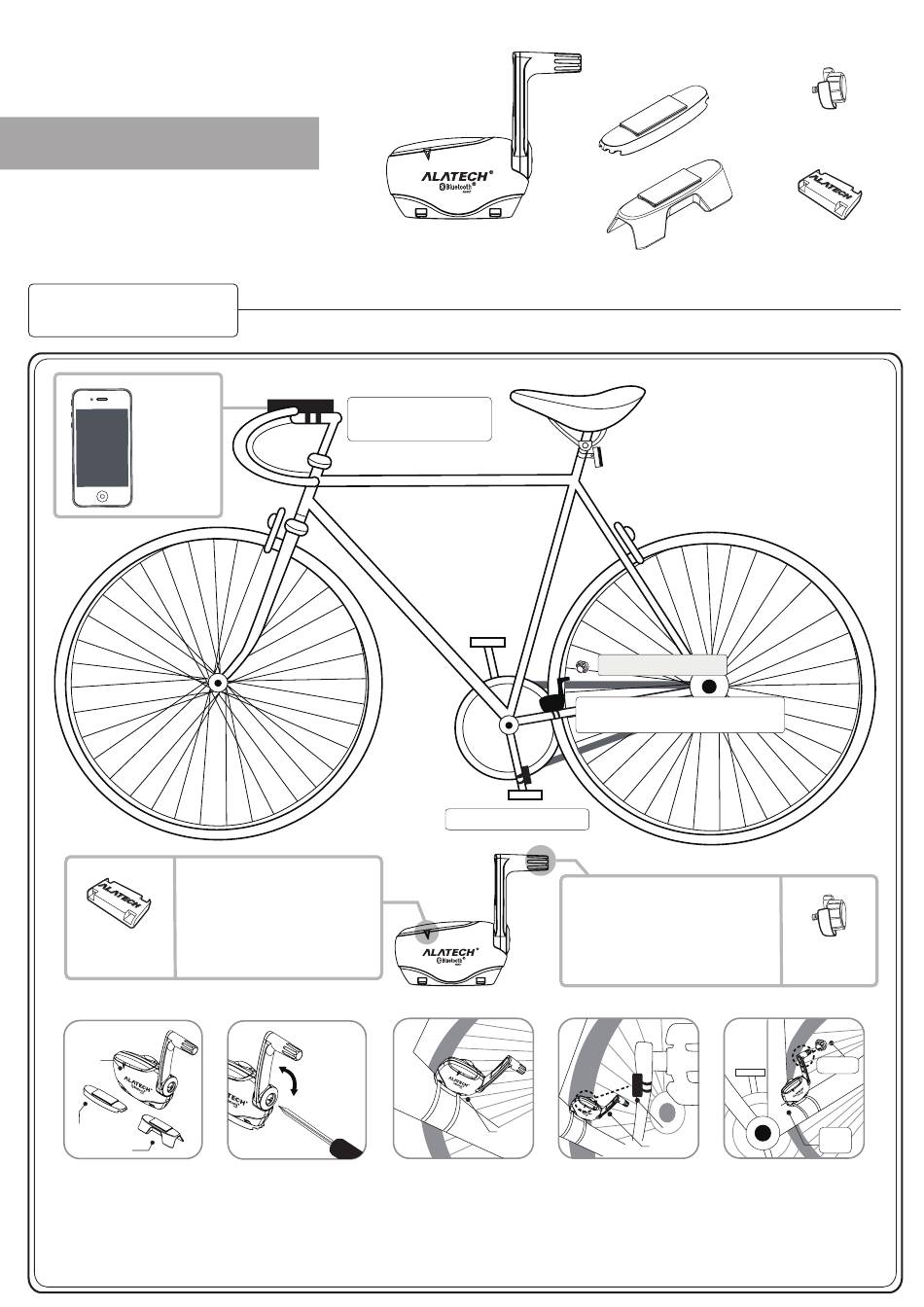

A: Installing the speed and cadence sensor

1.
SC001BLE
Rubber pad type A
or
Rubber pad type B
1. Take one SC001BLE and pick
a suitable rubber pad. Assemble
it to underside of the SC001BLE
sensor.
Bluetooth BLE wireless transfer
Speed and cadence sensor for
the bicycle
(SC001BLE)
Bluetooth mobile
receptor device
2.
2. Before assembling to chain 3. Have the speed and cadence
stay of the bicycle, be sure the sensor Logo face outward and
rotating axis for SC001BLE do secure it together with a rubber
not hit spokes. It is recommended stand via straps on the chain
to take a 3-mm screw driver to stay.
loosen the screws and tighten
them again after having adjusted
to a suitable angle.
A.
Cadence magnet
Sensing zone for speed magnet
When assembling speed magnet, adjust
the position of the magnet
such that its distance to SC001BLE is
within 1 cm, so that they would not collide
with each other when stepping on the
pedals.
3. 4.
SC001BLE
4. Have the cadence-sensing magnet
Logo face the sensor and fix it on the
inner side of pedal crank arm with straps.
Adjust the position of magnet such that
the distance from the magnet to the
arrow-pointed spot in cadence-sensing
zone is within 1 cm, so that they would
not collide with each other when
stepping on the pedals.
Rubber pad
type A
Rubber pad
type B
Speed magnet
Speed and cadence sensor
(SC001BLE)
5.
Magnet
SC001BLE
5. Have the speed-sensing magnet
face the sensor (SC001BLE) and
lock it on the spoke lines of the rear
wheel.
Adjust the position of magnet such
that the magnet is of the same
height as the speed-sensing zone.
Distance of 1 cm between each
other is the optimal sensing distance.
Speed-sensing
magnet
Cadence-sensing
magnet
English
Speed-sensing
magnet
Magnet
SC001BLE
