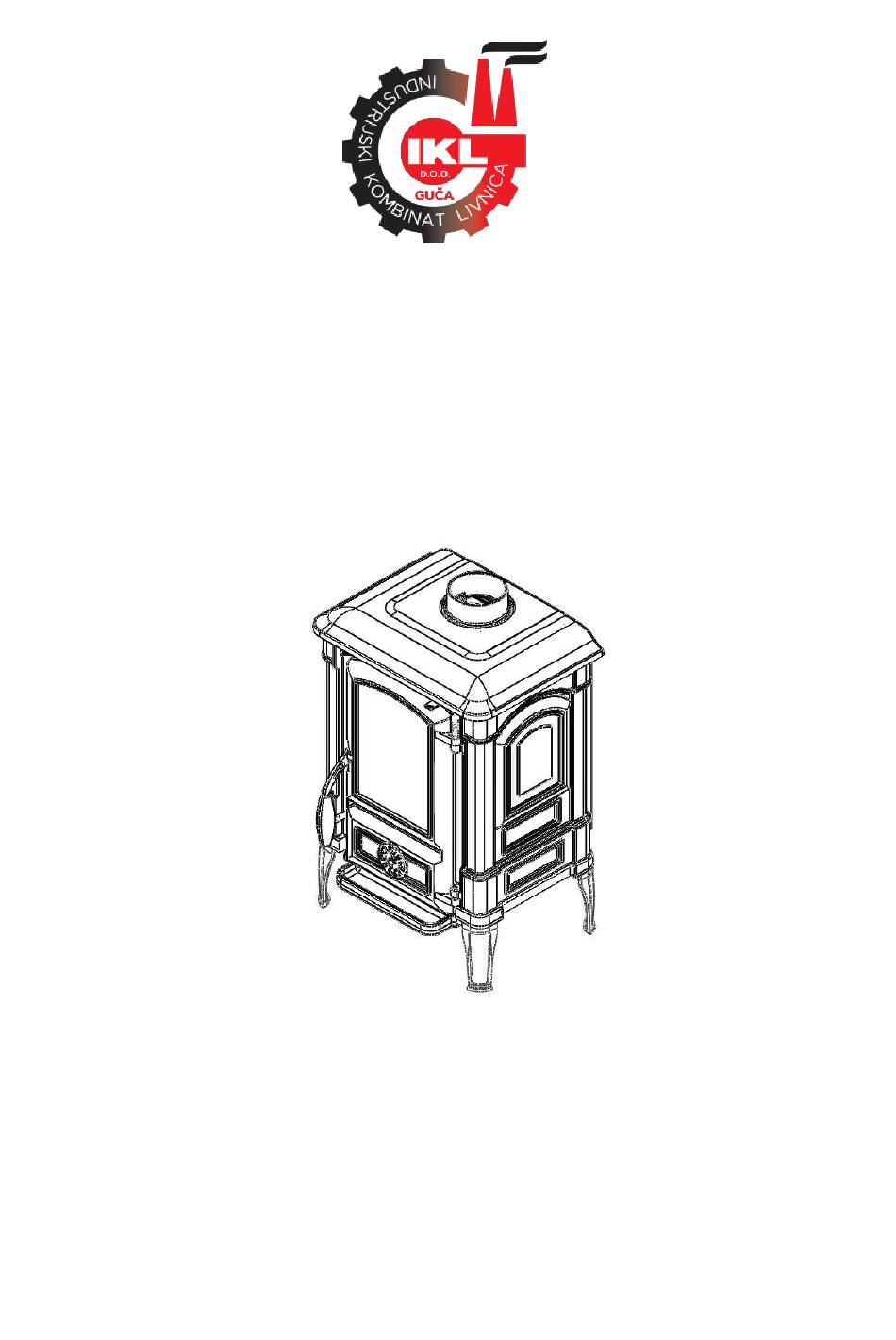

- Page 1 Model: ARINA USER MANUAL IKL-INDUSTRIJSKI KOMBINAT LIVNICA DOO GUČA Srbija,32230 Guča, Albanske spomenice bb Tel/centrala:+381(0)32 306 000 , prodaja i servis;+381(0)32 854 305...
-
Page 2: Table Of Contents
Dear customer, First of all we would like to thank you for having chosen us. You will be satisfied with your choice, as our stove is in the leading category of the similar products due to its features and design. Yours sincerely, GUČA CONTENTS:... -
Page 3: Introduction
1. INTRODUCTION Read the instructions carefully and respect the rules and recommendations. Hereinafter you will find the date regarding the stove itself, as well as the recommendations for the installation and maintenance of the stove. The efficiency of a stove depends on its correct installation, which must be carried out by a professional following the highest standards and the safety regulations in force. -
Page 4: Working Principle Of The Stove
2. TECHNICAL FEATURES Definition: wood/coal-burning stove tested according to: EN 13240 Constructive System Rating power in kW Efficiency in % Pipe diameter in mm 120 / 150 Maximum quantity of fuel-wood in kg Mean content of CO to 13% O in % 0.0691 Emission of exhaust gasses in C°... -
Page 5: The Flue
3.3 Lighting the stove for the first time The first time the stove is lit, there will be an odor given off due to the drying of the protective color. That is normal, because the color stabilizes on temperatures over 350°C. THE ROOM MUST BE PROPERLY VENTILATED. - Page 6 A lower value does not permit proper combustion with the consequent formation of carbon deposits and excessive production of smoke, which, being unable to flow to the exterior will escape through the grills or doors. If the draught value is too high, combustion will be too fast, with the consequent dispersion of the heat through the flue.
-
Page 7: Wood
than the outlet hole of the appliance. Try to avoid too many curves and horizontal sections; if this is impossible, ensure that there is always a slope of at least 2/3 cm per linear metre as compensation. The same flue must never be used for more than one appliance. 4.4 Cleaning the tubes and flue Every time you notice the draught is becoming difficult, you should clean the stove, the tubes, and the flue. -
Page 8: Cleaning Of The Stove
to the rain to eliminate the tannin). You must stack the wood without compressing it to allow the passage of air, which, discharges the humidity and aids drying. 5.2 HOW TO SELECT THE RIGHT WOOD To obtain combustion and optimum efficiency from your stove, you must use firewood on the basis of the following list. -
Page 9: Summer Pause
damages caused by improper installation, incorrect connection not in compliance with the instructions which accompany the product, or by tempering by unqualified or unauthorized personnel. 8. SUMMER PAUSE After you have cleaned the hearth, the chimney and flue, trying to eliminate completely the ash and other residuals, you must close its openings in order to let work other appliances that are connected to the same flue. -
Page 10: Technical Description
gas. Attention: The manufacturer exclusively uses materials which are not health hazards. The manufacturer reserves the right to make modifications to the appearance, to the dimensions or to the models themselves without previous notice. 10. TECHNICAL DESCRIPTION 10.1 Description The stove is suitable to heat living spaces or to support an insufficient centralized heating system. -
Page 11: Installation
11. INSTALLATION The stove must be connected with a junction to the existing flue. The junction must be, if possible, straight, horizontal or positioned a little uphill. The connections must be tight. It is obligatory to respect the National and European rules, local regulations concerning building matter and also fireproof rules. -
Page 12: Air Entrance Into The Installation Place During Combustion
Please avoid the contact of these parts without gloves or the relevant tools. Warn children of the danger and keep them away during the operation of the stove. The use of a wrong or wet fuel causes the formation of creosote deposits in the flue and will fuel a chimney fire. -
Page 13: Lighting
energy to evaporate the existing water. The humid contents has the disadvantage that, with the temperature lowering, the water condensates first in the hearth and then in the chimney. The unseasoned wood contains about 60 % of H20, and then it is not suitable to be burnt. -
Page 14: Normal Operation
with the registers less open than the value indicated in the instructions manual. 3. Repeat this operation for at least 4-5 or more times, according to your possibilities. 4. Then load more and more fuel (following in any case the provisions contained in the installation booklet concerning maximum load) and, if possible, keep the lighting periods long avoiding, at least in this initial phase, short ON/OFF cycles. -
Page 15: Operation In Transition Periods
The warranty does not cover the damages due to overheating of the equipment. You should always use the stove with the door closed in order to avoid damages due to overheating (forge effect). The adjustment of the registers, necessary to obtain a rating calorific performance with a depression on the chimney is the following: Fuel... - Page 16 18.1 CLEANING OF THE FLUE A correct lighting, the burning of a proper fuel, the loading of the suggested quantity of fuel, the right adjustments of the secondary air control, the sufficient draught of the chimney and the presence of air for the combustion, are essential for the good operation of the appliance.
- Page 17 18.4 SUMMER PAUSE After you have cleaned the hearth, the chimney and the flue, trying to eliminate completely the ash and others residuals, you must close the doors of the hearth and its registers; in case you disconnect the appliance from the chimney, close its opening in order to let work other possible appliances connected to the same flue.
- Page 19 P.025 P.037 P.024 DIN 1481, ISO 8752 P.023 DIN 660 P.022 DIN 660 P.021 P.036 P.020 P.035 P.019 P.018 P.017 P.016 P.015 DIN 137 A – M10 P.014 P.013 DIN 923 P.012 P.034 P.011 DIN 965, ISO 7046 P.010 DIN 1481, ISO 8752 P.009 P.033 P.008...
