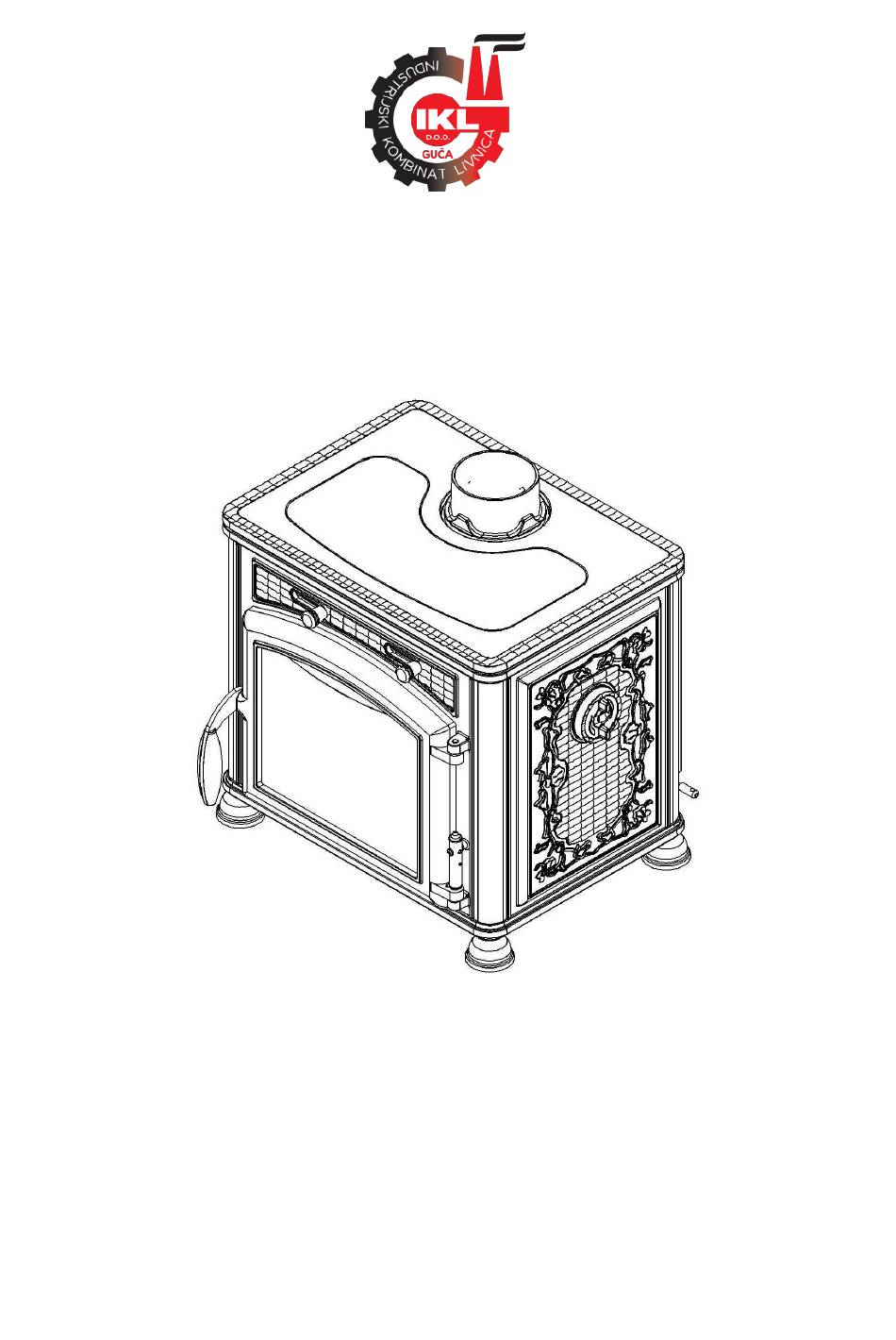

- Page 1 Model: MERCURY USER MANUAL IKL-INDUSTRIJSKI KOMBINAT LIVNICA DOO GUČA Srbija,32230 Guča, Albanske spomenice bb Tel/centrala:+381(0)32 306 000 , prodaja i servis;+381(0)32 854 305...
-
Page 2: Table Of Contents
Dear customer, First of all we would like to thank you for having chosen us. You will be satisfied with your choice, as our stove is in the leading category of the similar products due to its features and design. Yours sincerely, GUČA CONTENTS:... -
Page 3: Introduction
1. INTRODUCTION Please read and observe the instruction carefully. Hereinafter, you shall find the data regarding the stove and recommendations for the installation and maintenance. The efficiency depends on the correct installation, which must be carried out by a professional observing the standards and valid security regulations. -
Page 4: Working Principle Of The Stove
2. TECHNICAL FEATURES Definition: solid fuel stove tested according to: EN 13240 Constructive System Rating power in kW Efficiency in % Pipe diameter in mm 120 / 150 Maximum quantity of fuel-wood in kg Mean content of CO to 13% O in % 0.1061 Emission of exhaust gasses in C°... -
Page 5: The Flue
3.2 Installation The installation of the stove must be carried out by qualified people who are aware of the safety measures. A badly installed stove can cause serious accidents (chimney fires, burning of insulating materials, etc). 3.3 Lighting the stove for the first time The first time the stove is lit, there will be an odor given off due to the drying of the protective paint. - Page 6 4.1 General characteristics To facilitate the draught in the flue, the chimney must be rising at least one metre above the ridge of the roof. The chimney must not be covered by surrounding objects. The dimensions of the chimney may vary on the basis of the model of flue. However, to guarantee good disposal of the fumes, the section of the air passage at its exit must always be twice the size of the section of the smoke pipe, and furthermore the cap of the chimney must never obstruct the draught.
-
Page 7: Wood
4.3 Connection of the stove to the flue The metal tube connecting the stove to the flue must never have a smaller diameter than the outlet hole of the appliance. Try to avoid too many curves and horizontal sections; if this is impossible, ensure that there is always a slope of at least 2/3 cm per linear metre as compensation. -
Page 8: Cleaning Of The Stove
which contribute to the formation of incrustations which are detrimental for the efficiency of your stove. Fresh cut wood is useless as a fuel. Actually a considerable part of the energy produced is only used to evaporate the water, which is up to 75% in young wood without bark. To obtain dry wood (15%-20% humidity) you must cut the wood (in winter) to the desired length and cut it again in pieces with a maximum diameter of 8-15 cm. -
Page 9: Consumables
We recommend removing the ash produced every day. Never allow the ash accumulate to the point where it touches the grate; this would obstruct the circulation of primary air and slowly suffocate the fire. When cleaning the outside surfaces of the stove, avoid abrasive products which would damage the protective paint. -
Page 10: Technical Description
Check if the primary air register is opened. Check if the entrance of the chimney presents leaks. Check if the ash or other residuals have obstructed the draining pipe. Insufficient draught. Check the draught in the flue. Heck the gaskets. 9.4 The glass gets dirty in a short time Damp wood: use dry wood (max.20%... - Page 11 The controller adjusts the passage of air in the direction of fuel. Primary air is necessary for the combustion process. Regulators of primary air are on the sides of the oven. During wood combustion, the regulator of primary air must be opened only when needed (setting fire, increasing the combustion intensity) because otherwise the wood burns fast and the stove may overheat.
-
Page 12: Installation
10.5 TERTIARY control air ( OPTION) Maximum results are achieved by introducing air from the rear side. With the recommended fuel we recommend fully open regulator. In the case when you want to preserve ember in addition to other regulators, this should be closed too. Maximum effect is achieved when the stove is heated and then the flame occurs through openings on the back side of the hearth. -
Page 13: Fire Safety
12. FIRE SAFETY In the installation of the stove the following safety measures are to be followed: a) In order to ensure sufficient thermal insulation, respect the minimum safety distance from objects or furnishing components flammable and sensitive to heat (furniture, wood, sheathing, fabrics etc.) and from materials with flammable structure. -
Page 14: Allowed/Forbidden Fuel
through an external air intake, to be positioned in the nearby of the appliance or through air connection towards outside or a near ventilated room. The air entrance for combustion into the installation place must not be closed during the operation of the stove. -
Page 15: Lighting
damages and spread of unpleasant smell. The wood is not a fuel which allows a continuous operation of the appliance, as consequence the heating all over the night is not possible. ATTENTION: the continuous and protracted use of aromatic wood (eucalyptus, myrtle etc.) quickly damages the cast iron parts of the product. -
Page 16: Operation In Transition Periods
must always remain closed during stove operation. Regulators placed on the front of the appliance regulate the emission of heat. They must be opened according to the calorific need. The best combustion is reached when most of the air for the combustion passes through the regulator of secondary air. The warranty does not cover the damages due to overheating of the equipment. - Page 17 flue (checking of possible deposits). 18.2 CLEANING OF THE GLASS Thanks to a specific entry of the secondary air the building of deposit on the glass of the door is slowed down in a remarkable way. However the building of this deposit cannot be avoided with the use of solid fuels such as wet wood, and this is not to be considered as a defect of the appliance.
- Page 18 19. Recommendations for environmental protection Product The device is made of recycable material. When storing to waste, observe the valid laws on protection of environment. Use only recommended types of fuel. The incineration of organic and inorganic waste is forbidden (plastic, textile, oiled wood, painted wood etc.) because it discharges carcinogenic and other detrimental materia.
- Page 20 P.311 VS-002 P.310 P.319 P.309 P.080 P.307 P.029 P.306 P.027 P.305 P.034 P.014 P.069 P.304 P.028 P.303 P.318 P.063 P.317 P.302 P.032 P.301 P.316 P.059 P.315 P.058 P.314 P.057 P.313 P.053 P.078 P.300 P. 077 P.051 P. 025 P.050 P. 312 Poz.
