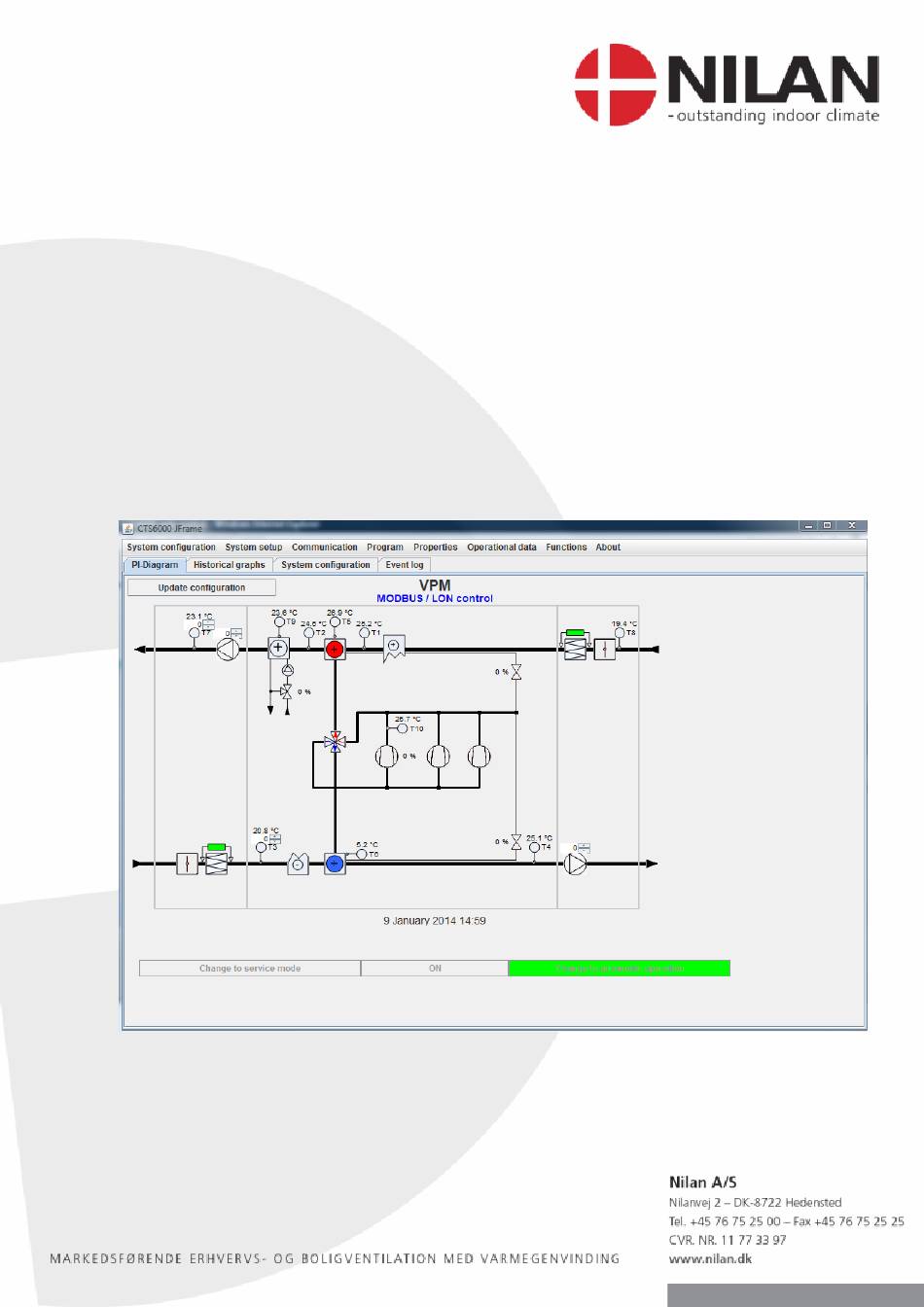

- Page 1 Preparations LON or ModBus communication CTS6000 Version 1.02, 24-04-2014...
-
Page 2: Table Of Contents
Contents Contents ............................2 Installing the LON-/ModBus card ....................3 Connecting to PC ........................4 Logon procedure ........................5 Firmware ............................ 6 LON-card configuration ....................... 7 Restart system .......................... 10... -
Page 3: Installing The Lon-/Modbus Card
Preparations for LON or ModBus communication CTS6000 Version 1.02 Installing the LON-/ModBus card First of all Power off the CTS6000 Controller and mount the NilLON card as shown in the picture. Make sure everything is in place, then Power on the controller. Subject to alterations... -
Page 4: Connecting To Pc
Version 1.02 Connecting to PC Connect a PC to the network interface of the CTS6000 Controller and open the internet browser. In the address line of the internet browser write the IP-address of the unit (default address is 10.1.10.240) and press enter. -
Page 5: Logon Procedure
Preparations for LON or ModBus communication CTS6000 Version 1.02 Logon procedure Then this screen shows up. At the IP field write the IP-address of the unit (default is 10.1.10.240). Username : admin, (case sensitive) Password : nilanadm, (case sensitive) Press the OK button. -
Page 6: Firmware
Preparations for LON or ModBus communication CTS6000 Version 1.02 Firmware Open the About menu and check if the following information’s are correct. Software version must be at least 1.0087 and Java version at least 1.39. Subject to alterations NILAN A/S... -
Page 7: Lon-Card Configuration
Preparations for LON or ModBus communication CTS6000 Version 1.02 LON-card configuration If these conditions are not meet, then you have to make a Firmware update on the unit. When the conditions are meet, open the functions menu / permissions and select LON-card configuration and make it available to user by pressing the arrow ►. - Page 8 Preparations for LON or ModBus communication CTS6000 Version 1.02 Open the menu Communication / LON-card configuration and place a tick in the box beside LON control. Choose LON or MODBUS depending on whichever suits you. If MODBUS is chosen, set the appropriate parameters.
- Page 9 Preparations for LON or ModBus communication CTS6000 Version 1.02 Open System configuration / system configuration. Make the settings and the click OK. Subject to alterations NILAN A/S Page 9 of 11...
-
Page 10: Restart System
Preparations for LON or ModBus communication CTS6000 Version 1.02 Restart system Finally go to the Functions menu and restart the system. Press Yes, and you are now ready to communicate either LON or MODBUS with the CTS6000 controller. Subject to alterations NILAN A/S... - Page 11 Preparations for LON or ModBus communication CTS6000 Version 1.02 The system now only can be operated by LON or MODBUS. LON CONTROL will be shown in the user panel. Subject to alterations NILAN A/S Page 11 of 11...
