Husqvarna 330i Operator's Manual

Husqvarna 330i Operator's Manual

Bldc (brushless) 36v motor
Hide thumbs Also See for 330i:
Table of Contents

Advertisement

Quick Links

See also: Workshop Manual
330i, 535i XP
EN
Operator's manual
2-36

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna 330i

Summary of Contents for Husqvarna 330i

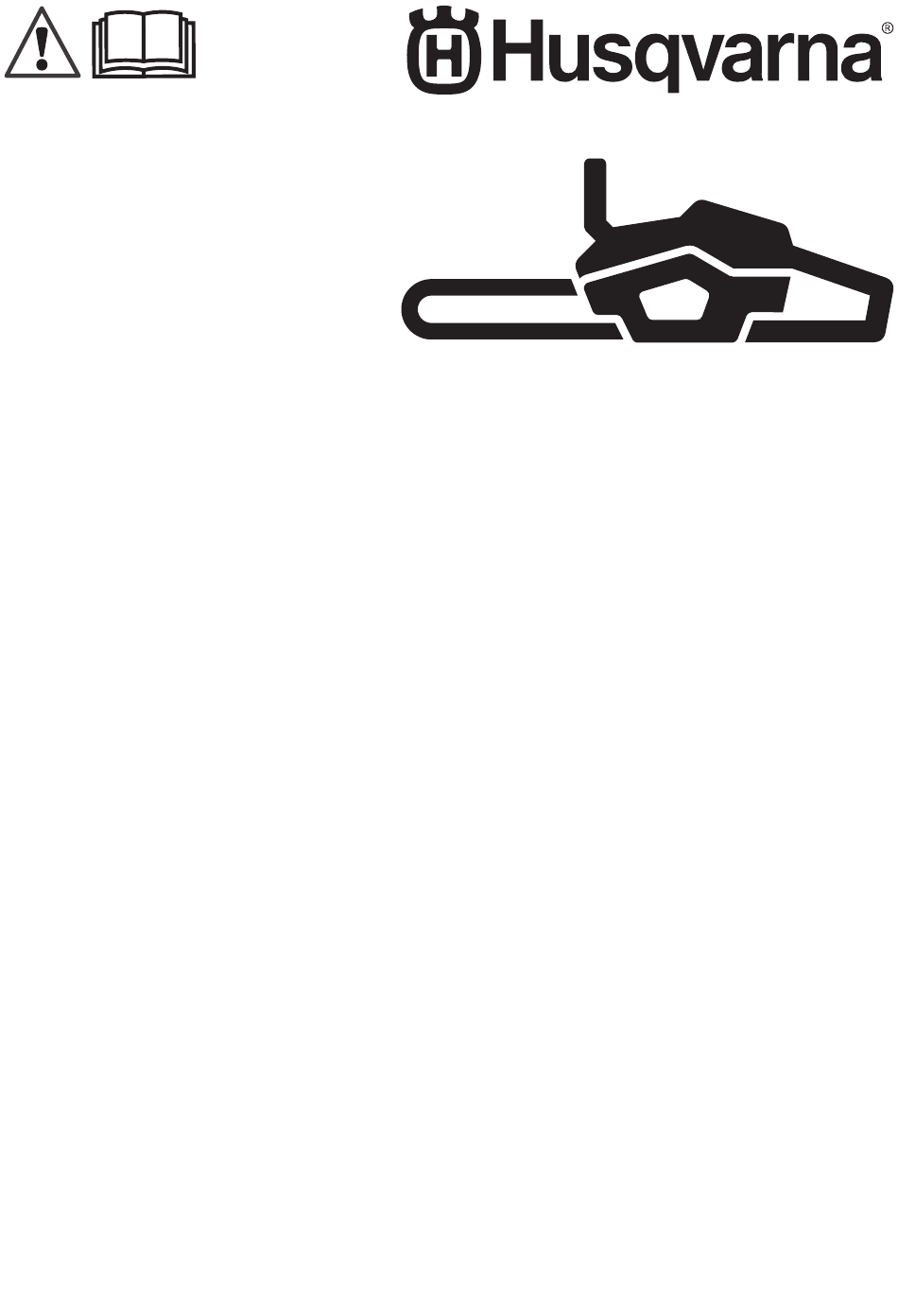

  • Page 1 330i, 535i XP Operator's manual 2-36...

  • Page 2: Table Of Contents

    Introduction Intended use Product description This product is for forest service such as felling, limbing Husqvarna 330i, 535i XP are chainsaw models with an and cutting. electrical motor. Work is constantly in progress to increase your safety Note: National regulations can restrict the use of the and efficiency during operation.
  • Page 3 17. Spiked bumper 18. Bar tip sprocket The direction in which the saw chain rotates 19. Saw chain and maximum length of the guide bar. 20. Guide bar 21. Chain catcher 22. Chain tensioning screw 23. Drive sprocket cover (535i XP) Direct current.

  • Page 4: Safety

    Safety Safety definitions parts. Damaged or entangled cords increase the risk of electric shock. The definitions below give the level of severity for each • When operating a power tool outdoors, use an signal word. extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  • Page 5 Power tool use and care will ensure that the safety of the power tool is maintained. • Do not force the power tool. Use the correct power Chain saw safety warnings tool for your application. The correct power tool will do the job better and safer at the rate for which it •...
  • Page 6 • Maintain a firm grip, with thumbs and fingers • Turn to your servicing dealer or Husqvarna if you encircling the chain saw handles, with both hands on have questions about the operation of the product. the saw and position your body and arm to allow you We can give you information about how to operate to resist kickback forces.
  • Page 7 Assembly on page 12 for serious injuries. See guide bar accidentally touches a branch, tree or instructions. other objects. • Look around you. Make sure that there is no risk that persons or animals touch or influence on your • Do not hold the product with one hand.
  • Page 8 23 . • If the safety devices are defective, speak to your Husqvarna servicing dealer. Keypad The warning indicator flashes if the chain brake is engaged or if there is a risk of overload. The overload protection temporarily stops the product and you can not use the product until the temperature restores.
  • Page 9 indicator shows a solid light, turn to your servicing brake manually. This movement starts a spring-loaded dealer. mechanism that stops the drive sprocket. The automatic stop function How the chain brake is engaged depends on the force of the kickback. It also depends on the position of the The product has an automatic stop function that stops product when the kickback zone hits an object.
  • Page 10 Use the BLi batteries that are rechargable as a The power trigger lockout prevents accidental operation power supply for the related Husqvarna products of the power trigger. If you put your hand around the handle and press the power trigger lockout (A), it...
  • Page 11 Safety instructions for the cutting equipment • Do not use other battery chargers than the one supplied for your product. Only use Husqvarna QC chargers when you charge Husqvarna replacement WARNING: Read the warning instructions batteries BLi. that follow before you use the product.

  • Page 12: Assembly

    To assemble the guide bar and saw 2. Loosen the knob and remove the drive sprocket cover (chain brake) and the transportation ring (A). chain (330i) WARNING: Always remove the battery before you assemble or do maintenance on the product.
  • Page 13 4. Make sure that the edges of the cutting links are 3. Put the guide bar on top of the bar bolt. Steer the turned forward on the top edge of the guide bar. guide bar to its most rear position. Lift the saw chain above the drive sprocket and engage it in the groove on the guide bar.

  • Page 14: Operation

    To connect the battery charger Chain oil 1. Connect the battery charger to the voltage and All Husqvarna chainsaws have an automatic chain frequency that is specified on the rating plate. lubrication system. On some models the oil flow is also 2.
  • Page 15 2. Put the battery in the battery charger. 2. Push the front hand guard forward to engage the chain brake. 3. Put the battery in the battery holder. 3. Make sure that the green charging light on the battery charger comes on. That means that the battery is connected correctly to the battery charger.
  • Page 16 To use the SavE function What is kickback? This product has a power saving function, SavE. The WARNING: If a kickback occurs when the SavE function decreases the chain speed and gives the saw chain rotates, it can cause serious longest operation time from the battery.
  • Page 17 A saw chain is made up of a number of links, which are CAUTION: Motor damage can occur if the available as standard and low kickback. You can motor runs for too long at full power without decrease the effects of kickback by using the correct load.
  • Page 18 1. Put the trunk on a saw horse or runners. 1. Cut through the trunk on the pull stroke. Do not let the saw chain touch the ground when you complete the kerf. Keep full power but be prepared for sudden accidents.
  • Page 19 4. Cut branches piece by piece if necessary. 1. Cut on the pull stroke approximately 1/3 through the trunk. 2. Cut through the remaining part of the trunk on the push stroke until the two kerfs touch. WARNING: Be careful when you remove small branches and do not cut bushes or many small branches at the same time.
  • Page 20 To keep a safe distance 6. Do not let the tree fall onto a different tree. It is dangerous to remove a trapped tree and there is a 1. Make sure that persons around you keep a safe To free a trapped tree on high accident risk.
  • Page 21 2. Make sure that the directional cut line is perfectly horizontal and at right angles (90°) to the felling direction. The directional cut line goes through the point where the two directional cuts touch. To fell a tree To make the felling cut You use three cuts to fell a tree.
  • Page 22 To free a trapped tree 5. Complete the felling cut parallel with the directional cut line. Make sure that the distance between them is at a minimum of 1/10 of the trunk diameter. The WARNING: It is very dangerous to remove a section of the trunk that is not cut is the felling hinge.

  • Page 23: Maintenance

    risk that the tree moves quickly before or 4. Keep a position where the tree or branch can not hit you when the tension is released. after you cut it. Serious injury can occur if you are in an incorrect position or if you cut incorrectly.

  • Page 24: Product

    To do a check of the power trigger lockout 4. Hold the rear handle and let go of the front handle. Let the product fall against the stump. 1. Make sure that the power trigger and power trigger lockout move freely and that the return spring works correctly.

  • Page 25: Product

    Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combinations recommended by Husqvarna. This is important in order to keep the safety functions of the cutting equipment. Accessories on page 34 , for a list of replacement bar and chain combinations that we recommend.
  • Page 26 • Number of teeth on bar tip sprocket (T). • Drive link width, mm/in. • Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket. General information about how to sharpen the cutting teeth Do not use a blunt saw chain.

  • Page 27: Product

    4 mm (0.16"). Replace the saw chain. It is not easy to sharpen a saw chain correctly without the correct equipment. Use Husqvarna file gauge. This will help you to keep maximum cutting performance and the kickback risk at a minimum.
  • Page 28 To tighten the saw chain (330i) We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the 1. Fold the knob out until it opens. depth gauge. 1. Use a flat file and a depth gauge tool to adjust the depth gauge setting.

  • Page 29: Product

    5. Fold down the knob to lock the tension. 5. Make sure you can pull the saw chain around freely by hand and that it does not hang from the bottom of the guide bar. 6. Do a check of the chain tension frequently, until the 6.
  • Page 30 b) Do a check of the groove in the edge of the guide 1. Make sure that there are no cracks in rivets and bar to make sure that it is clean. Clean if links. Replace if necessary. necessary. c) Make sure that the bar tip sprocket turns freely 2.

  • Page 31: Troubleshooting

    Maintenance schedule The following is a list of the maintenance steps that you Maintenance on page 23 must do on the product. See for more information. WARNING: Remove the battery before you do maintenance. Maintenance Before Weekly Monthly Clean the external parts of the product. Make sure that the power trigger and the power trigger lockout function correctly from a safety point of view.

  • Page 32: Transportation, Storage And Disposal

    LED display Possible faults Possible action Warning indicator flashing. Chain brake engaged. Pull back the front hand guard to re- lease the chain brake. Temperature deviation. Allow the product to cool down. Overload. Cutting attachment jam- The cutting attachment is jammed. med.

  • Page 33: Technical Data

    Use the transportation guard on the product to Note: The symbol shows on the product or package of prevent injuries or damage on the product during the product. transportation and storage. Technical data Technical data 330i 535i XP Motor Type BLDC (brushless) 36V BLDC (brushless) 36V Features...

  • Page 34: Accessories

    The part numbers are given in the table below. Using Husqvarna file gauge will give you the correct If you do not know which saw chain you have on your filing angles. We recommend you to always use a product, turn to your servicing dealer.
  • Page 35 11/64 in/4,5 0.025 in/ 90° 30° 0° 5056981-03 5795588-01 0,65 mm Approved batteries Only use original BLi batteries for this product. Approved battery chargers Battery charger QC330 QC500 Input voltage, V 100-240 100-240 Frequency, Hz 50-60 50-60 Power, W 958 - 004 - 22.01.2019...

  • Page 36: Ec Declaration Of Conformity

    Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares under sole responsibility that the cordless battery chainsaws Husqvarna 330i and 535i XP from 2019’s serial numbers and onwards (the year is clearly stated in plain text on the type plate with subsequent serial number), are in conformity with the requirements of the COUNCIL’S DIRECTIVES:...
  • Page 37 958 - 004 - 22.01.2019...
  • Page 38 958 - 004 - 22.01.2019...
  • Page 39 958 - 004 - 22.01.2019...
  • Page 40 Original instructions 1140988-26 2019-01-25...
