Belkin RK4000 Instructions

RK4000 INSTRUCTIONS

RK4000 Product Inventory

Corner Post (4)
3/8"-16 x 1 Hex Head Bolt (16)
3/8" Split Lock Washer (16)
Nut Plate (8)
Top/Bottom Panel (2)
1/4"-20 Hex Nut (8)
M6 Screws (50)
M6 Cage Nuts (50)
Instructions
1. Take two of the U-Shaped mounting rails and place them on the floor, such that the RMU markings are facing
in opposite directions.
2. Make sure that the RMU markings start with "1" at the same end.
3. Take the bottom panel (the one without the Belkin logo) and then insert the side of the two mounting rails onto
the bottom panel. Repeat with top panel.
4. Align the bolt holes and place nut plate on inside of mounting rail, start 3/8" bolt with lock washer (2 times).

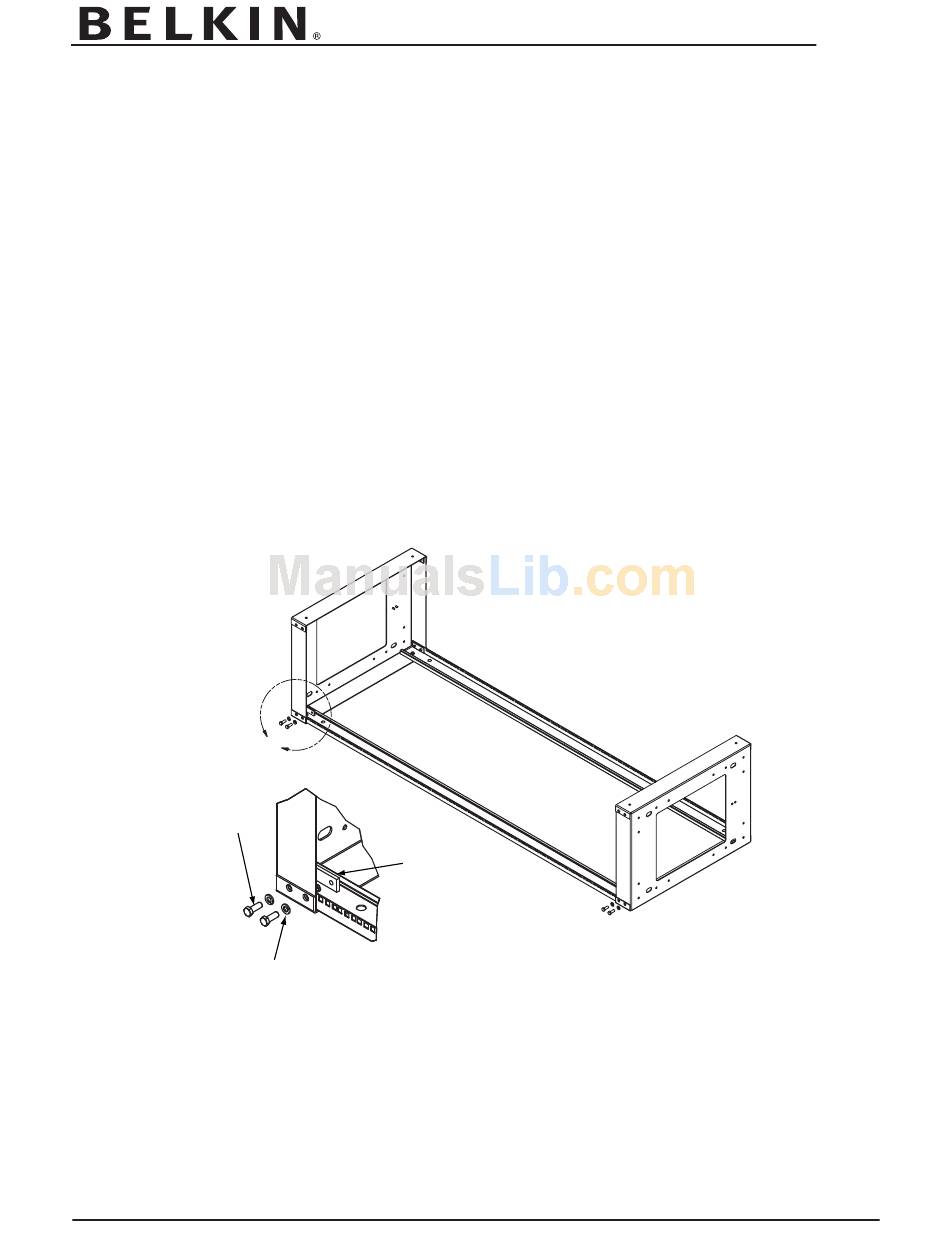

Repeat with top panel. (Hand tighten). See Detail A.
5. Turn the rack over and repeat step 4. Make sure your U markings match on all uprights.
3/8"-16 x1
Hex Head Bolt
3/8" Split
Lock Washer
