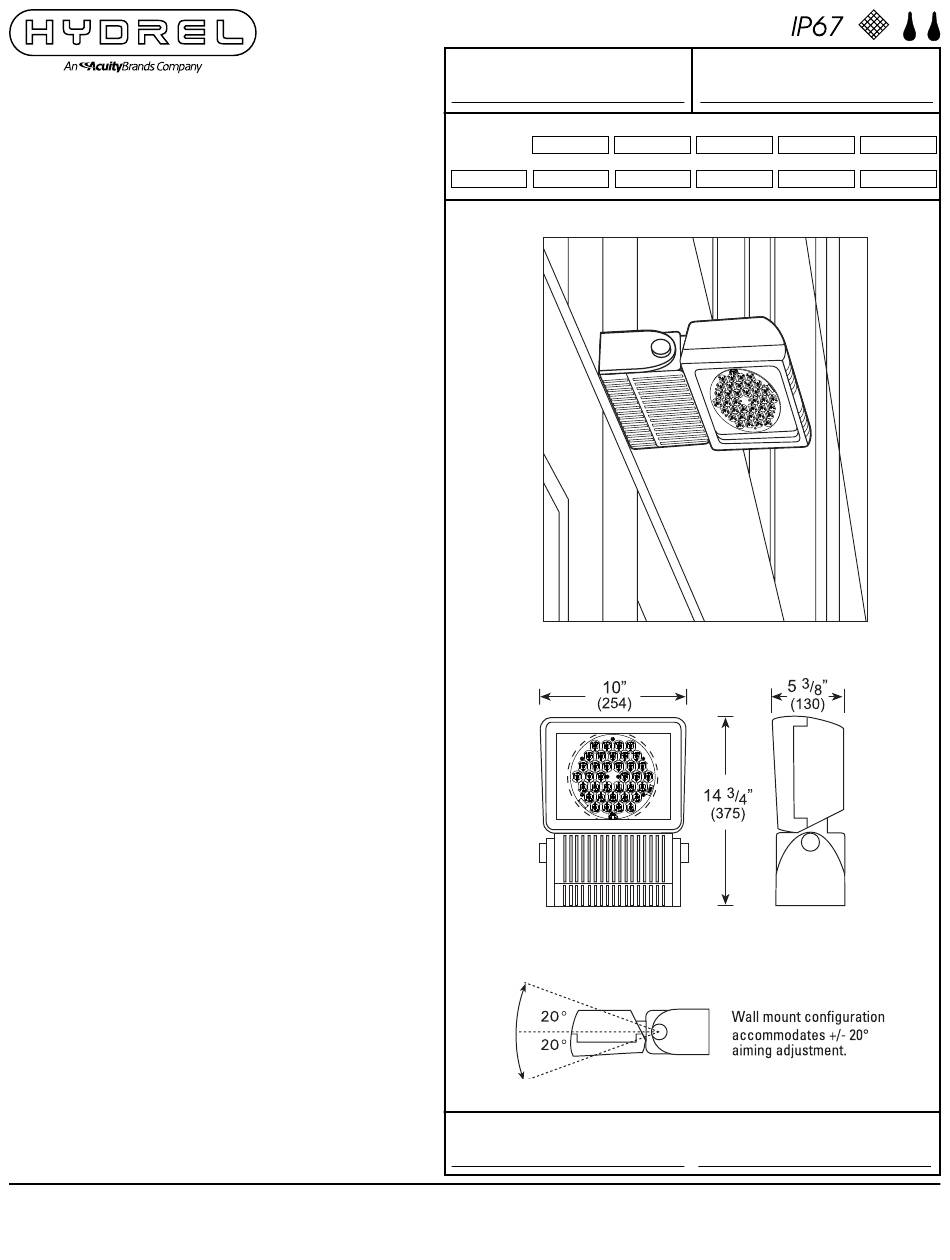

Hydrel 8100 Series Installation Instruction

8100 SERIES
36 LED MONOCHROMATIC
ADJUSTABLE WALL MOUNT
DESCRIPTION
The 8100 Series is a high performance compact precision lighting
system that provides consistent styling with a variety of light
distributions. Multiple optical systems provide a wide range of
precise light control.
FEATURES & SPECIFICATIONS
MATERIAL: Die cast copper free aluminum (A360) housing &
doors.
LED: Monochromatic LEDs, 87W Max.
LIGHT DISTRIBUTIONS:
NEMA Flood (2x2 through 7x7), Horizontal Spot (4x2)
LENS: Flat tempered glass for maximum resistance to impact and
thermal shock.
MOUNTING:
AWM: Cast aluminum wall mount plate for mounting over 4-0/4-S
recessed J-Box. Refer to Installation Instruction for mounting foot print.
AWMDE: Surface conduit direct entry available for thru branch wir-
ing, 3/4" NPT drilling standard.
Receivers in wall mount plate allow fixture to be hung, freeing hands
for electrical splices. Fixture head may be oriented up or down sim-
ply by loosening yoke screws and rotating fixture head 180°. Yoke
housing allows fixture head to be aimed 20° up or down.
GLARE CONTROL: Internal elements provide unlimited versatility
in beam control. House Side Shield available for External Glare
Control.
POWER SUPPLY: 120-277 LED Power Supply. 350 and 700
miliamps.
FINISH: Textured TGIC powder coat polyester finish (see ordering
guide for available colors)
LISTING: CSA, CSA
US
WEIGHT: 27.6 lbs.
EPA: 0.56 ft
2
©2012 Acuity Brands Lighting, Inc.
3/1/12
8100 AWM LED
NOTE: Hydrel Reserves The Right To Modify Specification Without Notice.
Any dimension on this sheet is to be assumed as a reference dimension:
"Used for information purposes only. It does not govern manufacturing or
inspection requirements." (ANSI Y14.5-1973)
TYPE
PART NUMBER
MODEL
MOUNTING ACCESSORIES
APPROVALS
JOB NAME
LAMP TYPE LED COLOR VOLTAGE
OPTIONS DRIVE CURRENT LAMP
20660 Nordhoff St., Suite B | Chatsworth, CA 91311
Phone: 866.533.9901 | Fax: 866.533.5291
DISTRIBUTION
FINISH
www.hydrel.com
