ANT+ XPEDO THRUST E XRF12 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

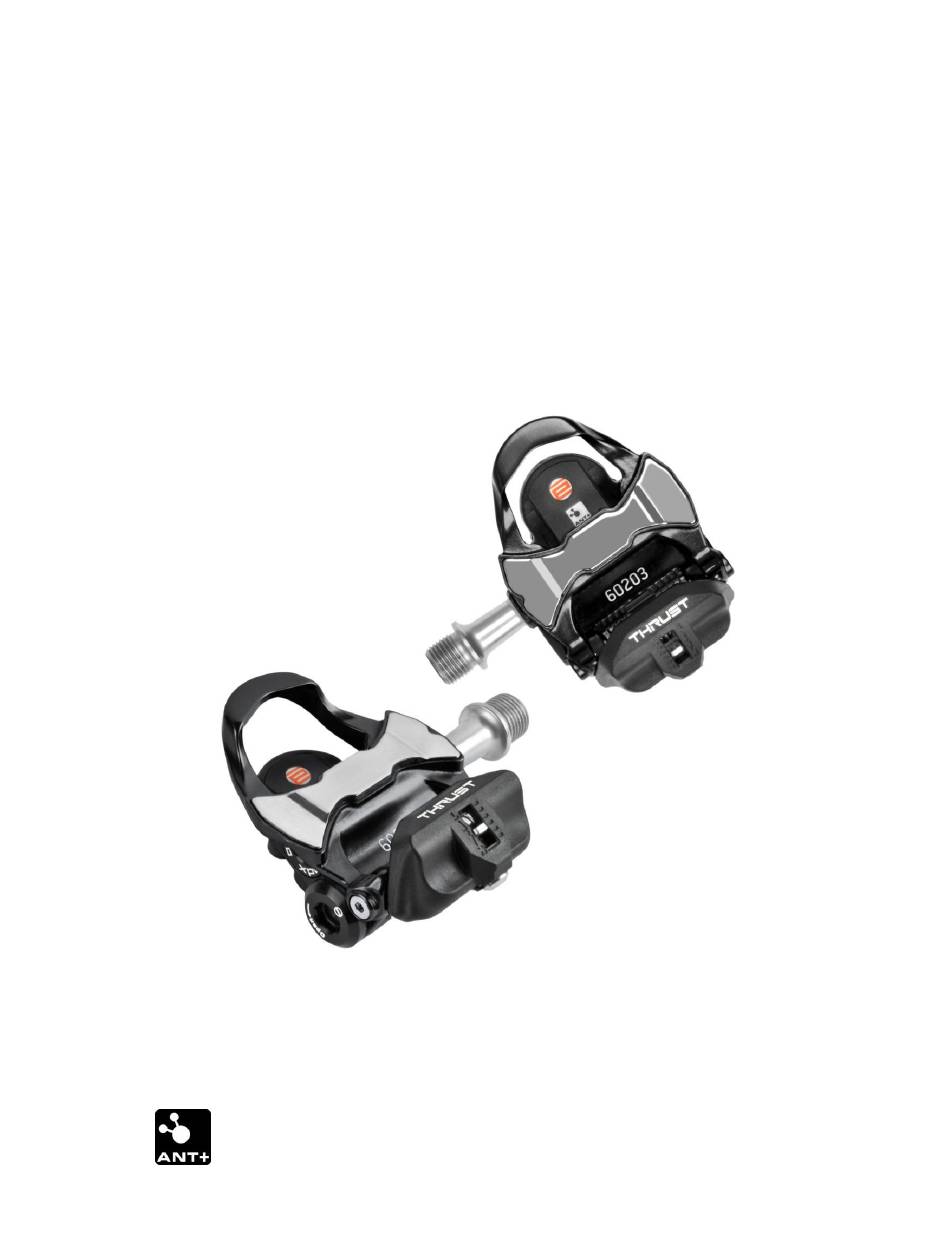

XPEDO
THRUST E
XRF12
User's Manual
This product is ANT+ certified and complies with the bicycle power ANT+
Device Profile. For a complete listing ofANT+ Certified Products and their
specific interoperability, please visit www.thisisant.com
XPEDO THRUST E USER MANUAL V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPEDO THRUST E XRF12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANT+ XPEDO THRUST E XRF12

Summary of Contents for ANT+ XPEDO THRUST E XRF12

  • Page 1 XPEDO THRUST E XRF12 User’s Manual This product is ANT+ certified and complies with the bicycle power ANT+ Device Profile. For a complete listing ofANT+ Certified Products and their specific interoperability, please visit www.thisisant.com XPEDO THRUST E USER MANUAL V1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PACKAGE CONTENTS..........................4 THRUST E ANATOMY ..........................5 INSTALLATION OVERVIEW ........................6 PAIRING (ANT+)............................7 PAIRING (BLE) ............................8 LED LIGHTS ..............................9 INSTALLING THE PEDALS ........................9 INSTALLING THE CLEATS ........................9 CALIBRATION ............................10 RIDE ................................10 MAINTENANCE AND CARE ........................
  • Page 3 ATTENTION!  Before beginning a power-based training program, be sure to consult your physician.  If you use a pacemaker or implanted electronic device, please consult your physician before using.  When using the THRUST E pedals for the first time, please be sureto practice engaging and disengaging in a safe and secure environment.

  • Page 4: Package Contents

    PACKAGE CONTENTS THRUST E Pedals  Right pedal (1)  Left pedal (1) Cleats  THRUST 7 6° (red)(2)  THRUST 7 Fixed (black)(2) Cleat Hardware  11mm cleat bolts (6)  13mm cleat bolts (6)  Cleat washer (12)

  • Page 5: Thrust E Anatomy

    THRUST E ANATOMY ANT+ LED Calibration Button Identification Light Stress Gauge Tension Indicator Device ID number Transmitter Battery – Positive Battery -Negative Tension Screw...

  • Page 6: Installation Overview

    INSTALLATION OVERVIEW 1. Pre Installation ( make sure the battery power is higher than 1.2V ) 2. Pair THRUST E with a ANT or BLE4.0 compatible console. 3. Install THRUST E pedals on your bike 4. Install cleats to the shoes 5.

  • Page 7: Pairing (Ant+)

    PAIRING Ant+ pairing steps: We recommend pairing the THRUST E prior to mounting them on the bicycle. Before pairing the THRUST E to a console, make sure you are at least 10 meters ™ device. This will avoid any accidental pairing to (30 feet) from any other ANT another ANT device.

  • Page 8: Pairing (Ble)

    PAIRING BLE pairing steps: We recommend pairing the THRUST E prior to mounting them on the bicycle, before connecting the THRUST E and your compatible console, make sure your console has BLE 4.0 functionality and your compatible console could receive power information; THRUST E only could pairing single console at the same time.

  • Page 9: Led Lights

    LED LIGHTS If have no riding within 3 seconds, the LED lights will turn off and THRUST E will into sleep mode. Pedal few circles to wake the THRUST E up. Disconnected (ANT and BLE) Flashes per 5 seconds Connected (ANT or BLE) Flashes per 10 seconds Above flashes will turn off if THRUST E has been stationary for 4 minutes or after riding 1 minute.

  • Page 10: Calibration

    CALIBRATION The timing for performing the calibration First time use THRUST E Shoes, cleat, battery has been changed. Adjust tension screw. Assemble THRUST E to another bike. Pedal damaged by impact Make sure your bike is stable on the ground if with kickstand. Assemble pedal to the correct crank thread.

  • Page 11: Maintenance And Care

    MAINTENANCE AND CARE  Wipe down the contact plate on the pedal. Do no use harsh chemicals or pressure washer to clean pedals  Periodically check the battery compartment for any moisture or corrosion  Power pedals will turn off after 4 minutes of no activity TROUBLESHOOTING THRUST E does not pair with the console ...

  • Page 12: Firmware Update

    FIRMWARE UPDATE Pedal THRUST E can be updated with BLE on a smart mobile device. Make sure your smart mobile device is connected to the network and make sure that THRUST E is fully charged. Details and content of the update please go to XPEDO official website to understand more.
  • Page 13 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
