RF Innovations RFI-9256 Operation Manual

Hide thumbs Also See for RFI-9256:
Table of Contents

Advertisement

Quick Links

Download this manual
RF INNOVATIONS PTY LTD
RFI-9256
O
PERATION
M
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFI-9256 and is the answer not in the manual?

Questions and answers

Related Manuals for RF Innovations RFI-9256

Summary of Contents for RF Innovations RFI-9256

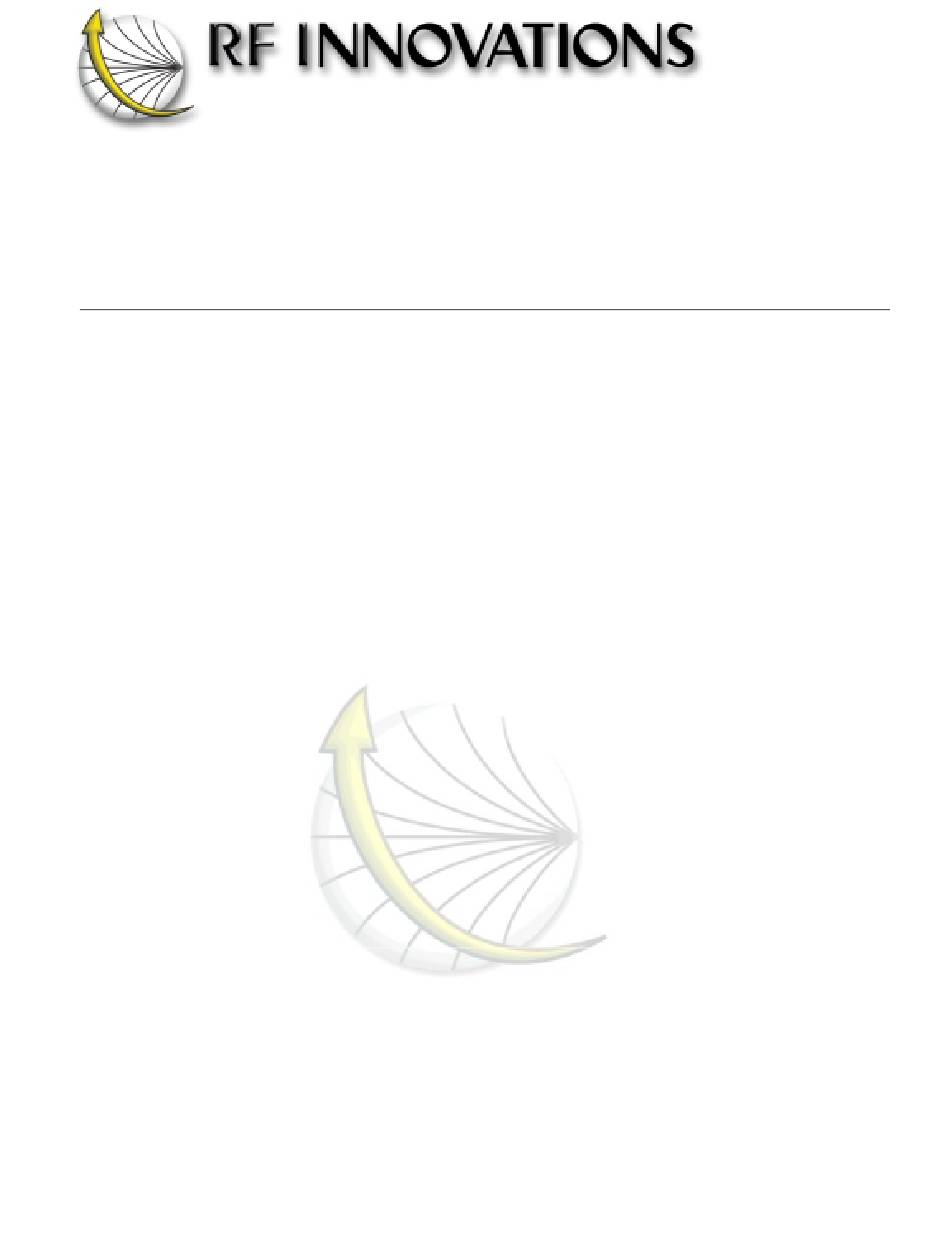

  • Page 1 RF INNOVATIONS PTY LTD RFI-9256 PERATION ANUAL...
  • Page 3 RF Innovations Pty Ltd reserves the right to change manual content, product specifications without prior notice to the product owner, although all efforts will made to do so. RF Innovations Pty Ltd will not be held liable for any damages that may be caused by incorrect information...

  • Page 4: Table Of Contents

    (A) Auxiliary I/O Port..............42 Point to Multipoint Connection ...........9 (D) Aux I/O Direction Menu ..........43 Point to Point Communication.............9 (P) Powerup defaults Menu............43 RFI-9256 Location...............10 (P) Radio Personality Menu............44 Using an External Antenna............10 (D) Diagnostics Menu ..............45 (F) Fault log menu..............49 CONFIGURATION ............
  • Page 5 ATV Verbal Response Codes............58 FIRMWARE COMPATIBILITY ........80 ATW Delayed Response............58 AT&C Controlling Data Carrier Detect........58 The version numbe ring sche me ..........80 AT&D Controlling Data Terminal Ready.........59 AT&F Restore Factory Defaults..........59 Compatibility Types ..............80 AT&G Exclusive Port Control..........59 Hardware compatibility..............80 AT&K Flow Control..............60 Air interface compatibility (AI)

  • Page 7: Introduction

    Figure 1-1 shows a possible configuration for a pair of RFI-9256 units. The local modem is generally configured as the Master and the remote/distant modem(s) as the Slave(s). It is the Master modems...

  • Page 8: The Rs-232 Standard

    Full Duplex Communication data flows in both directions simultaneously. This is illustrated in Figure 2-2. Figure 2-2 Simplex/Duplex Modes is a standard that defines the characteristics of point-to-point communication. It is suitable for transferring © © © © RF Innovations Pty Ltd, 1998 Page: 6 223889, Revision 2.2...

  • Page 9: Dte Versus Dce Conventions

    DTE, but an output from DCE. Refer to Figure 2-3 for a visual understanding. Radio modems can perform the function of both DTE and DCE Figure 2-3 DTE and DCE Conventions for RFI-9256 © © © © RF Innovations Pty Ltd, 1998 Page: 7 223889, Revision 2.2...

  • Page 10: Installation

    If you don’t have a terminal program that can be set to 19200 baud, you can download our shareware terminal program (RFI’s InTerm) from the RF Innovations Web site (http://www.rfinnovations.com.au/). © © © © RF Innovations Pty Ltd, 1998 Page: 8...

  • Page 11: Point To Multipoint Connection

    This will bring up the Configuration Menu on the terminal. Press ‘R’ to select “ ”. Radio Configuration Menu Press ‘P’ to select Mode Point to Point (Direct). Enter receiving modem’s address (20 by default). © © © © RF Innovations Pty Ltd, 1998 Page: 9 223889, Revision 2.2...

  • Page 12: Rfi-9256 Location

    Placement of your RFI-9256 unit is likely to have a significant impact on its performance. In general, the rule of thumb with RFI-9256’s is that the higher the placement of the antenna the better the communication link. In practice you should also place the transceiver away from computers, telephones, answering machines, and other similar equipment.

  • Page 13: Configuration

    Protocol Port Selection Serial Port Configuration Menu Modem and I/O Configuration Menu Radio Personality Menu Diagnostics Menu (Esc) To Exit Menu Enter Choice: Figure 4-1 Main Menu © © © © RF Innovations Pty Ltd, 1998 Page: 11 223889, Revision 2.2...

  • Page 14: Using Front Panel Modes

    Using Front Panel Modes he RFI-9256 has a unique front panel user interface that can be used to assess the Radio performance without any additional test equipment. A picture of the front panel is shown in Figure 5-1 below. The interface is controlled by means of a small push button switch located on the front panel.

  • Page 15: Mode 1

    Table 5-1 LED Indicators Mode 1 Mode 2 When the RFI-9256 is in Mode 2 the display changes to a LED bar graph that indicates the RSSI (Received Signal Strength Indicator) value, the display has a resolution of 5dB. Intermediate steps are indicated by a RED display and whole numbers by a GREEN display i.e., the bottom two LEDs on green...

  • Page 16: Mode 3

    M O D E S Mode 3 When the RFI-9256 is in Mode 3 the display changes to an LED bar graph display that indicates the Transmitted RF power. The display has a resolution of 3dBm steps from a maximum output power of +30dBm or 1Watt using the RED LEDs.

  • Page 17: Mode 5

    Mode 5 When the RFI-9256 is in Mode 5 the display indicates the RS232 Port status. The user can then tell the logic states of the RS232 control lines, a red LED indicates +12volts(logic on) and a green -12volts or no connection (logic off).

  • Page 18: Using Internal Menu Commands

    METHOD 1: Front Panel Mode 6 (config) The setup menu is invoked by: Connecting the Auxiliary Port of the RFI-9256 to any terminal program. Set the baud rate for that terminal to 19200, 8, N, 1. On the modem press and hold the front panel switch until Mode 6 - config is activated then release the switch.

  • Page 19: (R) Radio Configuration Menu

    Set ports as Dialup Repeater Special Controls Menu Link Control Menu Radio Characteristics Menu Restore Factory defaults (Esc) Previous Menu Enter Choice: Figure 6-2 Radio Configuration Menu © © © © RF Innovations Pty Ltd, 1998 Page: 17 223889, Revision 2.2...
  • Page 20 Rx address of either a Base unit or a destination unit be a 4 digit number and repeaters are 2 digit numbers without zero prefixes. © © © © RF Innovations Pty Ltd, 1998 Page: 18...
  • Page 21 Hayes echo off and sync mode. To change the radio configuration to Dialup Repeater, press (R). (F) Factory Defaults Sets the radio modem back with factory defaults. © © © © RF Innovations Pty Ltd, 1998 Page: 19 223889, Revision 2.2...

  • Page 22: Link Control Menu

    – To disable synchronisation mode. (4) No Sync Mode (2) Link Control Menu To change the Link Control parameters, press (2). © © © © RF Innovations Pty Ltd, 1998 Page: 20 223889, Revision 2.2...
  • Page 23 RF airtime is not wasted on the Slave to Master link, and the Master is not always tied up checking for Slave integrity. This setting is also used to keep the system alive when no data is being passed. © © © © RF Innovations Pty Ltd, 1998 Page: 21 223889, Revision 2.2...

  • Page 24: Set Radio Characteristics

    To change the Hopping Pattern, press (H). The following will be displayed: Enter Hopping Pattern Number (0-31): 0 © © © © RF Innovations Pty Ltd, 1998 Page: 22 223889, Revision 2.2...

  • Page 25: ( P ) T X P O W E R M E N U

    To change the RSSI trigger level, press (R). The following will be displayed: Enter RSSI trigger value as dBm (-120 to -60): -110 The value can be between –120 to –60 dBm. It is -110dbm by default © © © © RF Innovations Pty Ltd, 1998 Page: 23 223889, Revision 2.2...

  • Page 26: (F) Frame Time Menu

    Figure 6-8 shows the menu that is displayed. Directional Bias Menu Directional Bias is Disabled Outgoing/Upload Incoming/Download Disabled (Esc) Previous Menu Enter Choice: Figure 6-8 Directional Bias Menu © © © © RF Innovations Pty Ltd, 1998 Page: 24 223889, Revision 2.2...

  • Page 27: Menu)

    Link/Port Protocol Menu Main Port: Protocol Type: Point to Point Protocol Selection Menu Configure Protocol Menu (Esc) Previous Menu Enter Choice: Figure 6-11 Link/Port Protocol Menu © © © © RF Innovations Pty Ltd, 1998 Page: 25 223889, Revision 2.2...

  • Page 28: (P) Protocol Selection

    Modbus protocol only supports a single byte destination address that only allows 255 radios to be addressed. Because of the structure of the ModBus protocol, it does not support Peer-to-Peer networking © © © © RF Innovations Pty Ltd, 1998 Page: 26 223889, Revision 2.2...

  • Page 29: Protocol Configuration Menu

    Hayes Command Control Menu Tx (Out) Packetiser Timer Link Control Menu (Esc) Previous Menu Enter Choice: Figure 6-13 Hayes Dialup Example of the “Configure Protocol Menu” © © © © RF Innovations Pty Ltd, 1998 Page: 27 223889, Revision 2.2...

  • Page 30: ( L ) L I N K C O N T R O L M E N U

    The following sections also contain background information to help the users understand the functionality of some protocols. R O U T E M A N A G I N G © © © © RF Innovations Pty Ltd, 1998 Page: 28 223889, Revision 2.2...

  • Page 31: Protocol Decoding/Routing

    PC attached. The telephone has its own number, which must be dialed, yet the PC also has an IP address. The RTU address is part of the protocol header sent from the Master Control to the RFI-9256 along the RS-232 link. It is up to the Routing Table to determine to which radios Rx Address the data must be sent to in order for the correct RTU to receive the information.
  • Page 32 Radio Rx address. It requests a start address for the range of RTU address, an end address and an Rx address of the destination radio. Figure 6-15 Relationship between Rx and RTU © © © © RF Innovations Pty Ltd, 1998 Page: 30 223889, Revision 2.2...

  • Page 33: Menu

    Route Source is the address that is found in the protocol packet and therefore the intended destination of the packet. Destination Radio is the radio that the packet is sent to. © © © © RF Innovations Pty Ltd, 1998 Page: 31 223889, Revision 2.2...

  • Page 34: Menu

    The Hayes Command Control Menu allows the user to change Hayes compatible responses and response codes. For example, it is here in this menu the user can toggle the echo on/off and set the escape sequence character, etc. © © © © RF Innovations Pty Ltd, 1998 Page: 32 223889, Revision 2.2...

  • Page 35: (M) Hayes Command Control

    To set the Escape Guard Time, press (G). The following will be displayed: Escape guard time value in milliseconds (50-10000): 1000 The range of values allowed is between 50 and 10000ms. The default is 1000ms. © © © © RF Innovations Pty Ltd, 1998 Page: 33 223889, Revision 2.2...

  • Page 36: Menu

    Point to Point requires a Tx Address Enter Remote Tx Address (0-9999): 20 The Tx address is 20 by default. The menu that appears is shown in Figure 6-20. © © © © RF Innovations Pty Ltd, 1998 Page: 34 223889, Revision 2.2...

  • Page 37: (A) Advanced Functions

    To change the Rx Buffer Limit value, press (R). The following will be displayed: Enter Rx Buffer Limit (16-1024): 1024 The value can range from 16 to 1024 bytes. It is 1024 bytes by default. © © © © RF Innovations Pty Ltd, 1998 Page: 35 223889, Revision 2.2...

  • Page 38: Serial Port Configuration Menu

    Two Stop Bits Seven Bit Data Eight Bit Data Advanced Functions Menu Set to Defaults (Esc) Previous Menu Enter Choice: Figure 6-22 Serial Port Configuration Menu © © © © RF Innovations Pty Ltd, 1998 Page: 36 223889, Revision 2.2...

  • Page 39: (B) Baud Rate Menu

    Enter Choice: Figure 6-23 Baud Rate Menu To select a baud rate select the corresponding number (or character) beside the speed. The default baud rate is 19200. © © © © RF Innovations Pty Ltd, 1998 Page: 37 223889, Revision 2.2...

  • Page 40: (F) Flow Control Menu

    Modem And I/O Configuration Menu Hayes Command Control Menu DCD Control Menu RTS Control Menu Auxiliary I/O Port (Esc) Previous Menu Enter Choice: Figure 6-25 Modem Configuration Menu © © © © RF Innovations Pty Ltd, 1998 Page: 38 223889, Revision 2.2...

  • Page 41: (D) Dcd Control Menu

    (H) Hayes Command Control Menu (Port Selection Menu) The Hayes Commands are a lower level of communication (then the menu system) between a modem and device. These commands allow the RFI-9256 to emulate a landline telephone modem. Details of the Hayes commands are in section 7.
  • Page 42 (7) DCD Always ON DCD is always set to ON. (8) DCD Always OFF DCD is always set to OFF. (9) DCD disabled DCD control has been disabled. © © © © RF Innovations Pty Ltd, 1998 Page: 40 223889, Revision 2.2...

  • Page 43: (R) Rts Control Menu

    RTS is active when the local radio’s CTS input line is active. Valid control conditions for RTS are ON = +12volts, OFF = -12volts as per RS232 conventions. © © © © RF Innovations Pty Ltd, 1998 Page: 41 223889, Revision 2.2...

  • Page 44: (A) Auxiliary I/O Port

    Whenever this key is pressed the Auxiliary Remote setting toggles between ON and OFF. When OFF the Aux I/O will not operate and the power up defaults will not be in operation. © © © © RF Innovations Pty Ltd, 1998 Page: 42...

  • Page 45: (D) Aux I/O Direction Menu

    Therefore, the status will not change when the I/O port numbers are selected. The settings are toggled between low and high every time the I/O port number is selected. An example of the menu is shown in Figure 6-31. © © © © RF Innovations Pty Ltd, 1998 Page: 43 223889, Revision 2.2...

  • Page 46: (P) Powerup Defaults

    (P) Set Menu Password This selection allows the menu password to be changed. Therefore an unauthorised person cannot enter the menu system and change the radio’s settings. © © © © RF Innovations Pty Ltd, 1998 Page: 44 223889, Revision 2.2...

  • Page 47: (D) Diagnostics Menu

    This selection allows the user to delete the security code (T) Set Current Time This allows the real time clock’s time to be set. Allow the RFI-9256 doesn’t contain a true real time clock it can maintain a fairly accurate notion of time.
  • Page 48 The reading on the signal row is the RSSI (received signal strength indicator in dBm) of the radio for each channel the unit operates on. If a ‘??’ is displayed as the signal value then there wasn’t a recent sample for that channel. © © © © RF Innovations Pty Ltd, 1998 Page: 46 223889, Revision 2.2...
  • Page 49 It is an indication of the amount of work the controller is doing. Tasks are added or removed from the list as functions are enabled or disabled by the user. © © © © RF Innovations Pty Ltd, 1998 Page: 47...
  • Page 50 The source/destination ports are one of three ports, the main, auxiliary or the virtual port. The virtual port is an internal port used by the radio to communicate through the menus. © © © © RF Innovations Pty Ltd, 1998 Page: 48...

  • Page 51: (F) Fault Log Menu

    As the Modem operates in its normal modes it builds up a picture of how well it is operating in any given environment and keeps track of the statistics for that operation. The user may access these statistics © © © © RF Innovations Pty Ltd, 1998 Page: 49...
  • Page 52 This function simply clears the physical layer logging information from memory. (S) Clear Serial Layer Logging This function simply clears the serial layer logging information from memory. © © © © RF Innovations Pty Ltd, 1998 Page: 50 223889, Revision 2.2...

  • Page 53: The Hayes

    The Hayes Compatible AT Command Set he RFI-9256 supports many Hayes compatible commands and command sequences, this enables users and operators to fully control and operate the Radio Modem and in most cases emulate land line or phone modems for their communication needs. Some commands are implemented for completeness only and do not perform any function.

  • Page 54: Port Selection Modifier

    The modem will execute the command as if the spaces are not there. Port Selection Modifier Unlike conventional modems the RFI-9256 has two serial ports. Each can be configured independently. So to allow access and configuration of alternative ports a modifier may be appended to the end of the command string.

  • Page 55: Response Codes

    For example: After a command is successfully executed, the response is: OK © © © © RF Innovations Pty Ltd, 1998 Page: 53 223889, Revision 2.2...

  • Page 56: Dialing

    Similarly, you must hang up the phone after calling another person. If you don’t, no one will be able to call you. To hang up your modem: Type: ATH0 <CR> © © © © RF Innovations Pty Ltd, 1998 Page: 54 223889, Revision 2.2...

  • Page 57: Configuring The Modem

    &V command, your modem sends a list of the current AT command and S Register settings to your computer. If you are getting no response it is likely to because local command state has not been entered. See The Escape Sequence. © © © © RF Innovations Pty Ltd, 1998 Page: 55 223889, Revision 2.2...

  • Page 58: Modem Commands

    Disable local command state echo ATE1 Enable local command state echo ATH Hang Up The H command forces the modem to hang up. Command Description ATH0 Hang up © © © © RF Innovations Pty Ltd, 1998 Page: 56 223889, Revision 2.2...

  • Page 59: Ati Information

    ATSn? Command and AT&V command. Command Description ATQ0 Send response codes to the screen ATQ1 Do not send response codes to the screen © © © © RF Innovations Pty Ltd, 1998 Page: 57 223889, Revision 2.2...

  • Page 60: Atv Verbal Response

    DCD is always asserted (the computer assumes the remote modem is ready to communicate). AT&C1 DCD follows the online produced by a connection to a remote modem. AT&C2 DCD follows the DSR from a remote modem © © © © RF Innovations Pty Ltd, 1998 Page: 58 223889, Revision 2.2...

  • Page 61: At&D Controlling Data Terminal

    Command Description AT&G0 Multi Port operation. AT&G1 Exclusive port operation. AT&G2 Priority use of this port. © © © © RF Innovations Pty Ltd, 1998 Page: 59 223889, Revision 2.2...

  • Page 62: At&K Flow Control

    Not all changes require the &W command, the ones that do are outlined in the AT command tables on page 70. Command Description AT&W Save general modem configuration data AT&W1 Submit serial port configuration © © © © RF Innovations Pty Ltd, 1998 Page: 60 223889, Revision 2.2...

  • Page 63: S' Register Commands

    If a carrier is not detected within the time specified in this register, the modem will hang up and return a NO CARRIER message. Examples ATS7=20 Wait up to 20 seconds for a connection © © © © RF Innovations Pty Ltd, 1998 Page: 61 223889, Revision 2.2...

  • Page 64: Ats12 Escape Sequence Guard

    Supported for compatibility only, reports OK. ATS40 Packet Timer Range: 0-1000 ms Default: 0 (Disabled) Sets the Packet timer in number of milliseconds. Enter 0 to disable. © © © © RF Innovations Pty Ltd, 1998 Page: 62 223889, Revision 2.2...

  • Page 65: Ats41 Number Of Retries For Arq

    Range: 0,10,20,25,30 dBm Default: 20 dBm Set the Maximum Transceiver output power parameter. ATS47 Frame Time Range: (5),8,10,15,20,25,30,35 ms Default: 20 ms Set the Frame Time parameter © © © © RF Innovations Pty Ltd, 1998 Page: 63 223889, Revision 2.2...

  • Page 66: Ats48 Frame Bias

    Set Remote Tx Address parameter (Phone number). This is only applicable if the unit is switched to Point-to-Point mode. ATS60 Set Logging Level Range Description Errors Only Warnings and Errors Status Information General Information Debug Information Set Fault/Debug logging level. Default: © © © © RF Innovations Pty Ltd, 1998 Page: 64 223889, Revision 2.2...

  • Page 67: Ats61 Set Unix

    ATS82 Get Auxiliary I/O Direction Mask Range: 0x00-0xFF (0-255) Default: 0x00 Get/Set the bit direction of the 8-bit auxiliary I/O port on the radio that you are connected to. © © © © RF Innovations Pty Ltd, 1998 Page: 65 223889, Revision 2.2...

  • Page 68: Ats83 Set Auxiliary I/O Power-Up Default

    Local DSR controls DCD Remote CTS controls DCD Local CTS controls DCD DCD Always ON DCD Always OFF DCD disabled Sets the DCD Control of a Serial Port. Default: © © © © RF Innovations Pty Ltd, 1998 Page: 66 223889, Revision 2.2...

  • Page 69: Ats91 Set Rts Control

    Set the Parity of the Main Serial Port. Must be used in conjunction with the AT&W1 command. Default: ATS102 Set Port data bits Range Description Seven Bit Data Eight Bit Data © © © © RF Innovations Pty Ltd, 1998 Page: 67 223889, Revision 2.2...

  • Page 70: Ats103 Set Port Stop

    % Register. The value of the % Register can be read with the AT%r? command where r is the register. © © © © RF Innovations Pty Ltd, 1998 Page: 68...

  • Page 71: At%20 Set Unit Name

    Default: Other Commands There are more AT commands available on the RFI-9256, to many to list in descriptive form. The other commands can be found in the tables on page 70. © © © © RF Innovations Pty Ltd, 1998 Page: 69 223889, Revision 2.2...
  • Page 72 Command must be last on the command line ! in &w &w must follow for changes to take effect Bold Defaults Gray For Compatibility only (no function) © © © © RF Innovations Pty Ltd, 1998 Page: 70 223889, Revision 2.2...
  • Page 73 ! in &w1 &w1 or &w must follow for changes to take effect ! in &w &w must follow for changes to take effect Gray For Compatibility only (no function) © © © © RF Innovations Pty Ltd, 1998 Page: 71 223889, Revision 2.2...
  • Page 74 CARRIER ERROR Command error BUSY The dialed number or extension is busy NO ANSWER Extension not supported FAULT Protocol or other error Table 7-6 Response Codes © © © © RF Innovations Pty Ltd, 1998 Page: 72 223889, Revision 2.2...

  • Page 75: Dialup Networking

    Dialup Networking he RFI-9256 provides several features to allow networking, dual port control and remote configuration. The RFI-9256 has 2 independent serial ports that can be used in communication. Extension Numbers To allow access to internal and external ports the modem provides extension numbers. These extension numbers work like an internal PABX where the user appends a two-digit extension number to the destination radios dial string.

  • Page 76: Repeaters

    D I A L U P N E T W O R K I N G Repeaters To provide simple network functionality the RFI-9256 provides a several Repeater modes and uses a number analysis system. The Back-to-Back Repeater mode configures the Main serial port and removes its control from the Serial Configuration Menu.
  • Page 77 This simple numbering system allows several repeaters to be concatenated and allows repeaters to branch to other repeaters in a tree like formation. Figure 8-3 Repeater - Logical Connection Figure 8-4 Repeater - Physical Connection © © © © RF Innovations Pty Ltd, 1998 Page: 75 223889, Revision 2.2...

  • Page 78: Establishing Communication Links

    This allows two RFI-9256 radio modems to look like a direct telephone line connection. Only one slave can be connected to the master at any one time in this mode, but the master can communicate with any slave within its network.

  • Page 79: Point To Point Repeater

    RF speed of the link, only the data latency is affected. Figure 9-5 Point to Point System with Multiple Repeaters - Logical View © © © © RF Innovations Pty Ltd, 1998 Page: 77 223889, Revision 2.2...

  • Page 80: Point To Multipoint

    Note, point to multi-point (Dialup) is the only mode available when the radio is configured (using the menu) as a repeater. Figure 9-6 Point to Multipoint System with Repeaters - Logical View © © © © RF Innovations Pty Ltd, 1998 Page: 78 223889, Revision 2.2...

  • Page 81: 10 Auxiliary Input/Output Port

    This prevents devices that are attached to the radios I/O from being unintentionally enabled. Sample Rate control – Used to balance the performance of the RFI-9256 between fast updates from the I/O device for one application and fast serial data throughput for another application. Fast sample rates below 15ms may degrade serial data throughput when trying to obtain serial data transfer rates of faster than 50,000 bits per seconds.

  • Page 82: Firmware Compatibility

    C O M P A T I B I L I T Y Firmware Compatibility The version numbering scheme The RFI-9256 products contain a firmware version string. This version information provides some information regarding compatibility with other firmware versions. Product Name: Identifies the modem hardware type such as RFI-419, RFI-9256 or RFI-156.

  • Page 83: Air Interface Compatibility (Ai)

    Modems with different versions of firmware may be still compatible provided that features of the newest version modem are not utilized. Version Inter-Compatibility Guide The following firmware versions are for the RFI-9256 Data Strike Series 3 Radio. Firmware 1.08 1.09 Rev A-...

  • Page 84: Diagrams

    The diagram in Figure B-1 (next page) shows the dimensions of the mounting holes on the RFI- 9256 radio. The diagram in Figure B-2 (next page) is a cable assembly diagram for the RFI-9256. The two communication ports are output via DB9 connectors and supply power to the radio.
  • Page 85 D I A G R A M S © © © © RF Innovations Pty Ltd, 1998 Page: 83 223889, Revision 2.2...
  • Page 86 D I A G R A M S © © © © RF Innovations Pty Ltd, 1998 Page: 84 223889, Revision 2.2...

  • Page 87: Technical Specifications

    Table C-1 RFI-9256 Radio Specifications The RANGE is dependent upon the antenna used and the environment, a typical range calculator is available to download from the RFI WEB site (http://www.rfinnovations.com.au/). © © © © RF Innovations Pty Ltd, 1998 Page: 85 223889, Revision 2.2...

  • Page 88: Pin Assignments

    RS232 control line functions are dependant upon device program options and can be used as flow control on the Aux Port. I/O controls and Analogs are 0-5V high impedance (4K7 Ohms) Consult RFI. " Consult RFI for expansion options. © © © © RF Innovations Pty Ltd, 1998 Page: 86 223889, Revision 2.2...

  • Page 89: Eia Standard Rs-232-C Pin Assignments

    Data Terminal Ready Received Data Transmitted Data Data Carrier Detect Signal Ground Data Set Ready Clear To Send Request To Send Table C-4 DB-9 RS-232 Pin Assignments © © © © RF Innovations Pty Ltd, 1998 Page: 87 223889, Revision 2.2...

  • Page 90: Factory Defaults

    (settings are the same for both ports) (settings are the same for both ports) 19200 Baud No Parity 8 Data bits 1 Stop bit No Flow Control Packet Timer Disabled © © © © RF Innovations Pty Ltd, 1998 Page: 88 223889, Revision 2.2...

  • Page 91: Modem And I/O Configuration Menu

    Unit name is blank (unit has no name) Menu Password is disabled Security code is disabled Menu timeout is 15 minutes. Diagnostics Menu Log level = General Information © © © © RF Innovations Pty Ltd, 1998 Page: 89 223889, Revision 2.2...

  • Page 92: Trouble Shooting

    If the application will not work with a hard wire connection then it will not work with the RFI-9256, and the problem lies within the application or other hardware (such as the computer serial ports or flow control).
  • Page 93 LapLink causing the problem and unfortunately there is no documented solution for “I have tried to access the menu via the RFI-9256 front panel (Mode 6 – config) but I get no menu on my terminal program.”...
  • Page 94 The problem could be at the opposite end of the radio link. For example, if there is a device attached to a remote modem, and the baud rate of the device and modem do not match, you might experience a similar problem. © © © © RF Innovations Pty Ltd, 1998 Page: 92 223889, Revision 2.2...

  • Page 95: Glossary

    Block Group of characters treated as a unit for the purpose of data transmission. An acronym for Bits Per Second. Transmission rate of binary numbers (bits). © © © © RF Innovations Pty Ltd, 1998 Page: 93 223889, Revision 2.2...
  • Page 96 Control signal sent by the DCE to indicate that the DTE may begin a transmission. Communications Link When communication is established between modems, information can be passed between them. Signified on the RFI-9256 by both modems having Network Link, Carrier Detect and On-Line LEDs activated and the receive and transmit LEDs flash as data is sent.
  • Page 97 A call progress signal returned by a telephone-switching machine to indicate that it is ready to accept a telephone number. ATDT (Hayes commands) supported for compatibility. Dial-up Establishing a temporary connection to a remote system or computer. © © © © RF Innovations Pty Ltd, 1998 Page: 95 223889, Revision 2.2...
  • Page 98 An acronym of Data Terminal Equipment. See Data Terminal Equipment. Dual Port Control The ability of the RFI-9256 modems to communicate out of both the Aux and Main ports to either the Aux or Main port of the receiving modem.
  • Page 99 Information transferred into a computer from some external source, such as the keyboard, a disk drive, a modem or a scanner. Also, the act or process of transferring such information. © © © © RF Innovations Pty Ltd, 1998 Page: 97...
  • Page 100 List of information concerning the modem. See Fault Log, Physical Layer Log, and Serial Layer Log. Loop-back Directing signals back toward the source at some point in the communications path. Used in testing RFI-9256. Main Port Port connected to full RS-232 (7 wire) cable. Cable contains Tx, Rx, DCD, RTS, CTS, DTR, and ground. Allows hardware flow control (hardware handshaking).
  • Page 101 On-line Describes the state of a connection as in session and currently connected. The system has dialed and a communications link has been formed allowing the transfer of data. On-line LED on front of RFI-9256 is activated. On-line Requests Timer Controls the time between slave integrity checks by the master.
  • Page 102 One radio (the master) communicates with more that one slave, while each slave can only talk to the master. As opposed to Point-to-Point Communication. Point-to-Point Communication A connection between two points only. Communications established automatically with the RFI-9256 and is not controlled by the AT commands. As opposed to Point to Multipoint Communication.. Port The point of connection, usually a physical connector, between a computer and a peripheral device, another computer or a network.
  • Page 103 Data transmission in which each bit of information is sent sequentially through a single data path. Serial Logging Shows information regarding the performance of both serial ports. © © © © RF Innovations Pty Ltd, 1998 Page: 101 223889, Revision 2.2...
  • Page 104 G L O S S A R Y Serial Port Port that receives/transmits serial data. The RFI-9256 has two serial ports, the Main and Auxiliary (Aux) ports. Simplex Data communications in one direction only. Slave Passive modem. Requires a Master to synchronise timing to enable successful transmission. May initiate communication, but can only communicate with the Master.
  • Page 105 Yagi Antenna Directional antenna. ZMode m Designed to rectify limitations of previous models as well as providing support for hi speed, packet and network communication environments. © © © © RF Innovations Pty Ltd, 1998 Page: 103 223889, Revision 2.2...
  • Page 106 G L O S S A R Y © © © © RF Innovations Pty Ltd, 1998 Page: 104 223889, Revision 2.2...
  • Page 107 B L A N K P A G E © © © © RF Innovations Pty Ltd, 1998 Page: 105 223889, Revision 2.2...
