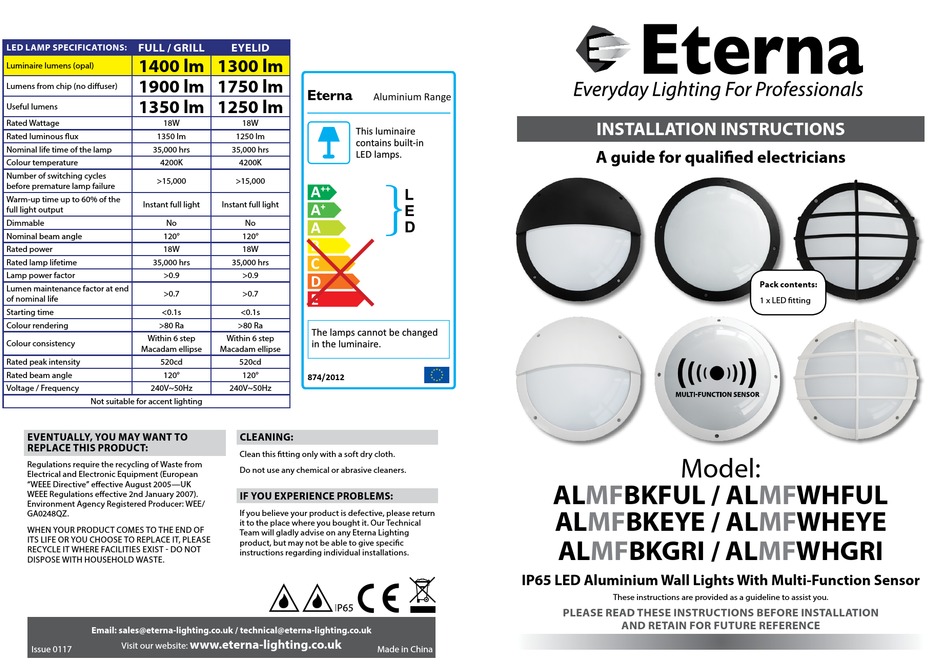

Eterna ALMFBKFUL Installation Instructions

Ip65 led aluminium wall lights with multi-function sensor

Advertisement

Quick Links

FULL / GRILL
LED LAMP SPECIFICATIONS:
1400 lm 1300 lm
Luminaire lumens (opal)
1900 lm 1750 lm
Lumens from chip (no diffuser)
1350 lm 1250 lm
Useful lumens
Rated Wattage
18W
Rated luminous flux
1350 lm
Nominal life time of the lamp
35,000 hrs
Colour temperature
4200K
Number of switching cycles
>15,000
before premature lamp failure
Warm-up time up to 60% of the
Instant full light
full light output
Dimmable
No
Nominal beam angle
120°
Rated power
18W
Rated lamp lifetime
35,000 hrs
Lamp power factor
>0.9
Lumen maintenance factor at end
>0.7
of nominal life
Starting time
<0.1s
Colour rendering
>80 Ra
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity
520cd
Rated beam angle
120°
Voltage / Frequency
240V~50Hz
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website:
Issue 0117
EYELID
18W
1250 lm
35,000 hrs
4200K
>15,000
Instant full light
No
120°
18W
35,000 hrs
>0.9
>0.7
<0.1s
>80 Ra
Within 6 step
Macadam ellipse
520cd
120°
874/2012
240V~50Hz
CLEANING:
Clean this fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
www.eterna-lighting.co.uk
MODELNO.
Aluminium Range
ALMFBKFUL / ALMFWHFUL
IP65 LED Aluminium Wall Lights With Multi-Function Sensor
Made in China
Installation INSTRUCTIONS
A guide for qualified electricians
Model:
ALMFBKEYE / ALMFWHEYE
ALMFBKGRI / ALMFWHGRI
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x LED fitting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALMFBKFUL and is the answer not in the manual?

Questions and answers

Summary of Contents for Eterna ALMFBKFUL

  • Page 1 GA0248QZ. it to the place where you bought it. Our Technical WHEN YOUR PRODUCT COMES TO THE END OF Team will gladly advise on any Eterna Lighting ALMFBKGRI / ALMFWHGRI ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE product, but may not be able to give specific RECYCLE IT WHERE FACILITIES EXIST - DO NOT instructions regarding individual installations.
  • Page 2 Eterna Lighting cannot accept any liability for selected to light. While there is movement within 04) Prepare the holes in your mounting surface as loss, damage or premature failure resulting from range of the unit the light will remain on.
  • Page 3 III - Detection Range 50% IV - Detection Range 10% Fig 1 Detection Area Hold Time Daylight Sensor Corridor Function 100% Disable RED DIRECTIVE 50Lux Eterna Lighting Ltd 3min 15Lux 10min Microwave Occupancy Sensor ∞ Full declaration available at www.eterna-lighting.co.uk 10min 5Lux...

This manual is also suitable for:

AlmfwheyeAlmfbkgriAlmfwhgriAlmfwhfulAlmfbkeye
