Monster M7 Quick Start Manual

1

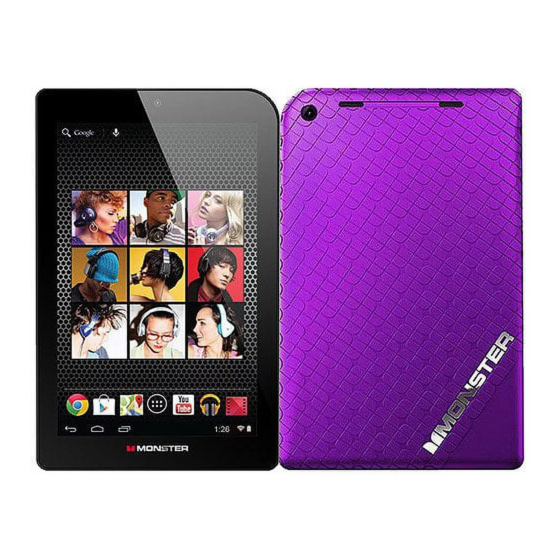

Introduction
1. Front Camera
2. Power on/off
3. Vol+
4. Vol-
5 MIC
6. Earphone Jack
7. Micro USB/Charger 8. Interface
8. Micro SD card interface
9. MINI HDMI interface
10. Back Camera
11. Loudspeaker -L
12. Loudspeaker -R
3

CHarging Battery

1. Connect the supplied DC Charger to the "Micro USB/Charger Interface" port on
the Tablet and the AC outlet on the wall.
2. By connecting the DC Charger, the battery will be charged. It will take about 5 hours for battery to be fully charged. The
animation on the screen shows full charge. When the device prompts low battery, please charge it by provided charger.
To improve the longevity of the battery, you may charge for another 15 minutes after it prompts the battery is full.
4
Power On
1. Power On: Press and hold the power switch for 5 seconds; the unit displays the start-up logo and enters the
working mode.
Note; Power Off: Press and hold the power switch for 3 seconds to turn the unit off.
Sleep: While the device is at working status, press the power switch, it enters the sleeping mode, and the
screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function
when you don't' use the device temporary to save power.
5
Setting - Main Menu
1. Tap on the icon in
the main interface, the
main menu is appeared.
6
Setting - Menu
1. Tap on "Setting"
in the main menu to
enter the setting
menu.
7
Setting - Date & Time
1. Tap on "Date & Time" in the setting interface to set the date and time. You can choose Automatic date &
Time that is provided by network, or can manually set them by following the menu in the screen
8
Setting - Wi-Fi Connection
1. Tap on "Wireless & network" in the setting menu to enter the wireless and network setting interface.
2. Tap on "Wi-Fi" to turn on the WI- FI.
3. Tap on "Wi-Fi setting" to set and manage wireless access.
4. Tap on "Network Notification". The screen shows the list of the open network it searched.
Tap on the name of the network and the screen shows the setting window. You may connect it to
Wi-Fi according to the prompts. You need to input the user name and password if networks are encrypted.
®
QUICK START GUIDE
2. The main menu including the system setting,
music playback, video playback, web browser
and other applications you installed.
2. The setting menu is shown and you can start
the system setting by tapping the corresponding
setting items.
2
Before
Starting
1. Please have Wi Fi connection available.
2. G-mail account is required to get the most out of your
tablet. It is recommended to setup your Gmail
account before starting operation. You can also setup
your account by following this initial setup guide.
