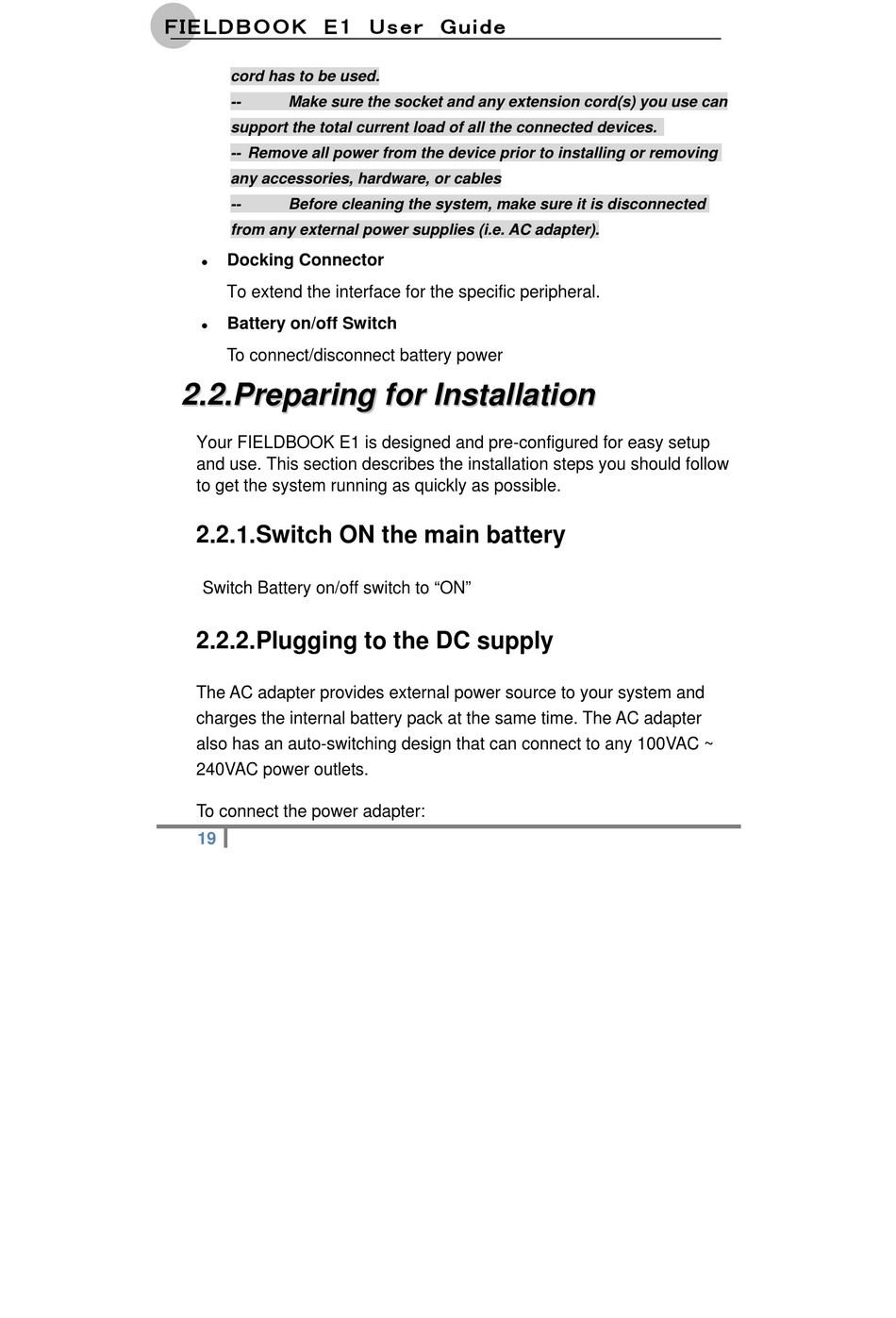

FIELDBOOK E1 User Guide
cord has to be used.
-- Make sure the socket and any extension cord(s) you use can
support the total current load of all the connected devices.
-- Remove all power from the device prior to installing or removing
any accessories, hardware, or cables
-- Before cleaning the system, make sure it is disconnected
from any external power supplies (i.e. AC adapter).
Docking Connector

To extend the interface for the specific peripheral.
Battery on/off Switch

To connect/disconnect battery power
2 . 2 . P r e p a r i
2 . 2 . P r e p a r i
Your FIELDBOOK E1 is designed and pre-configured for easy setup
and use. This section describes the installation steps you should follow
to get the system running as quickly as possible.

2.2.1.Switch ON the main battery

Switch Battery on/off switch to "ON"

2.2.2.Plugging to the DC supply

The AC adapter provides external power source to your system and
charges the internal battery pack at the same time. The AC adapter
also has an auto-switching design that can connect to any 100VAC ~
240VAC power outlets.
To connect the power adapter:
19
n g f o r I n s t a l
n g f o r I n s t a l
l a t i o n
l a t i o n
