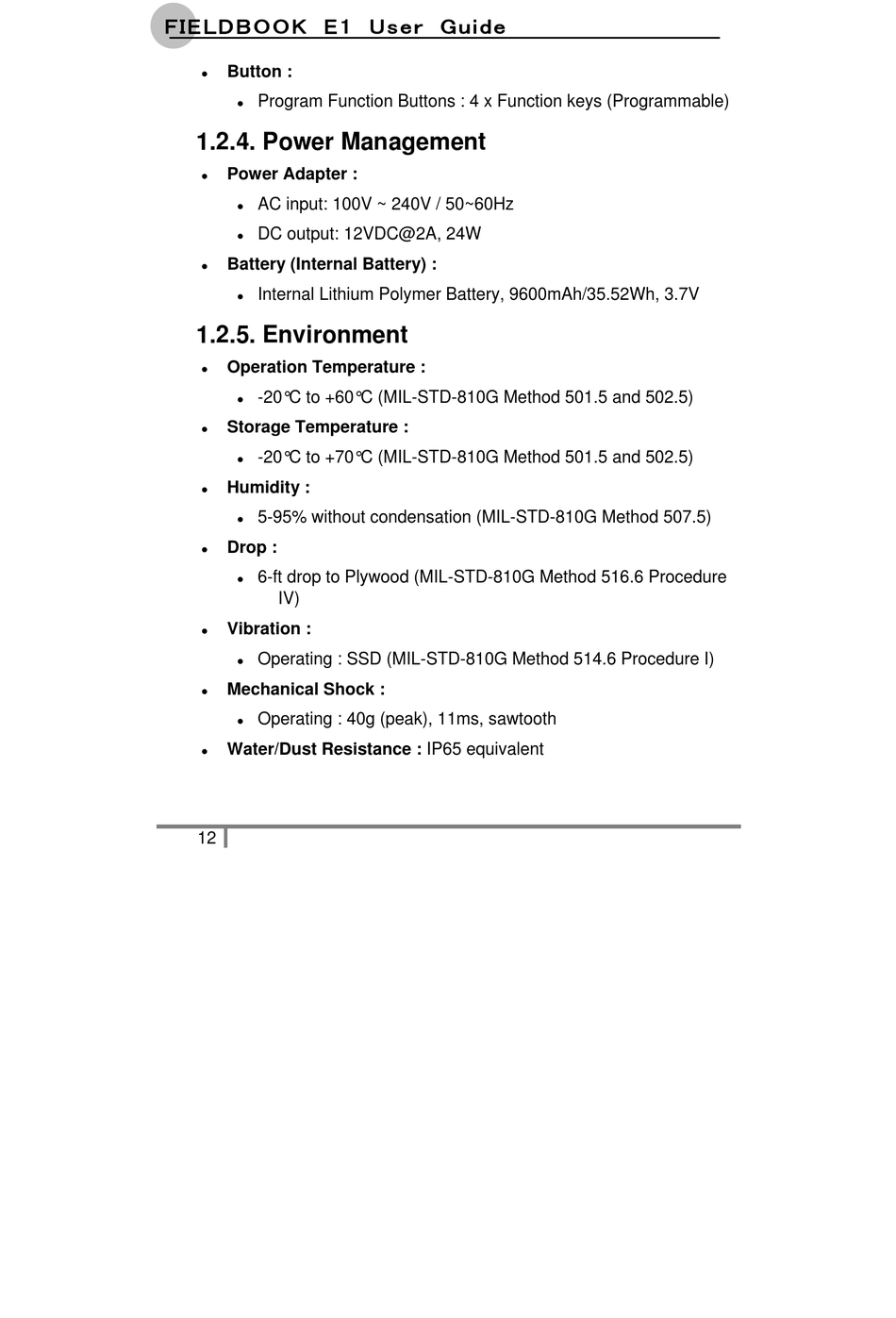

FIELDBOOK E1 User Guide
Button :

Program Function Buttons : 4 x Function keys (Programmable)


1.2.4. Power Management

Power Adapter :

AC input: 100V ~ 240V / 50~60Hz

DC output: 12VDC@2A, 24W

Battery (Internal Battery) :

Internal Lithium Polymer Battery, 9600mAh/35.52Wh, 3.7V

1.2.5. Environment
Operation Temperature :

-20°C to +60°C (MIL-STD-810G Method 501.5 and 502.5)

Storage Temperature :

-20°C to +70°C (MIL-STD-810G Method 501.5 and 502.5)

Humidity :

5-95% without condensation (MIL-STD-810G Method 507.5)

Drop :

6-ft drop to Plywood (MIL-STD-810G Method 516.6 Procedure

IV)
Vibration :

Operating : SSD (MIL-STD-810G Method 514.6 Procedure I)

Mechanical Shock :

Operating : 40g (peak), 11ms, sawtooth

Water/Dust Resistance : IP65 equivalent

