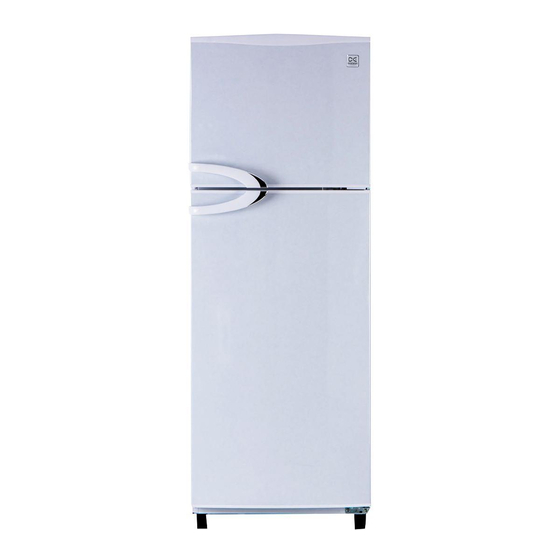

- Page 1 All manuals and user guides at all-guides.com S/M No. : FR33000011 Service Manual Refrigerator Model: FR-330 DAEWOO ELECTRONICS CO., LTD.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com contents 1. SPECIFICATION ..................1 2. NAME OF PARTS ..................2 3. REFRIGERANT CYCLE DIAGRAM ............3 4. MACHINE ROOM VIEW AND PART LIST ..........4 5. METHODS OF EXCHANGING MAIN PARTS ..........5 6. EXPLODE VIEW AND PARTS LIST ............9 7. -
Page 3: Specification
All manuals and user guides at all-guides.com 1.Specification Refrigerant 100g R134a COOLING System Fan Cooling Convection Type Refrigeration System Air Forced Convection Defrost System Forced Fin-Evaporator Type Defrost Operation Automatic Start & Stop Cold Control Adjustable Dial Freezer Capacity 207L Refrigerator 268L Total... -
Page 4: Name Of Parts
All manuals and user guides at all-guides.com 2. NAME OF PARTS... -
Page 5: Refrigerant Cycle Diagram
All manuals and user guides at all-guides.com 3. REFRIGERANT CYCLE DIAGRAM... -
Page 6: Machine Room View And Part List
All manuals and user guides at all-guides.com 4. MACHINE ROOM VIEW AND PART LIST PART NAME PART NAME PART NAME 1 BASE CAB AS 7 WI-CON PIPE 13 BASE COMP AS 2 COMPRESSOR 8 DRYER AS 14 BRACKET EARTH 3 P-RELAY AS 9 PIPE SUC AS 15 POWER CORD AS 4 PIPE VAPORI AS... -
Page 7: Methods Of Exchanging Main Parts
All manuals and user guides at all-guides.com 5. METHODS OF EXCHANGING MAIN PARTS (1) Freezing room louver 1) Unscrew, remove the F-louver by pulling forward with inserting screwdriver into the hole of F louver. 2) Assemble it by pressing triangle shape ( ) by hand. - Page 8 All manuals and user guides at all-guides.com Methode of exchanging main parts 4) Pull slightly forward with instant force. 5) Remove the housing 6) After romoving the control switch knob and two screws for fixing control switch, change the control switch to new one.
- Page 9 All manuals and user guides at all-guides.com Methode of exchanging main parts (3) Bimetal 1) Cut off the wire bind. 2) Take out the bimetal. BIMETAL (4) Glass tube heater Evaporator fastening screw 1) Remove 2 screws that fasten the evaporator. 2) Slightly pull the evaporator to the arrow's direction.
- Page 10 All manuals and user guides at all-guides.com Methode of exchanging main parts 4) Cut the both ends of glass tube heater tube heater lead wires and insulate and seal lead tip remaining in refrigerator with tape etc. Raise Heater Heater Glass tube Cover fi t...
-
Page 11: Explode View And Parts List
All manuals and user guides at all-guides.com 6. EXPLODE VIEW AND PARTS LIST 1. Expoloded views SPAIN DESPA (DAEWOO,FR-330) -
Page 12: Parts List
All manuals and user guides at all-guides.com 7. PARTS LIST SPAIN DESPA (DAEWOO , FR-330) PART CODE PART NAME DESCRIPTION Q'TY REMARK ASS'Y CAB URT HCFC-141B 4019R54111 GUIDE DRN 3012800501 HEATER GLAS AS 150W 4019R73571 COVER DEFR HTR *T GALVANIED... - Page 13 CASE EGG GPPS 3019015900 POCKET EGG GPPS 3019016000 POCKET MULT GPPS 3019016100 POCKET BOTL GPPS 3012624200 HANDLE R A A TYPE 3011611110 DECO F HNDL AS A TYPE 3014443500 PIPE WI-CON AS FR-330 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN -11-...
