Ecco Reflex 7160 Series Installation And Operation Instructions Manual

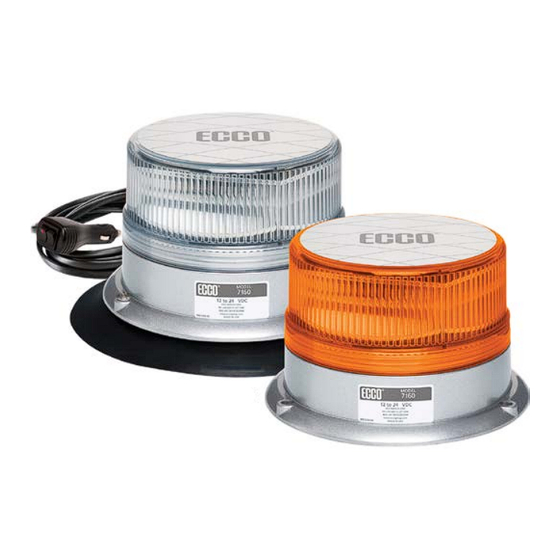

ECCO's 7160 Series - Reflex™ LED Beacons offer SAE
Class I, high intensity light output along with modern styling
and premium features. Reflex™ beacons use reflector
technology to produce a powerful, SAE Class I/California
Title 13 warning signal in a light that offers 12-24V operation,
15 flash patterns, hi/lo intensity control and synchronization
capability. Reflex™ Beacons offer a long, maintenance-free
service life, extremely low amp draw and a robust, vibration
resistant design.
!
WARNING!
Failure to install or use this product according to manufacturers recommendations may result in property
damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understand the safety
information contained in this manual.
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to ensure the safety
of you and those you are trying to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing, which can cause
personal injury and/or severe vehicle damage, including fire.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance of the system is
maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing eye contact with the
roadway.
5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle operator should
ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors), people, vehicles, or other
obstructions.
6. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal. Never take the right-of-way for
granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traffic, responding at a high rate of
speed, walking on or around traffic lanes.
7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws regarding warning
signal devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The manufacturer assumes no liability for
any loss resulting from the use of this warning device.
Specifications:
Size: Permanent
V/Magnet
Weight: Permanent
V/Magnet
920-0102-00 Rev. G
Installation and Operation Instructions
6.5" dia. x 3.9" high
6.5" dia. x 4.7" high
approx. 2.75 lbs.
approx. 3.8 lbs.
7100 Series LED Beacon
Input Voltage:
Current Draw:
Operating Temp. Range: -30°C to +50°C
12 to 24 VDC (9-32V)
2.0 Amps - Peak
26.0 Watts - Maximum
Page 1 of 14
