Summary of Contents for Holatek A3

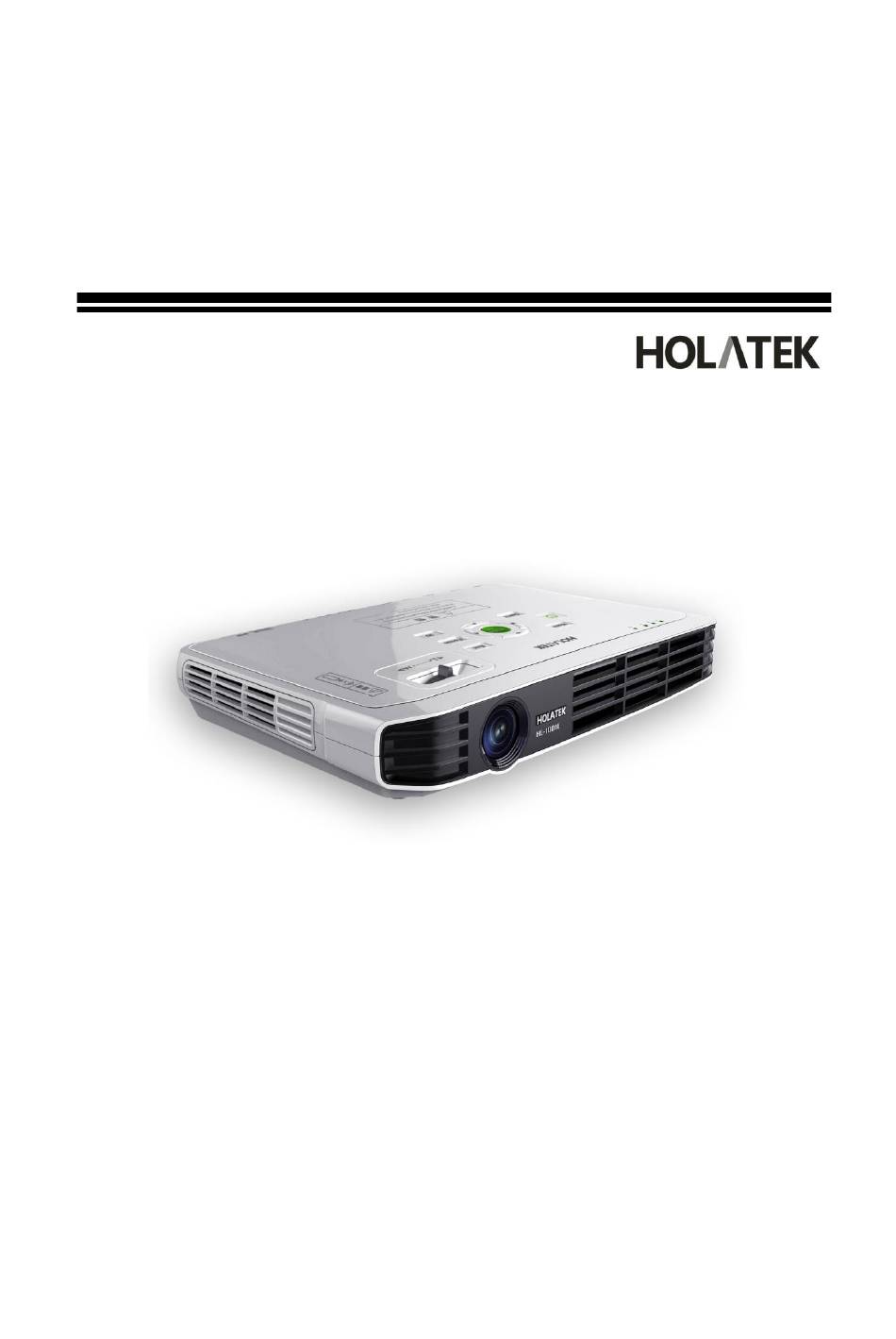

- Page 1 HOLATEK – A3 User Manual 3D LED Smart Projector & TV...
-
Page 2: Table Of Contents
Contents SAFETY INSTRUCTIONS ....................4 ......................4 HE SAFETY SIGNS ....................... 4 OTICE FOR USE ....................10 ATTERY NSTRUCTION OPERATION INSTRUCTIONS ..................11 ....................11 HE LIGHT SOURCE ..................... 12 THER NSTRUSTIONS SUMMARY ......................... 14 ....................... 14 ACKING LIST ......................15 YSTEM UPGRADE THE LOCATION AND FUNCTION OF CONTROL ............ -
Page 3: Safety Instructions
Safety Instructions Thank you for purchasing the HOLATEK Projector. You need to read carefully the “safety instructions” before using it. After reading the User Manual, please keep it for future reference. The safety signs To ensure the safety of you and others and keep the items from damages, the... - Page 4 2. Unplug the power plug of the machine; 3. Contact your dealer or the HOLATEK authorized service center. ● Fault Please immediately stop using the machine (continuing using it will lead to dangers of causing fire and electric shock) if the picture display...
- Page 5 1. Turn off the power of the machine; 2. Unplug the power plug of the machine; 3. Contact your dealer or the HOLATEK authorized service center. ● Dismantling and reconstruction Do not dismantle or reconstruct the machine in any way as the machine contains a lot of high-voltage components which may lead to dangers of electric shock and burn.
- Page 6 1. Turn off the power of the machine; 2. Unplug the power plug of the machine; 3. Contact your dealer or the HOLATEK authorized service center. ● Incineration Do not discard the machine by incineration, or it will lead to dangers of explosion, fire and personal injury.
- Page 7 All internal inspections, debugging and maintenance must be entrusted to your dealer or the HOLATEK authorized service center Do not wet the remote control. Keep it from water or other liquids as it may lead to dangers of causing fire and electric shock ●...
- Page 8 If you are using a cardiac pacemaker or any other electronic medical devices, please consult doctors or the manufacturers of such devices before operating the product. Attention ● Power cord Improper use of power cord may result in dangers of causing fire and electronic shock, users must strictly observe the following precautions: ...
-
Page 9: Battery Instruction
The dirty machine inner with accumulated dusts may result in dangers of causing fire and breakdowns; Please contact the dealer or the HOLATEK authorized service center once per year to have the machine’s internal cleaned. Note that, such cleaning services are not free... -
Page 10: Operation Instructions
6,000 hours, the shorter term prevails; If light source unit is not bright or become obviously dark, it indicates that the said light source has reached its life span. Please contact your dealer or the HOLATEK authorized service center for replacement... -
Page 11: Other Instrustions
Other Instrustions This machine is composed of precision parts and failure to comply with the following instructions may result in failure to correctly save data and risk of breakdowns: Do not operate or place the projector in any of the following environments as it may lead to breakdowns and damage to the machine ... - Page 12 ● Clean with a soft dry cloth The projector is dirty; please clean it with a soft dry cloth soaked in the water and neutral detergent diluents. Wring the cloth till dry before wiping; diluents, benzene and any other volatile chemical are not allowed to clean the projector, otherwise the printing would be wiped and dirty the projector.
-
Page 13: Summary
Packing list ● Carefully open the package and check whether the projector includes the following items: Packing list Graphic Amount HOLATEK-A3 intelligent projector Remote controller AC power cord USB line... -
Page 14: System Upgrade
User manual Warranty card Note: if any missing items or damage or device does not work, please contact the distributor immediately. System upgrade ● Android software upgrade process is as follows: 1. First of all, you need a Windows PC with access to the internet; 2. -
Page 15: The Location And Function Of Control
The location and function of control External view Corresponding Definition instruction number Air Inlet Air Inlet Controlling （detailed in “control Controlling area”） LED LENS LED LENS IR Receiver IR Receiver Air Outlet Air Outlet Indicator (see details in Indicator “Indicator”）... -
Page 16: Control Area
Control area Corresponding Definition instruction number Menu Menu Power Power Source Source ↓ Down Enter W-T（W stands for the wide section in zoom lens, T stands for the long period）... -
Page 17: Rear View
DLP Esc DLP Esc Volume+ Volume+ ↑ Volume- Volume- Rear view Corresponding Definition instruction number Update Update TF-card slot USB2.0 interface Audio optical interface Headphones, speakers output Speaker Speaker (non-interface) -
Page 18: Bottom View
AC power line interface RJ-45 network interface OTG-USB interface HDMI interface (input) AV interface (input) Bottom view Corresponding Definition instruction number Rotate, rise and adjust Front floor mat *2 projection angle Rear floor mat *2 Anti-skidding Positioning hole *4 For installing hanger/bracket... -
Page 19: Function Of Remote Control
Function of remote control Corresponding Definition instruction number Menu Menu Key response Key response Power Power... - Page 20 ← Left Enter Mute Mute DLP Menu DLP Menu Volume+ Volume+ Volume- Volume- 3D L/R 3D L/R Local input Local input Reserve (Red) Reserve (Red) Reserve (Green) Reserve (Green) Home Home Back Back ↑ → Right ↓ Down DLP Esc DLP Esc Keystone+ Keystone correction+...
-
Page 21: Projected Images
Reserve (Blue) Reserve (Blue) ● Effective range of remote control With infrared (IR) remote sensor in the front of the projector; The remote control must remain orthogonal angle of 30 degrees with the infrared remote control sensor, so that it will function normally; ... - Page 22 screen and wall, the size of the projection image will grow accordingly; Refer to the following table when installing the projector, so that the optimal size images are projected onto the screen. Projection screen size Screen The lens center This is the height from the lens center to projected image’s bottom.
-
Page 23: Methods Of Projection
Methods of projection Caution ● If the projector is installed in the ceiling, it shall be installed by qualified technical personnel with approved installation equipment. If not installed correctly, the projector may fall, thus leading to personal injury or accident. Please contact your dealer to properly install this projector. - Page 24 Don’t touch the vents and the air outlet which would be extremely hot when the projector is being used; Avoid placing plastic products or other heat sensitive items next to or below the projector to avoid the risk of deformation and discoloration; ...
- Page 25 shorten the lifespan of the light source unit; The air discharged from the air conditioner will blow the heat discharged from the projector lens, causing the heat wave in projection. If this case happens, please adjust the air from the air conditioner or move the projector; ...
-
Page 26: Basic Operations
Basic Operations Turn on and turn off the projector ● Notice for AC power Use AC power cord attached with the projector; Use AC power whose output voltage accords with the rated voltage of the projector; Don't share a power supply socket with other devices; ... - Page 27 1. Connect the projector and the power socket with attached AC power cord; 2. When power cord is inserted into the power socket, the power button at the top of the projector will become orange, which means the projector is powered on and bootable.
-
Page 28: Option Of Information Language
goes out, and then unplug the AC power cord from the outlet. Option of information language When the projector is turned on for the first time, the default language is Chinese. If you need to change the language, you will be subjected to the following steps (the operating steps of projector and remote control are consistent): 1. -
Page 29: Useage Of 3D Function
● Operation on the remote control: Press “Keystone+” ( ) or “Keystone” ( ) buttons to correct the keystone. ● Operation on the projector: 1. Press “Menu” button; 2. Press “▲” or “▼” button, select the “Picture setting” and press “Enter” button;... -
Page 30: Usage Of Setting Options
If you feel discomfort or the picture is without a 3D effect, you can operate with a remote control. Press “3D L/R” button to adjust ● Close the 3D function Press “3D” button with a remote control, select “2D”, and then press “Enter” button to close 3D or 2D TO 3D function. - Page 31 Ceiling projection Start picture Aspect ratio Blank picture Recovery menu defaults Signal name indicator Input setting Recovery menu defaults Eco mode Auto shutdown Machine setting 1 Language Recovery menu defaults Machine setting 2 Focusing Input signal Signal name Horizontal frequency Operation information Vertical frequency Scanning system...
-
Page 32: Maintenance
Maintenance The unit of light source If the light source point is off, you must contact your dealer or HOLATEK Indicator Definition description Power adapter is plugged for Orange starting up Power The projector is started and Blue available Temperature of projector is normal... -
Page 33: Indicator
Indicator Troubleshotting If there are any problems with the projector, please check the followings: ● Projector fails to boot up Cause Solution Plug one end of the AC power cord into the The power cord is not plugged power connector and the other end into an outlet ( if there is a switch, make sure it is on) ●... -
Page 34: Specifications
Pull out AC cord and wait for at least 10 minutes; Plug AC cord and turn on the power again. If the projector still fail in retuning normal, please send it to the dealer or HOLATEK authorized service centre. Specifications All specifications are subjected to change without notice... - Page 35 HOLATEK-A3 3D LED Smart Projector & TV (LED portable projector, recreational projector, household projector) ● Optical parameter Projection technology Digital Light Procession Projection Technology Displayed chip of Texas Instrument of America Lightness 1000 Lumen 2500:1 Contract ratio 2500:1 Recommen 1280*720...
- Page 36 Computer compatibility 480i，480p，576i，576p，720p,1080i,1080p Video compatibility NTSC，PAL，SECAM Loudspeaker 2W(double loudspeakers)*2 ● Android parameter Android V4.2 Dual-Core Mali400MP2 *2 1GB DDR3 Hard disk 8GB ROM Audio function Multichannel high-fidelity audio Ethernet RJ-45 Support 802.11b/g/n WLAN Support 802.11b/g/n Bluetooth Bluetooth TM v4.0 ● Interface parameter Power interface DC Jack（12V/5A）...
- Page 37 Service 400-662-0138 hotline Monday to Friday: 9:00-18:00 Company name: Holatek Science and Technology Development Co., Ltd Company address: Room 1001, Unit 4, Building B, Kexing Science Park, Keyuan Road, Central Area of High-tech Park, Nanshan District, Shenzhen City Disclaimer If the configuration of the projector is modified, the latest official configuration shall...
- Page 38 Proof of purchase date will be required with any warranty claim. In the event the product is found to be defective within the warranty period, HOLATEK will assume the obligation to replace any defective parts (labor cost included) for you. If any defects are found, to obtain warranty service, you shall immediately notify the dealer from whom you purchased the machine.
- Page 39 FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
