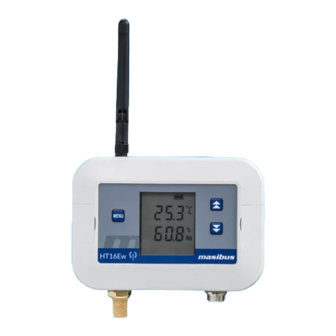

HT16Ew WIRELESS RH/T TRANSMITTER
DOC m94A-OM-201Issue No.
Customer Support: support@masibus.com Toll Free Number (India Only): 1 – 800 – ADD – CARE
Operator's manual
Page 1 of 26
User Manual
01
Copyright © 2018 Masibus Automation and Instrumentation Pvt Ltd.
(233 – 2273)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT16Ew and is the answer not in the manual?

Questions and answers

Related Manuals for Masibus HT16Ew

Summary of Contents for Masibus HT16Ew

  • Page 1 HT16Ew WIRELESS RH/T TRANSMITTER DOC m94A-OM-201Issue No. Copyright © 2018 Masibus Automation and Instrumentation Pvt Ltd. Customer Support: support@masibus.com Toll Free Number (India Only): 1 – 800 – ADD – CARE (233 – 2273) Operator’s manual Page 1 of 26...

  • Page 2: Table Of Contents

    CONTENTS (1). INTRODUCTION (2). FEATURES (3). APPLICATIONS (4). TECHNICAL SPECIFICATIONS (5). HT16Ew INTERNAL BLOCK DIAGRAM (6). HT16Ew APPLICATION DIAGRAM (7). HT16Ew MOUNTING 7.1 Installation with Back plate wall mount diagram: 7.2 Installation with wall mount bracket diagram: (8). HT16Ew Menu Operation Flowchart 8.1 Run mode description:...

  • Page 3: Introduction

    Transmitters to the logger/PC at set interval, Routers/Repeaters can be used to increase the network range. Model HT16Ew is designed as a low power device for battery operation and typically gives a battery life of 2 years while transmitting at 15 min intervals, the USB port gives the option of using with USB adaptor where mains power is available.

  • Page 4: Technical Specifications

    Ref. No: m94A/OM/201 Issue No: 01  Energy Management  Vehicle Monitoring (4).TECHNICAL SPECIFICATIONS MODEL HT16Ew Measuring Range: Temperature 0 to 60°C Measuring Range: Humidity 0 to 100% RH Resolution - Temperature 0.1°C Resolution - Humidity 0.1% RH Accuracy - Temperature ±0.3°C Typical, ±0.4°C Max...

  • Page 5: Ht16Ew Internal Block Diagram

    (5). HT16Ew INTERNAL BLOCK DIAGRAM LCD display LCD driver 3.3V Digital humidity & Micro Controller AA Li-Ion Temperature ZigBee battery or USB Sensor Real Time Clock (RTC) Data Flash HT16Ew UNIT Fig 1: Block Diagram of HT16Ew Operator’s manual Page 5 of 26...

  • Page 6: Ht16Ew Application Diagram

    Ref. No: m94A/OM/201 Issue No: 01 (6). HT16Ew APPLICATION DIAGRAM Operator’s manual Page 6 of 26...

  • Page 7: Ht16Ew Mounting

    Ref. No: m94A/OM/201 Issue No: 01 (7). HT16Ew MOUNTING 7.1 Installation with Back plate wall mount diagram: Operator’s manual Page 7 of 26...

  • Page 8: Installation With Wall Mount Bracket Diagram

    Ref. No: m94A/OM/201 Issue No: 01 7.2 Installation with wall mount bracket diagram: Operator’s manual Page 8 of 26...

  • Page 9: Ht16Ew Menu Operation Flowchart

    Ref. No: m94A/OM/201 Issue No: 01 (8). HT16Ew Menu Operation Flowchart Main Menu: Main menu is divided in main six categories: (1)disp(display parameters) (2) P.set(parameter set) (3)xbee(Xbee Radio menu) (4)excp(exception parameters) (5)cldr(calendar parameters) (6)mnts(maintance & special mode parameters) Operator’s manual...
  • Page 10 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 10 of 26...
  • Page 11 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 11 of 26...
  • Page 12 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 12 of 26...
  • Page 13 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 13 of 26...
  • Page 14 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 14 of 26...
  • Page 15 Ref. No: m94A/OM/201 Issue No: 01 Operator’s manual Page 15 of 26...

  • Page 16: Run Mode Description

    HT16Ew menu is password protected user can restricts unwanted access of unit with the help of password. When user press menu key during run mode password screen will appear. Factory default password value is 3131, User can further change new password in P.SET/c.pwd menu later on.

  • Page 17: Disp(Display Parameters Description)

    RSSI>70 dB is poor signal strength. Poor signal strength results in more power-usage & more packet loss. (5)SV Mode(software version): This mode display current firmware version of HT16Ew unit. 8.3 P . set(Parameter set)) : It let the user to configure parameters like password, display timer, push-timer, temp&...
  • Page 18 Push timer minute. User can set the PTMR minute value with INC key. Device will transmits frame at regular interval which is defined by PTMR value. At every hour HT16Ew transmits one communication frame to CDU/85xx+ irrespective of PTMR value. User can only configured PTMR value from below set: {1,5,10,15,30,60,120,180,240,360,480,720,1440,2880} this values are in minutes.

  • Page 19: Xbee(Xbeeradio Menu)

    If user will press “S.Y” (DCR Key) then it will reset maximum value to default. (10) usb.d USB configuration Mode: This mode is specially designed to configure device type of HT16Ew via USB configuring cable & mCRM Tool. Unit can be configured as either T+RH, T or RH.
  • Page 20 PAnZ value device will lock to Pan.Z value. Make sure enter PAN ID must match with PAN ID of CDU/85xx+ unit. In short if PAN ID doesn’t match then HT16Ew unit can not communicate with CDU/85xx+. After setting left most digit, on the press of MENU key, save Yes/ save No (S.Y/ S.n )screen will appear for saving new changed Pan.Z value.

  • Page 21: Excp(Exception Menu)

    Ref. No: m94A/OM/201 Issue No: 01 (6) LCHk (Link Check Timer) Mode: LCHk is for ensuring communication link between HT16Ew & CDU/85xx+ remains LCHk healthy. User can set the minute value with INC key. Device will transmits frame LCHk at regular interval which is defined by value.
  • Page 22 If user press DCR key in between, it will shows the main menu screen. (4) Lo9 oFF/on(Log Active Status) Mode: In case of communication break with CDU/85xx+, HT16Ew start logging data itself in flash memory. When communication re-established then HT16Ew transmits all log-data stored in flash memory.

  • Page 23: Cldr (Calendar Mode)

    8.6 cldr (Calendar Mode): At every frame transmission HT16Ew receives current time-stamp as acknowledgment from CDU/85xx+. HT16Ew will automatically locked to current time-stamp once it receives acknowledgment from CDU/85xx+.Using this mode end user can see current date and time of transmitter unit, end user also change the date and time of transmitter unit.
  • Page 24 Ref. No: m94A/OM/201 Issue No: 01 (4) HH(hour) Mode: This mode shows the current hour. End user also can change the hour for unit. On the press of INC key, screen will appear which will show the hour for current time .To change the date user first press MENU key, the first digit will blink.

  • Page 25: Battery Installation Guide

    Step-2 First of all remove HT16Ew unit from wall mount base by sliding it to upwards. After that remove all 6 base screws from unit &turn off switch no. 1 before applying new batteries.

  • Page 26: Communication

    In one network, all transmitters and one Logger unit should be configure with same PAN ID. CONTACT DETAIL OF SERVICE DEPARTMENT Masibus Automation & Instrumentation Pvt. Ltd. B/30, GIDC Electronics Estate, Sector-25, Gandhinagar-382044, Gujarat, India +91 79 23287275-79 +91 79 23287281-82 Email: support@masibus.com...
