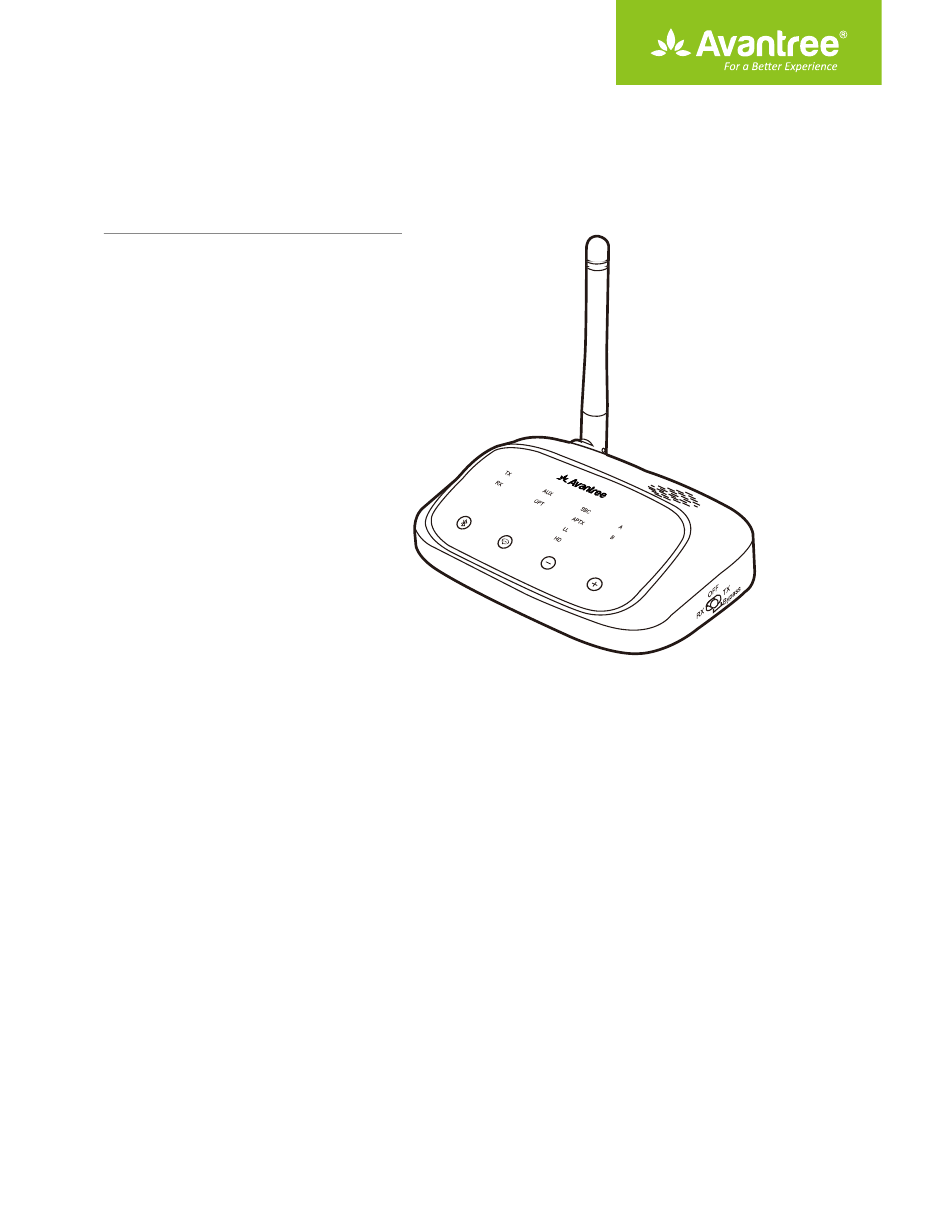

User Manual
Wireless Audio Transceiver
BTTC-500P (Oasis Plus)
Features ·································································································································
Package Contents ··· ··········································································································
Product Overview & Controls ····················································································
LED Indicators ····················································································································
Power up Oasis Plus ········································································································
Use as a Wireless Transmitter (TX mode) ·· ··························································
Use as a Wireless Receiver (RX mode) ·······························································
Using the Bypass Mode (Non-Bluetooth) ·· ·························································
How to use two Oasis Pluses as a pair ·································································
Restore to Factory Default Settings·······································································
Product Specifications ···································································································
···············································································································
···············
·····················································
1
1
1
3
3
4
8
9
10
11
11
12
12
12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avantree BTTC-500P Oasis Plus
Summary of Contents for Avantree BTTC-500P Oasis Plus
-
Page 1: Table Of Contents
User Manual Wireless Audio Transceiver BTTC-500P (Oasis Plus) Features ································································································································· Package Contents ··· ·········································································································· Product Overview & Controls ···················································································· LED Indicators ···················································································································· Power up Oasis Plus ········································································································ Use as a Wireless Transmitter (TX mode) ·· ·························································· Use as a Wireless Receiver (RX mode) ······························································· Using the Bypass Mode (Non-Bluetooth) ··... -
Page 2: Features
Features The Avantree Oasis Plus is a long range Bluetooth transmitter or receiver. Class 1 Bluetooth technology and an optimized antenna design allow it to work at ranges of up to 164ft/50M. Use the Oasis Plus as your home entertainment audio hub! As a Bluetooth transmitter to Bluetooth-enable your TV or AV receiver, to stream audio to your Bluetooth headphones or speakers. - Page 3 1- aptX-LL supported devices: Avantree Audition Pro，Torpedo Plus, Plantronics Backbeat Pro etc. 2- aptX-HD supported devices: Avantree AH6, Audio-Technica ATH-DSR9BT, LG G5, etc. For full list of suppprted devices please visit www.aptx.com - More status indicator, please refer to support.avantree.com search ‘Oasis Plus LED status’...
-
Page 4: Led Indicators
LED Indicators INDICATOR STATUS In transmitting mode Flashes alternating and WHITE to indicate Oasis Plus in pairing mode GREEN In receiving mode indicate Flashes alternating GREEN and WHITE to Oasis Plus pairing mode AUX input selected (when 3.5mm audio cable plugged in) Optical input selected (3.5mm audio input jack should be free) Oasis Plus is using the SBC codec APTX... -
Page 5: Use As A Wireless Transmitter (Tx Mode)
Use as a Wireless Transmitter (TX mode) 1. Pair and connect 1) Slide Mode switch to the "TX" position. 2) Slide LL/HD switch to “LL” or “HD priority” position，refer to “function & operation” table. 3) Pair the Oasis Plus with your Bluetooth audio device •... - Page 6 2. Set up your TV 1) Check your TVs output options before the set up RCA jacks Other RCA Optical Big Phone AUX/3.5mm labeled jacks (usually Jack "AUDIO OUT" audio IN) Jack Options Natively Supported? Please refer to Point: Output options 2) TVs with OPTICAL audio out Oasis Plus Micro USB power cable...
- Page 7 3) TVs with AUX 3.5mm audio out Set up Oasis Plus using AUX/3.5mm audio out Fig 3-5 Set TV speaker to “Headset" Now, you should be able to use the headphone. If no sound, please ensure your TV speaker is set to “Headset” 4) TVs with RCA Audio Out (Red/White ports labeled "AUDIO OUT ") Set up Oasis Plus using RCA audio out...
- Page 8 Now you should be able to use the headphones. If no sound: a. Make sure you’ve used the TV Red/White ports labeled “AUDIO OUT.” Other Red/White ports will NOT work. b. Ensure your TV speaker is set to “External Speaker” Use the correct RCA ports Set TV speaker t o”...
-
Page 9: Use As A Wireless Receiver (Rx Mode)
4:30 Settings Bluetooth Bluetooth Hold for 2s AirDrop, AirPlay, and location services require Bluetooth. • Activate Bluetooth on your phone/device and search for “Avantree Oasis Plus“ - tap to connect. 4:30 Settings Bluetooth Bluetooth Now discoverable as “iPhone(2)” MY DEVICES Bose Bluetooth Audio... -
Page 10: Using The Bypass Mode (Non-Bluetooth)
Using the Bypass Mode (Non-Bluetooth) Bypass mode means a direct cable connection. It connects your TV and your external wired soundbar or speakers directly. TV/Audio Source Oasis Plus Speakers RX Output TX Input OPTICAL OPTICAL DC IN It works under TX mode & OFF mode. Bypass Bypass In OFF mode, only Bypass works. -
Page 11: Pair And Connect To Two Devices Simultaneously (Dual-Link)
GREEN and WHITE. • Activate Bluetooth on your second device and search for “Avantree Oasis Plus“ - tap to connect. • Wait for devices to connect. When connected to two devices both LEDs A and B will be on. Note: Only one device can play music at a time. You must stop the music on one device to play on the other. -
Page 12: How To Use Two Oasis Pluses As A Pair
How to use two Oasis Plus as a pair? You can use two Oasis Plus as a pair. First, choose one as a Transmitter (TX unit) and the other as a receiver (RX unit). Note: Turn o other nearby Bluetooth devices to avoid unintentionally pairing to other devices. Speakers TX unit RX unit... -
Page 13: How Does The Ll/Hd Priority Feature Work
• Storage temperature: -20℃~60℃ • Product size: 114×75×30mm • Product weight: 90g • Input impedance: 4K • Input sensitivity: 1000mV • Output Impedance: 15K • Output sensitivity: 1000mV Troubleshooting You will find all FAQ for Oasis Plus from below link:- https://support.avantree.com/hc/en-us/sections/360000234803...
