Vertex Standard VAC-6010 Service Manual

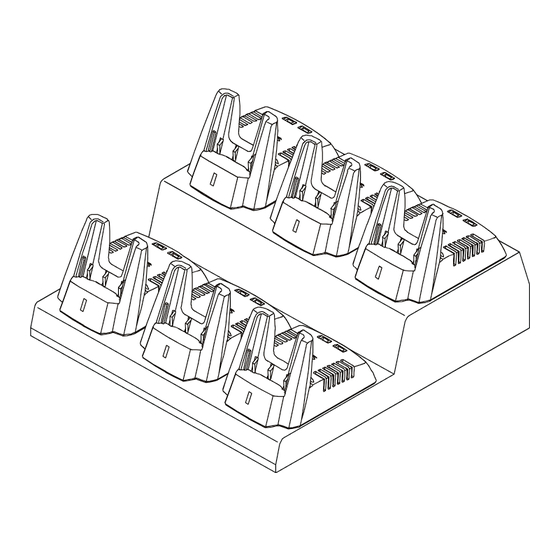

6-Unit Multi Charger
VAC-6010
Service Manual
©2008 VERTEX STANDARD CO., LTD. Printed in Japan.

Specifications

6-Unit Multi Charger :
Charging Current (approx): 1 A
Operating Temperature Range: +41 °F to +95 °F (+5 °C to +35 °C)
Case Size (W x H x D): 11.6" × 7.6" × 14.1" (294 × 193 × 358 mm)
Weight (approx.): 11.6 Ib (5.3 kg)
AC Adapter (PA-41):
Input Voltage: 100 - 240 VAC, 50 - 60 Hz
Output Voltage: 15 VDC
Output Current: 10 A
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD ( AUSTRALIA ) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
EAE75X90B
Notting Hill 3168, Victoria, Australia
Q7000558
PA-41
1
T9024482 (UL)
T9024584 (EU)
T9024685 (UK)
T9024786 (3C)
AC Code
