Safety advice
Assembly, connection and maintenance of the device may only be executed by personnel trained
accordingly. Use for the installation of the rollotimer a deep switch box. Please pay attention that no
cables are affecting the proper latching of the device. To prevent overvoltage and therewith a
malfunction, plug or unplug the operation panel only in de-energized state! For this purpose
disconnect the power supply of the electric circuit by switching off the corresponding fuse.
Technical Data
Power supply
Switching voltage
Switching contact load
Ambient temperature
Running time
Changeover delay
Accuracy
Power reserve
Protection class
Safety class
Conformity
Ref.-No. 941.DCZ3.00
230V / 50Hz
250 V AC
3 A (cos phi=1)
+5°C to +45°C
2,5 minutes (max.)
min. 0,5 seconds
< 5 seconds /day
approx. 4 hours
IP 20
II
CE

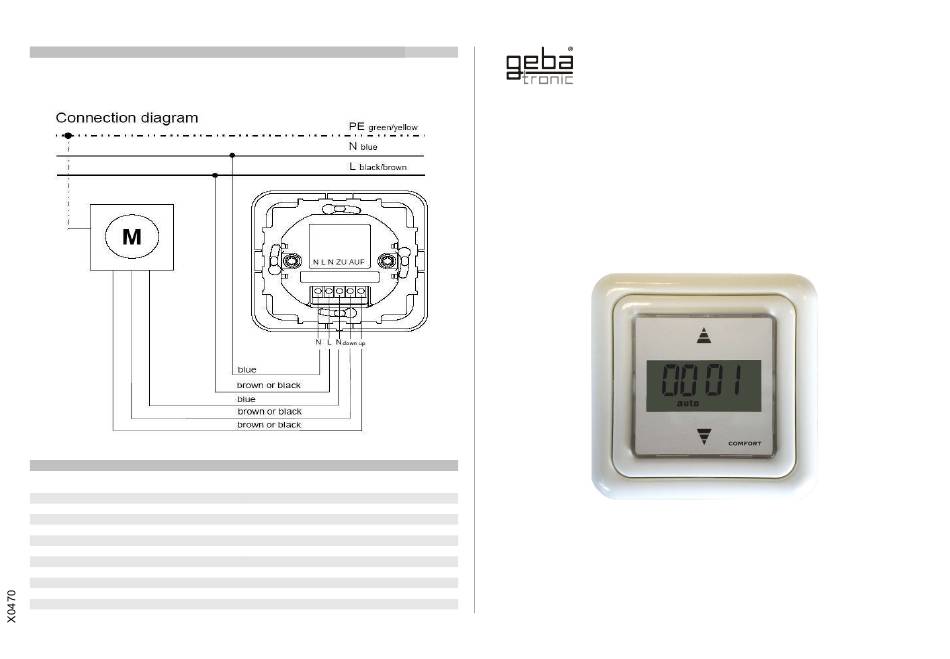

Installation and
operation manual
ROLLOTIMER Comfort
Ref.-No. 941.DCZ3.00
Advertisement
Table of Contents
Related Manuals for gebatronic 941.DCZ3.00
Summary of Contents for gebatronic 941.DCZ3.00
- Page 1 For this purpose disconnect the power supply of the electric circuit by switching off the corresponding fuse. Installation and operation manual ROLLOTIMER Comfort Ref.-No. 941.DCZ3.00 Technical Data Ref.-No. 941.DCZ3.00 Power supply 230V / 50Hz...
- Page 2 Note: setting of the values Programming of ROLLOTIMER Comfort - without S/D sensor The value which you want to set is selected by the DOWN button and is signaled by the flashing of 1. Enter programming mode Press ▲ (UP) and ▼ (DOWN) simultaneously the value.
- Page 3 Attachment of the Sun / Dusk sensors Programming of ROLLOTIMER Comfort - with S/D sensor 1. Enter programming mode Press ▲ (UP) and ▼ (DOWN) simultaneously for approx. 3 seconds. Remove the upper part together with the two frames of the ROLLOTIMER. 2.
