Summary of Contents for Molift QuickRaiser 205

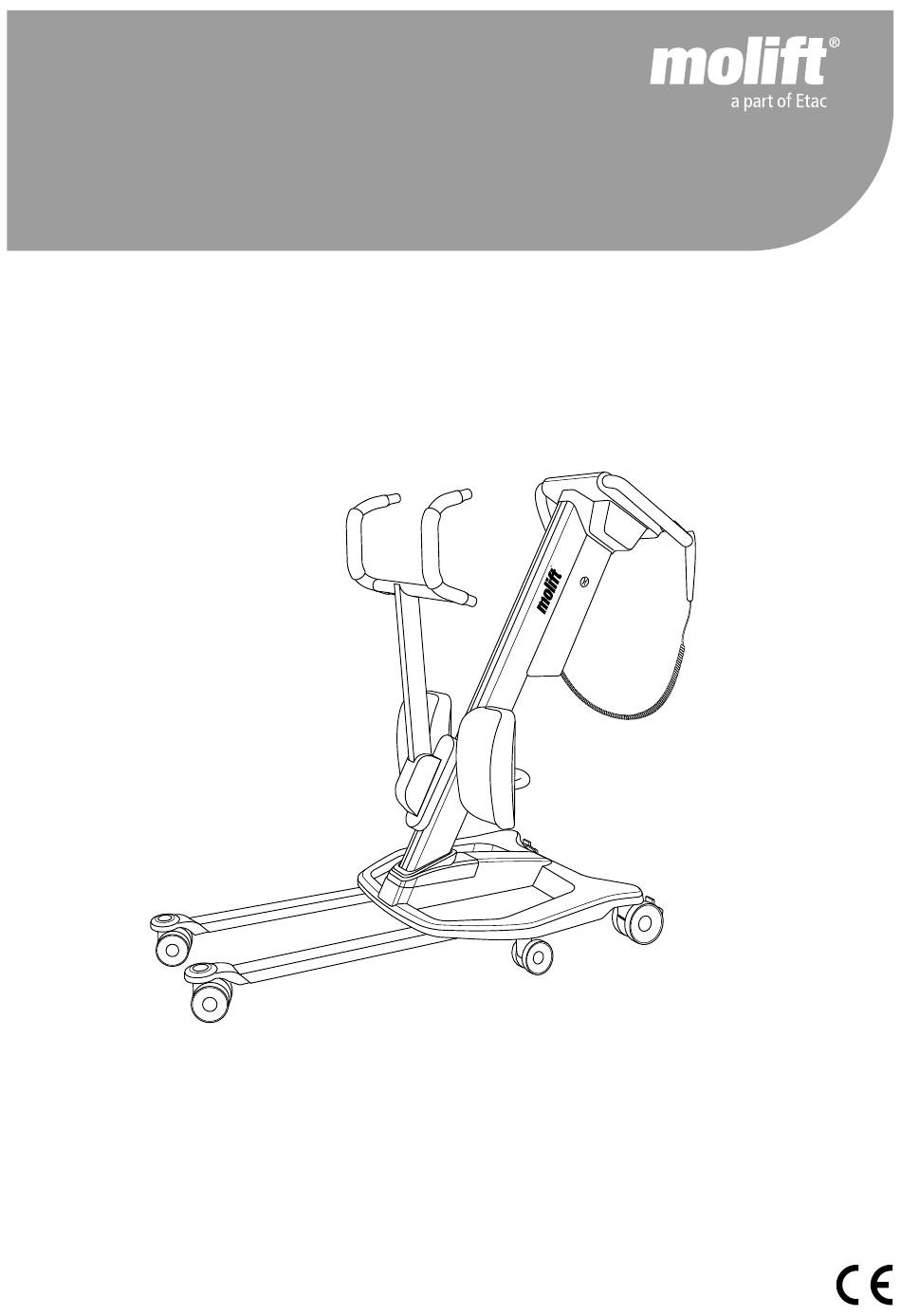

- Page 1 Molift QuickRaiser 205 EN - User manual BM13001 Rev. A 2017-01-17...
-
Page 2: Table Of Contents
Hand control ..........6 before attempting to use the Checklist after installation .......6 equipment. How to use Molift QuickRaiser 205 ....7 Before use / Daily check ......7 Download documentation at www.etac.com to Hand control ..........7 ensure you have the latest version. -
Page 3: Molift Quickraiser 205
Assembly tools: Allen key 17mm spanner About Molift QuickRaiser 205 Molift QuickRaiser 205 is a sit-to-stand mobile the hoist. It has electrically adjustable legs and lifter intended for raising and transferring a with a lifting capacity of 205 kg (451lbs). -
Page 4: General
General Declaration of conformity The Molift QuickRaiser 205 and related accessories described in this operator manual are CE marked in accordance with EU Council Directive 93/42/EEC concerning medical devices, class 1, and has been tested and approved by a third party according to standards IEC 60601-1, IEC 60601-1-2 and NS-EN ISO 10535:2006. -
Page 5: Technical Data
Molift QuickRaiser 205 / www.etac.com Technical Data QuickRaiser 205 Safe Working Load (SWL): 205 kg (451 lbs) Weight of unit: Total weight of unit: 44,5 kg/98 lbs Chassis: 17 kg/37,5 lbs Lifting column: 19 kg/41,9 lbs Leg support: 3,5 kg/7,7 lbs... -
Page 6: Assembly
Molift QuickRaiser 205 / www.etac.com Assembly Leg support Only trained personell shall assem- ble the lifter All screws with pre applied threadlock must only be used once. Mount the leg support bracket. Make sure the Push in the emergency stop button turning knob is mounted in the correct direction. -
Page 7: Lifting Arm
Molift QuickRaiser 205 / www.etac.com Hand control Turn the lifter over on the side. Tighten the second screw from the chassis into the column and con- nect cable betwen column and chassis. Screws will ensure that the column cannot be pulled upwards. Do not use lifter unless both screws are securely fastened. -
Page 8: How To Use Molift Quickraiser 205
Working pause ratio/Duty Cycle. support unit, then the lowest maxi- mum load shall always be used Molift QuickRaiser 205 should not be run con- stantly for more than 2 minutes (with maximum Molift lifters shall only be used to lift load), and rest for minimum 18 minutes. -
Page 9: Safety Devices
Molift QuickRaiser 205 / www.etac.com Safety devices Molift QuickRaiser 205 is equipped with several safety devices, which are intended to prevent injury to personnel or damage to the equipment in the case of incorrect use or failure The lifter has an overload sensor preventing the lifter to be operated if the load exceeds SWL. -
Page 10: Electronics
Green 80 - 60% Battery Green 60 - 40% Molift QuickRaiser 205 is available with a 24V SLA battery and has an integrated charger. The battery Green 40 - 20% has a life expectancy of approx. 500 charge cycles. Batteries must be disposed of as... -
Page 11: Charging
Molift QuickRaiser 205 / www.etac.com Charging Integrated Battery Charger Mains cable (disconnecting device) The lifter has an integrated charger. Park the lifter and connect to a wall socket to charge the bat- tery. Lights on battery will be red while charging. -
Page 12: Transfer
90˚ Slings made by other manufacturers 90˚ Only use Molift slings. Etac shall not be liable for faults or accidents that can occur when using slings made by other manufacturers. Adjusting leg support Move the QuickRaiser 205 in front of the user. -
Page 13: Using A 4-Point Lifting Arm
Molift QuickRaiser 205 / www.etac.com Using a 4-point suspension Using a 2-point suspension Fasten the sling to the lifting arm by guiding the strap into all 4 hooks. On the 2-point suspension arm the ropes is attached to the lifting arm by pulling them firmly from above and into the rope locks. -
Page 14: Raising
Molift QuickRaiser 205 / www.etac.com Raising/Lowering Transfer When moving the user, stand to the side of the Raise the patient carefully until the buttocks are person you are lifting. Make sure that arms and clear from the seating and tighten the belt. Unlock legs do not obstruct the seat, bed, etc. -
Page 15: Accessories
Molift QuickRaiser 205 / www.etac.com Accessories (Recommended) optional equipment and acces- sories for Molift QuickRaiser 205. Accessories Rgosling Active Art. no.: 1720910 Size XS Extension for power cord Art. no.: 1720920 Size S Art. no.: 2920117 Art. no.: 1720930 Size M Art. -
Page 16: Maintenance
When performing a periodic inspection, the inspector shall fill out the inspection report for Periodic inspection is a visual examination (particu- Molift QuickRaiser 205. The reports should be larly of the lifter’s load bearing structure and lifting retained by the person(s) responsible for servicing mechanism with attachments, brakes, controls, the lifter. -
Page 17: Troubleshooting
Molift QuickRaiser 205 / www.etac.com Troubleshooting Symptom Possible Cause/Action The lifting column is wobbly Locking bolts are not properly secured or lifting column is not properly in place in the chassis / check if the column is correctly placed in the chas-... - Page 20 Etac AS Etac Supply Gjøvik Hadelandsveien 2, 2816 Gjøvik, Norway Tel +47 4000 1004 molift@etac.com www.molift.com...
