OPERATING & SERVICE PARTS MANUAL
Model 107A
Model 112A
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT
FLOOR MODEL OVERWRAPPERS
AXLE MOUNT MODELS:

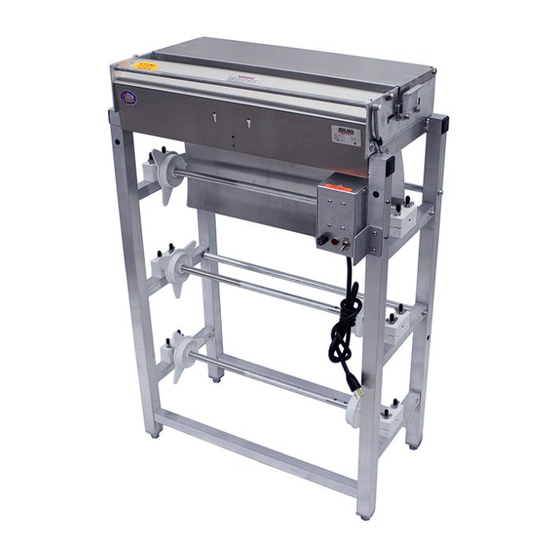

MODEL 102A
TWO ROLL CAPACITY WITH MOUNTING AXLES
SPLASH SHIELD AND 6" X 15" HOT PLATE
MODEL 104A
THREE ROLL CAPACITY WITH MOUNTING AXLES
AND 8" X 15" HOT PLATE
MODEL 107A
THREE ROLL CAPACITY WITH MOUNTING AXLES
SPLASH SHIELD AND 8" X 15" HOT PLATE
MODEL 112A
COMPACT THREE ROLL CAPACITY
MOUNTING AXLES AND PACKAGE REST
MODEL 112AHP
COMPACT THREE ROLL CAPACITY
MOUNTING AXLES AND 6" X 15" HOT PLATE
Revised 2014
Advertisement
Related Manuals for HeatSeal 102A
Summary of Contents for HeatSeal 102A
- Page 1 OPERATING & SERVICE PARTS MANUAL FLOOR MODEL OVERWRAPPERS AXLE MOUNT MODELS: MODEL 102A TWO ROLL CAPACITY WITH MOUNTING AXLES SPLASH SHIELD AND 6” X 15” HOT PLATE MODEL 104A THREE ROLL CAPACITY WITH MOUNTING AXLES AND 8” X 15” HOT PLATE...
- Page 2 TABLE OF CONTENTS Film Threading & Mounting ..................3 102-104-107A Schematic & Parts List ................5 112A & 112AHP Schematic & Parts List ............... 6 Electrical Service Information ..................7 Electrical Schematics ....................8 Electrical Box & Hot Plate Schematic & Parts List ............. 9 Revised 2014...
- Page 3 THREADING THE FILM: FILM SELECTOR Thread the film as shown, one at a time or as needed. Pull different sized films into film selector and drape unused film MODEL 102A MODEL 107A in front of roller. TO CHANGE FILM WIDTHS:...
- Page 4 MODEL 102/104/107A REPLACEMENT PARTS TO REMOVE ELECTRICAL BOX: Lift up wrapping bridge (A) Remove screws (B) from both sides of electrical control hous- ing (C) Lift out electrical control housing ITEM PART # DESCRIPTION 6101-020 6” x 15” Hot Plate Assembly 5901-011 6”...
- Page 5 MODEL 112A/112AHP REPLACEMENT PARTS ITEM PART # DESCRIPTION 6107-020 Hot Plate Assembly Kit 6101-020 6” x 15” Hot Plate Assembly 6106-017 Package Rest Assy. 6106-085 Mounting Bracket 6106-086 Package Rest 6106-031 Wrapping Bridge 6106-081 Control Housing 6106-089 Control Housing Cover 1818-001 Control Board 1821-034...
-
Page 6: Electrical Service Information
ELECTRICAL SERVICE INFORMATION ELECTRICAL REQUIREMENTS All Models are 110 Volts, 10 Amps. HOT ROD CIRCUIT BOARD TEST A standard 115 volt neon circuit tester can be used for these tests. CHECKING FUSES Remove the fuse from their housing units located on the front of the electrical box. If a visual inspection does not verify a blown fuse check for continuity by using the meter to read across the two terminals of the fuse. -
Page 7: Electrical Diagrams
ELECTRICAL DIAGRAMS FOR MODELS 102A, 104A, 107A FOR MODEL 112A FOR MODEL 112AHP Revised 2014... - Page 8 ELECTRICAL BOX & HOT PLATE PARTS TO SERVICE ELECTRICAL PARTS ON ELECTRICAL BOX: Lift up the wrapping bridge, then remove the screws holding the electrical control housing to the base. Lift out and replace parts. ELECTRICAL BOX REPLACEMENT PARTS ITEM PART # DESCRIPTION 1818-001 Circuit Board...
