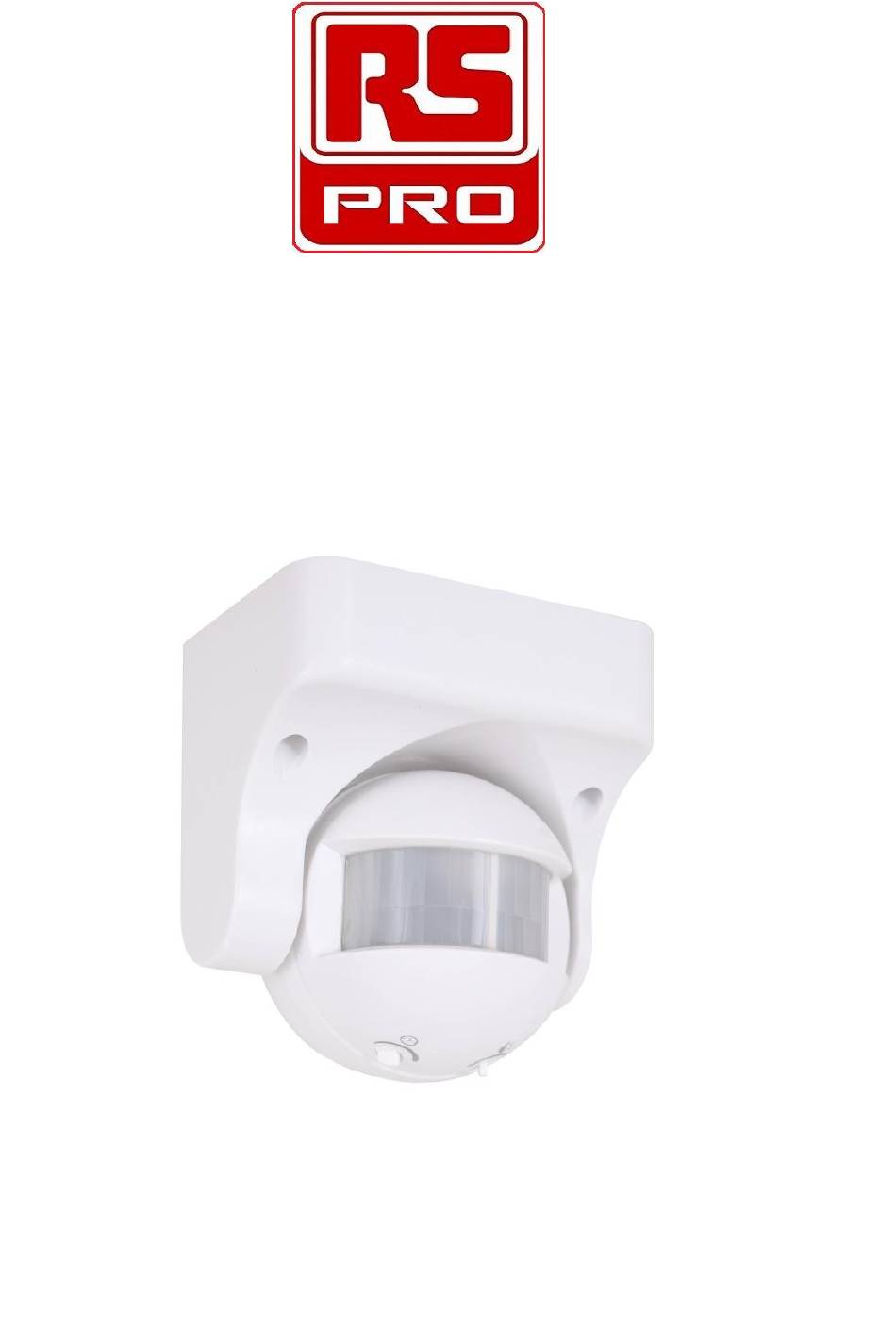

- Page 1 Instruction Manual Motion Sensor (791-8260)
- Page 2 Main Construction Data: Power Time setting Time setting Type Power Source freque Remark Light-control: <3LUX~daylight (adjustable) ±3sec ±2min 7918260 220~240VAC 50Hz 8sec 7min Detection range: 12m Max(<24°C) Detection angle: 180° Working temperature: -10°C~+40°C Working humidity: <93%RH Installation height: 0.5m~3.5m Installation height: 0.5m~3.5m Power consumption: 0.45W (static 0.1W) Summary This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit...
- Page 3 12m Correct moving orientation 180°/140°Detection angle Connection-wire diagram 1 red 2 blue 3 brown 4 earthing Connect 2 and 3 with power; Connect 2 and 1 with load. NOTE: The fuse in the figure is 6.3A and it should have VDE certification! Installation 1.
- Page 4 Test Turn the light-control knob clockwise to the maximum (SUN), turn time knob anti-clockwise to the minimum; Switch on power, the controlled load should not work, under the no induction signal condition, the load should stop work within 5-30sec; Make it sense again 5-10sec later since the first is out, the load should work, the load should stop working within 5-20sec;...
- Page 5 a: Please check if there has hinder in front of the detection window to effect to receive the signal; b: Please check if the ambient temperature is too high; c: Please check if the induction signal source is in the detection fields; d: Please check if the installation height corresponds to the height showed in the instruction;...
