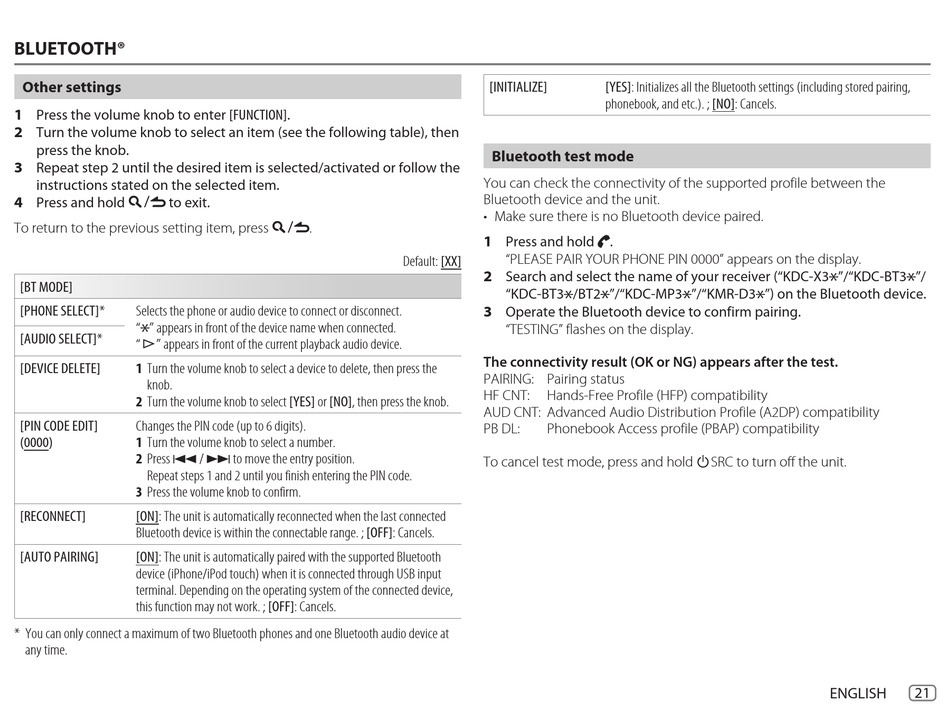

Bluetooth Test Mode - Kenwood KDC-X303 Instruction Manual

BLUETOOTH®
Other settings
1
Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then
press the knob.
3
Repeat step 2 until the desired item is selected/activated or follow the
instructions stated on the selected item.
4
Press and hold
To return to the previous setting item, press
[BT MODE]
[PHONE SELECT]* Selects the phone or audio device to connect or disconnect.
" " appears in front of the device name when connected.
[AUDIO SELECT]*
" " appears in front of the current playback audio device.
[DEVICE DELETE] 1 Turn the volume knob to select a device to delete, then press the
knob.
2 Turn the volume knob to select [YES] or [NO], then press the knob.
[PIN CODE EDIT] Changes the PIN code (up to 6 digits).
(0000) 1 Turn the volume knob to select a number.
2 Press S / T to move the entry position.
Repeat steps 1 and 2 until you finish entering the PIN code.
3 Press the volume knob to confirm.
[RECONNECT] [ON]: The unit is automatically reconnected when the last connected
Bluetooth device is within the connectable range. ; [OFF]: Cancels.
[AUTO PAIRING] [ON]: The unit is automatically paired with the supported Bluetooth
device (iPhone/iPod touch) when it is connected through USB input
terminal. Depending on the operating system of the connected device,
this function may not work. ; [OFF]: Cancels.
* You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at
any time.
JS_KWD_KDC_X303_KN_EN_6th.indd 21
to exit.
.
[INITIALIZE]

Bluetooth test mode

You can check the connectivity of the supported profile between the
Bluetooth device and the unit.
• Make sure there is no Bluetooth device paired.
1
Press and hold
"PLEASE PAIR YOUR PHONE PIN 0000" appears on the display.
Default: [XX]
2
Search and select the name of your receiver ("KDC-X3 "/"KDC-BT3 "/
"KDC-BT3 /BT2 "/"KDC-MP3 "/"KMR-D3 ") on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.
"TESTING" flashes on the display.
The connectivity result (OK or NG) appears after the test.
PAIRING: Pairing status
HF CNT: Hands-Free Profile (HFP) compatibility
AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility
PB DL: Phonebook Access profile (PBAP) compatibility
To cancel test mode, press and hold B SRC to turn off the unit.
[YES]: Initializes all the Bluetooth settings (including stored pairing,
phonebook, and etc.). ; [NO]: Cancels.
.
21
ENGLISH
4/6/2018 11:26:42 AM
