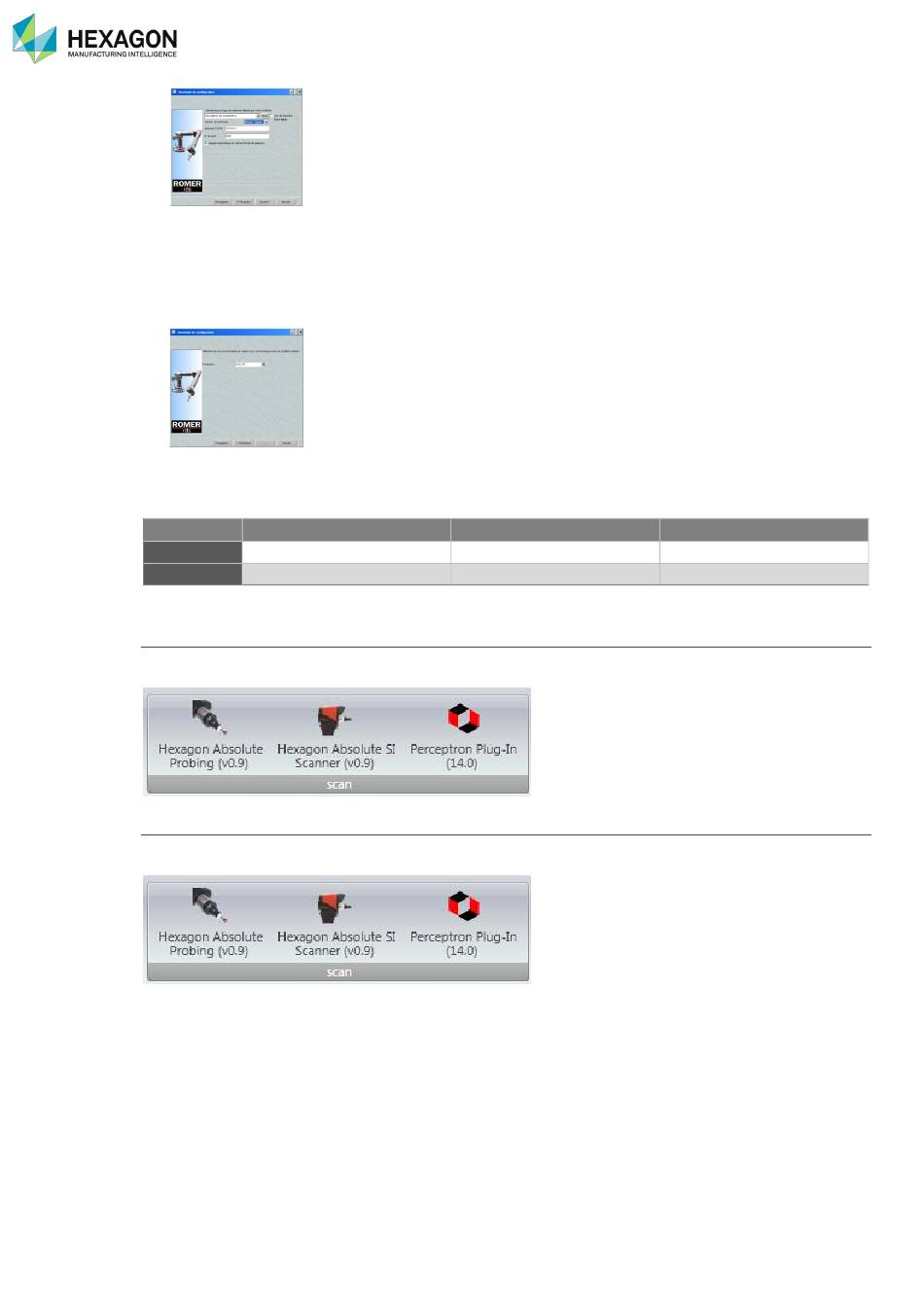

M.1.13 Geomagic - Hexagon RDS User Manual

4. On same window, for Protocol version, choose "ROMER RDS".
5. Tick "Automatically recall last probes file" then click on "Next".
6. Finish the configuration by clicking on "Save"

M.1.13 GEOMAGIC

Short
Long
Configuration for probing or HEXAGON
After Geomagic installation, install "Absolute Probing" and "Absolute Scanning" plug-ins
In Qualify or Studio, «material" tab, select "Hexagon Absolute Probing" or "Hexagon Absolute Scanning"
Configuration for Perceptron
After Geomagic installation, run "Perceptron SetUp.exe" plug-ins installation.
In Qualify or Studio, «material" tab, select "Perceptron Plug-ins:
Trigger button
Hit Pt. / Scan
3State button - Left
®
scanners
H000002007-RDS User Manual │
Appendix
3State button - Right
Validate / OK
│198
Version 5.0.0 (2018-09-17)
